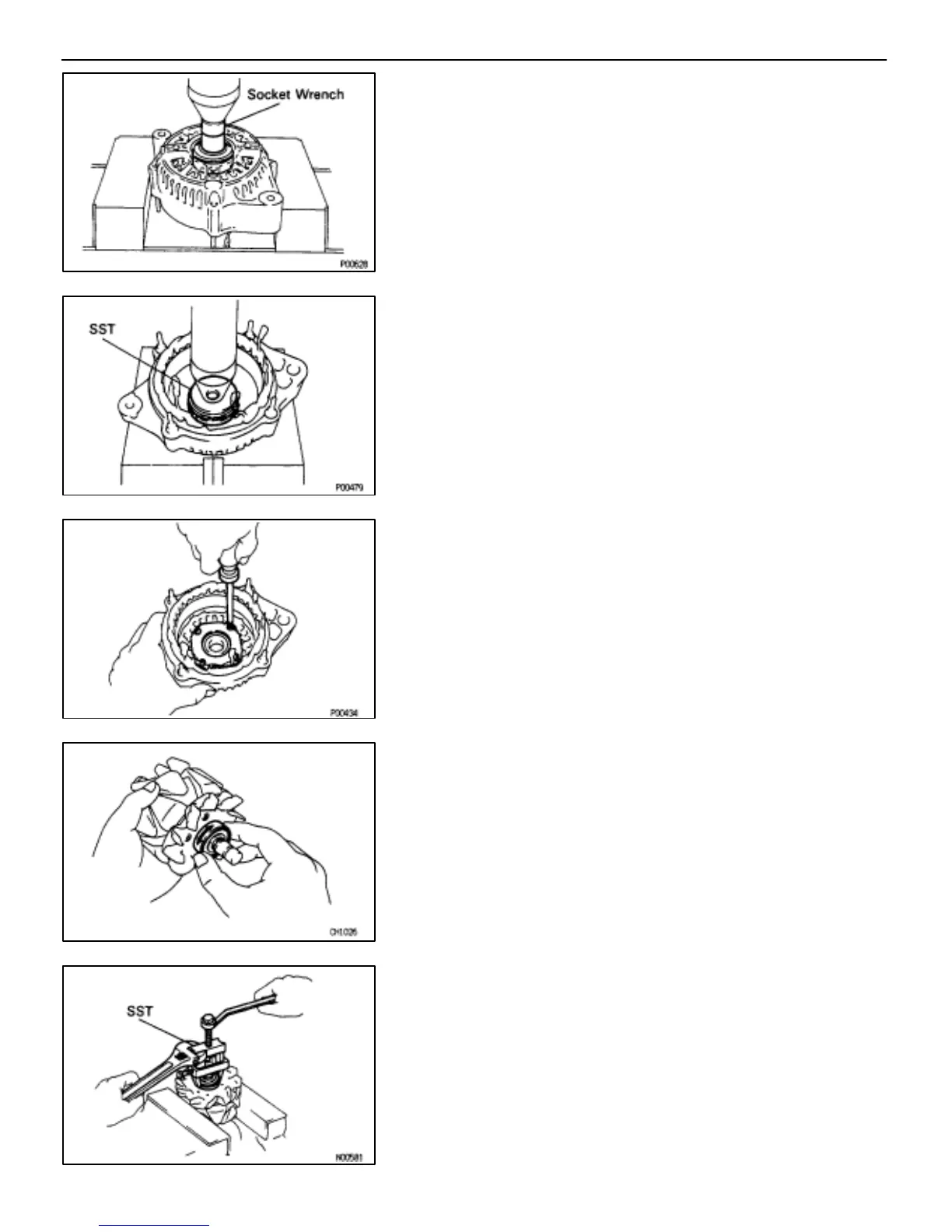

(b) Using a socket wrench and press, press out the bearing.
(c) Using SST and a press, press in a new bearing.
SST 09608–20012(09608–00030)
(d) Install the bearing retainer with the four screws.
3. INSPECT REAR BEARING
Check that the bearing is not rough or worn.
4. IF NECESSARY, REPLACE REAR BEARING
(a) Using SST, remove the bearing covers and bearing.
SST 09820–00021
NOTICE: Be careful not to damage the fan.
(b) Place the bearing cover on the rotor.
CH–16
–CHARGING SYSTEM GENERATOR
To Next Page
