CIRCUIT OPENING RELAY INSPECTION
EG0HN–01

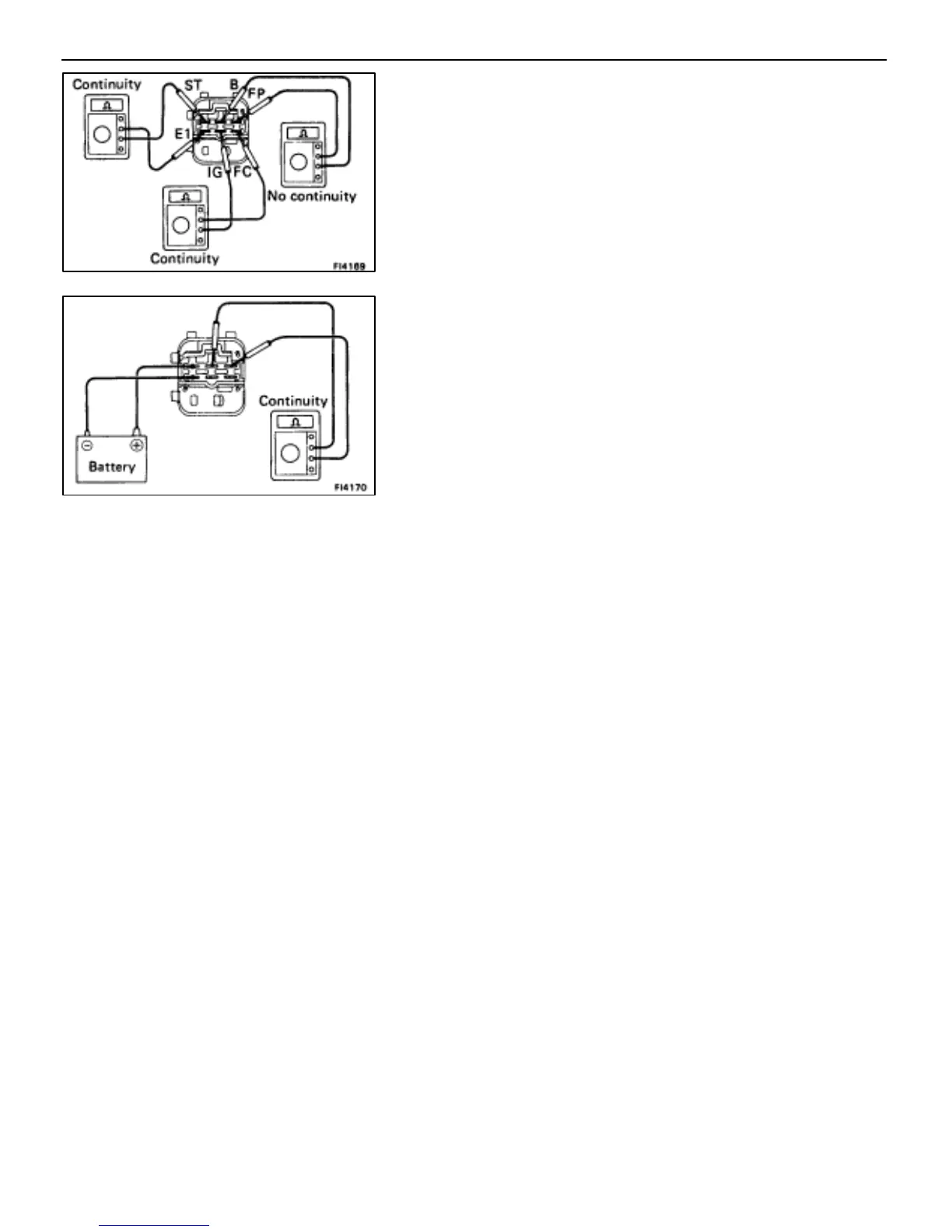

1. INSPECT RELAY CONTINUITY
(a) Using an ohmmeter, check that there is continuity between
terminals ST and E1.
(b) Check that there is continuity between terminals IG and FC.
(c) Check that there is no continuity between terminals B and FP.
If continuity is not as specified, replace the relay.
2. INSPECT RELAY OPERATION
(a) Apply battery voltage across terminals ST and E1.
(b) Using an ohmmeter, check that there is continuity between
terminals B and FP.
If operation is not as specified, replace the relay.
EG–222
–ENGINE TROUBLESHOOTING SFI SYSTEM
