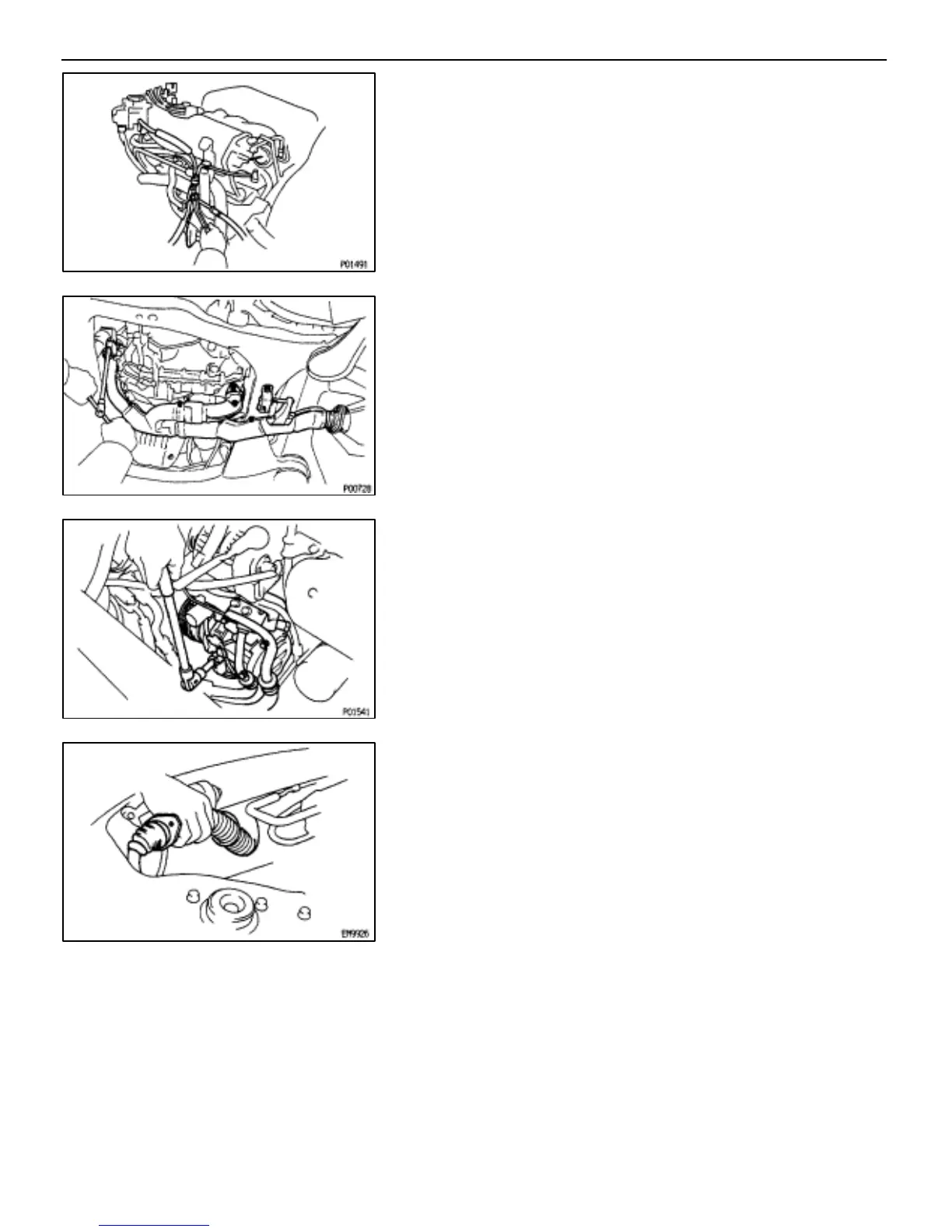

15. CONNECT PS ACV
(a) Connect the PS ACV with the nut.
(b) Connect the two PS air hoses.
16. INSTALL FRONT EXHAUST PIPE
(a) Place three new gaskets on the front exhaust pipe.
(b) Install the front exhaust pipe with the bolts and six nuts.
Torque the nuts.
To manifold
Torque: 62 N⋅m (630 kgf⋅cm, 46 ft⋅lbf)
To three–way catalytic converter
Torque: 43 N⋅m (440 kgf⋅cm, 32 ft⋅lbf)
(c) Connect the bracket with the two bolts.
17. INSTALL A/C COMPRESSOR
(a) Install the compressor, compressor stay with the five bolts.
To generator bracket
Torque: 20 N⋅m (200 kgf⋅cm, 14 ft⋅lbf)
To cylinder block
Torque: 27 N⋅m (280 kgf⋅cm, 20 ft⋅lbf)
(b) Install the drive belt.
(c) Connect the A/C compressor connector.
18. CONNECT ENGINE WIRE TO CABIN
(a) Push in the engine wire through the cowl panel. Install the two
nuts.
(b) Connect the following connectors:
(1) Three engine control module (ECM) connectors
(2) Five cowl wire connectors
(3) Cooling fan ECU connector
(c) Install the glove compartment.
(d) Install the glove compartment door.
(e) Install the lower instrument panel.
(f) Install the under cover.
EG–132
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
