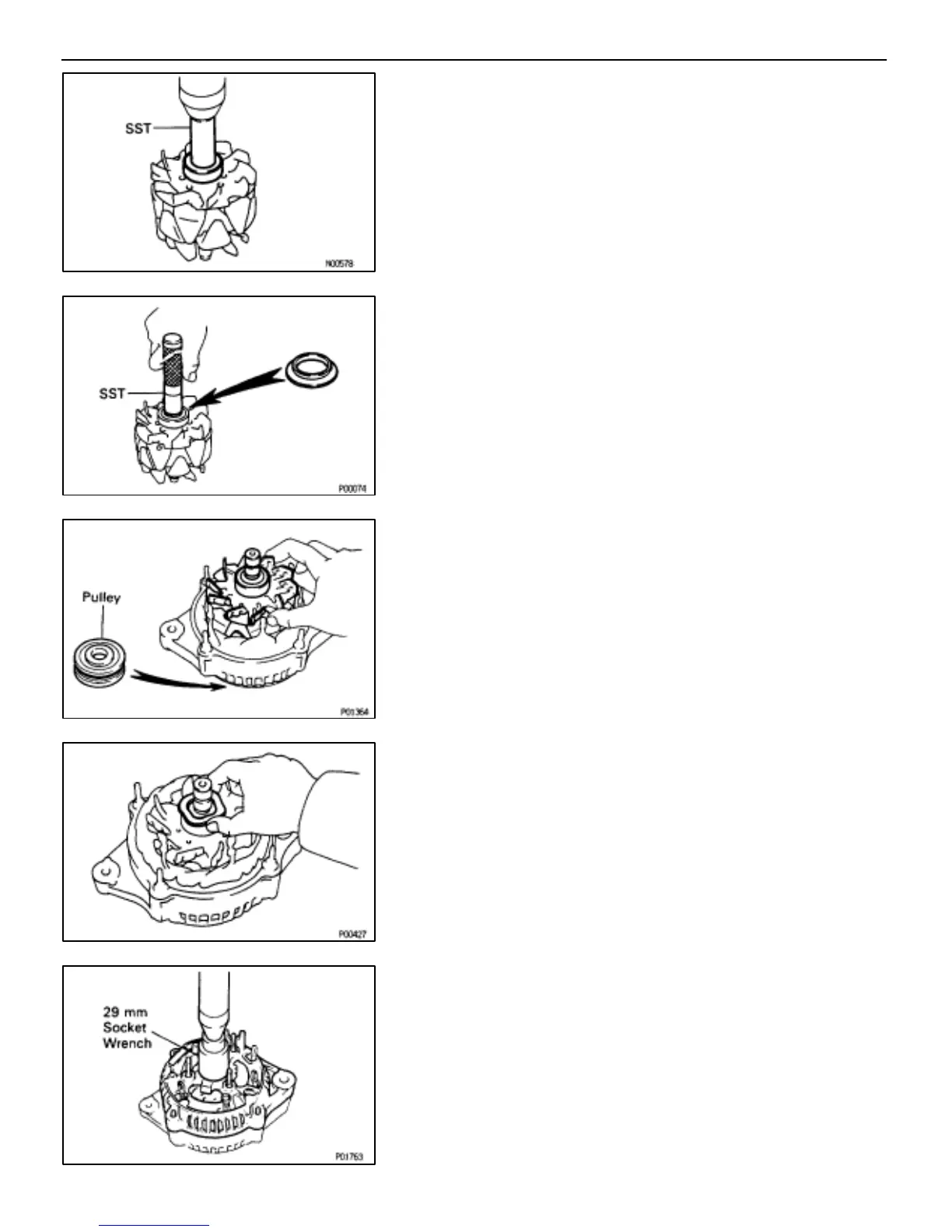

(c) Using SST and a press, press in a new bearing.
SST 09820–00030
(d) Using SST, push in the bearing cover.
SST 09285–76010
GENERATOR ASSEMBLY
CH017–02
(See page CH–10)
1. INSTALL ROTOR TO DRIVE END FRAME
(a) Place the rectifier end frame on the pulley.
(b) Install the rotor to the rectifier end frame.
2. INSTALL RECTIFIER END FRAME
(a) Place the thrust washer on the rotor.
(b) Using a 29 mm socket wrench and press, slowly press in the
rectifier end frame.
–CHARGING SYSTEM GENERATOR
CH–17
