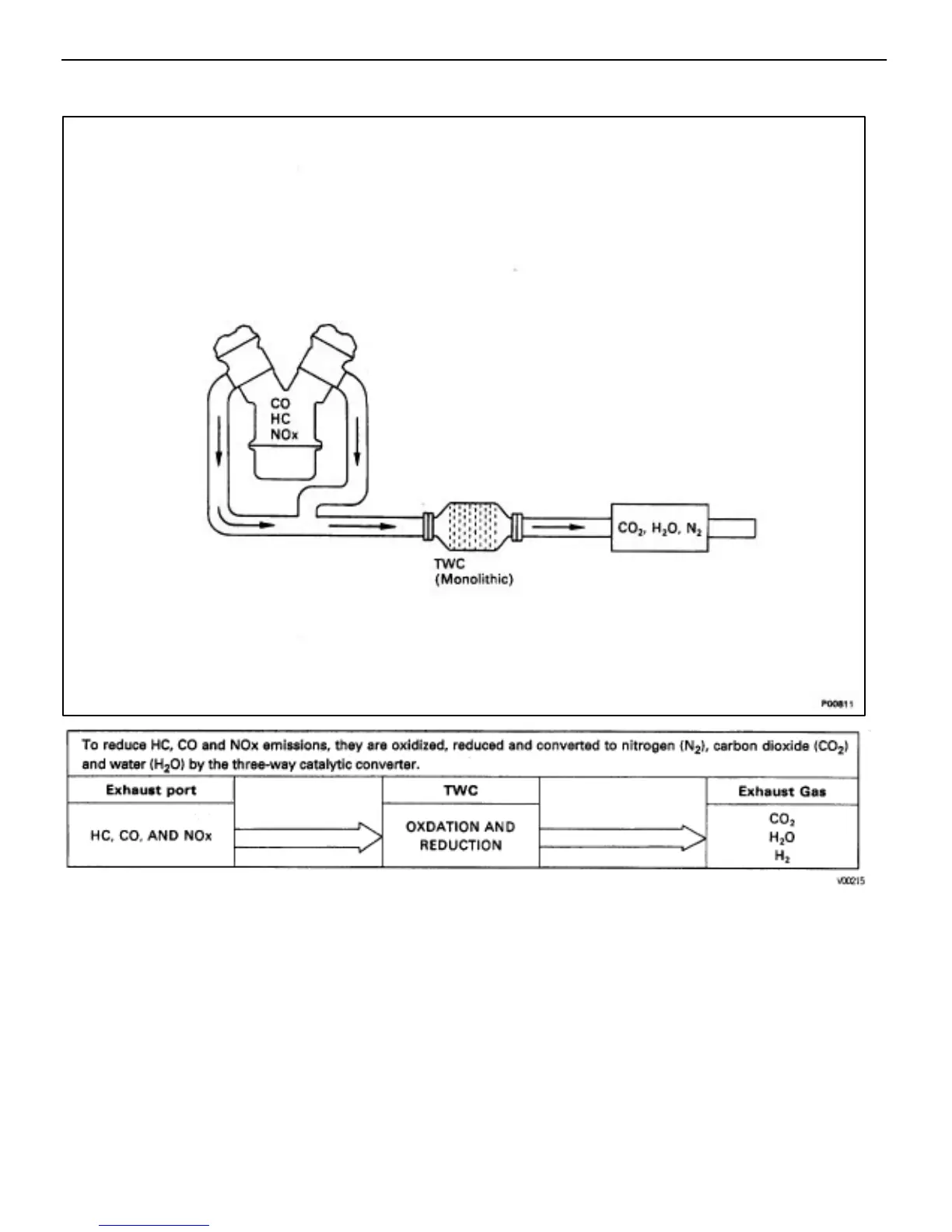

THREE–WAY CATALYTIC CONVERTER (TWC) SYSTEM

EG08U–01

EXHAUST PIPE ASSEMBLY INSPECTION

EG08V–01

1. CHECK CONNECTIONS FOR LOOSENESS OR DAMAGE

2. CHECK CLAMPS FOR WEAKNESS, CRACKS OR

DAMAGE

–ENGINE TROUBLESHOOTING EMISSION CONTROL SYSTEMS

EG–155
