EGR GAS TEMPERATURE SENSOR
(CALIFORNIA ONLY)
EGOHV–01
EGR GAS TEMPERATURE SENSOR
INSPECTION
EG0HW–01

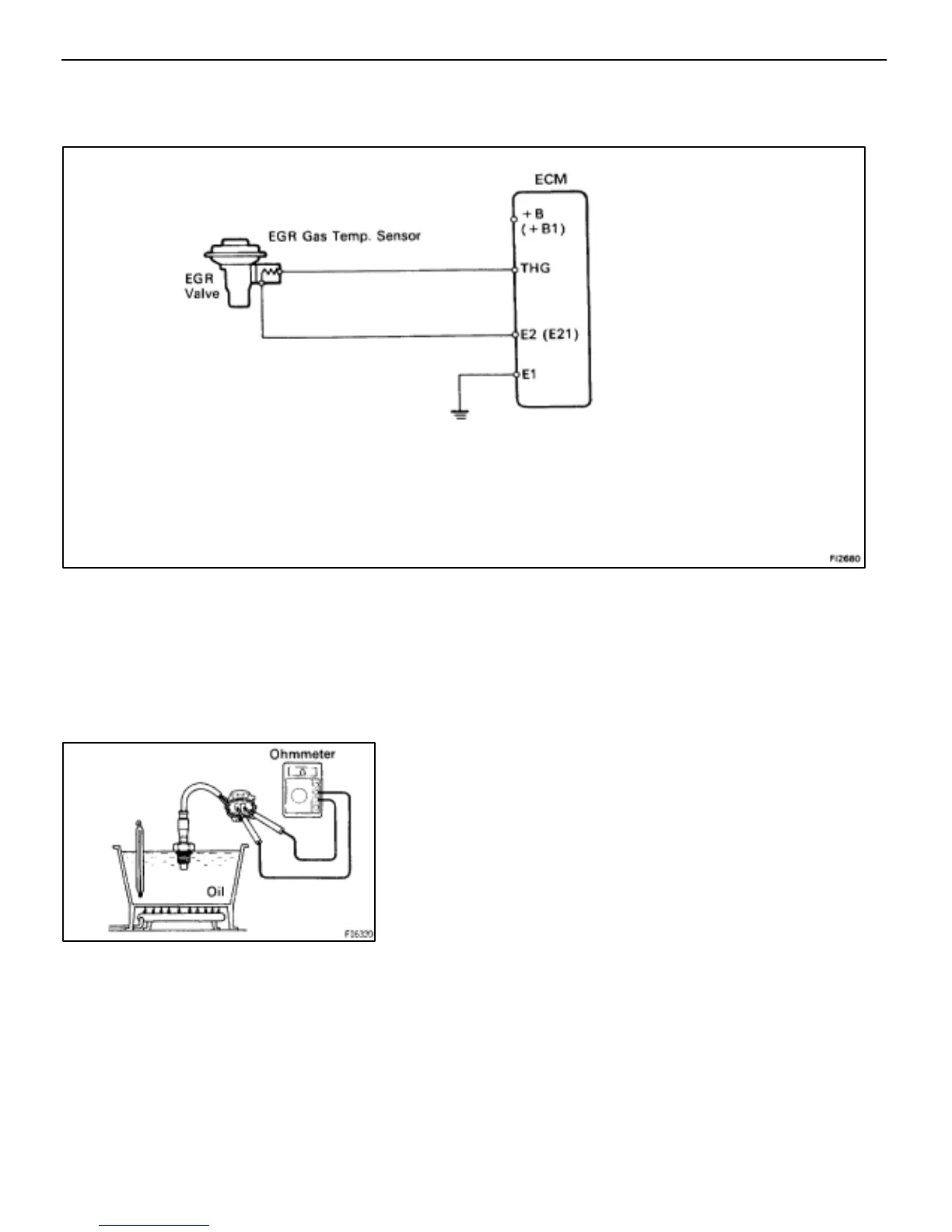

INSPECT EGR GAS TEMPERATURE SENSOR
Using an ohmmeter, measure the resistance between the ter-
minals.
Resistance:
69–89 k at 50°C (112°F)
11 –15 k at 100C (212F)
2 – 4 K k at 150 C (302F)
If the resistance is not as specified, replace the sensor.
–ENGINE TROUBLESHOOTING SFI SYSTEM
EG–227
