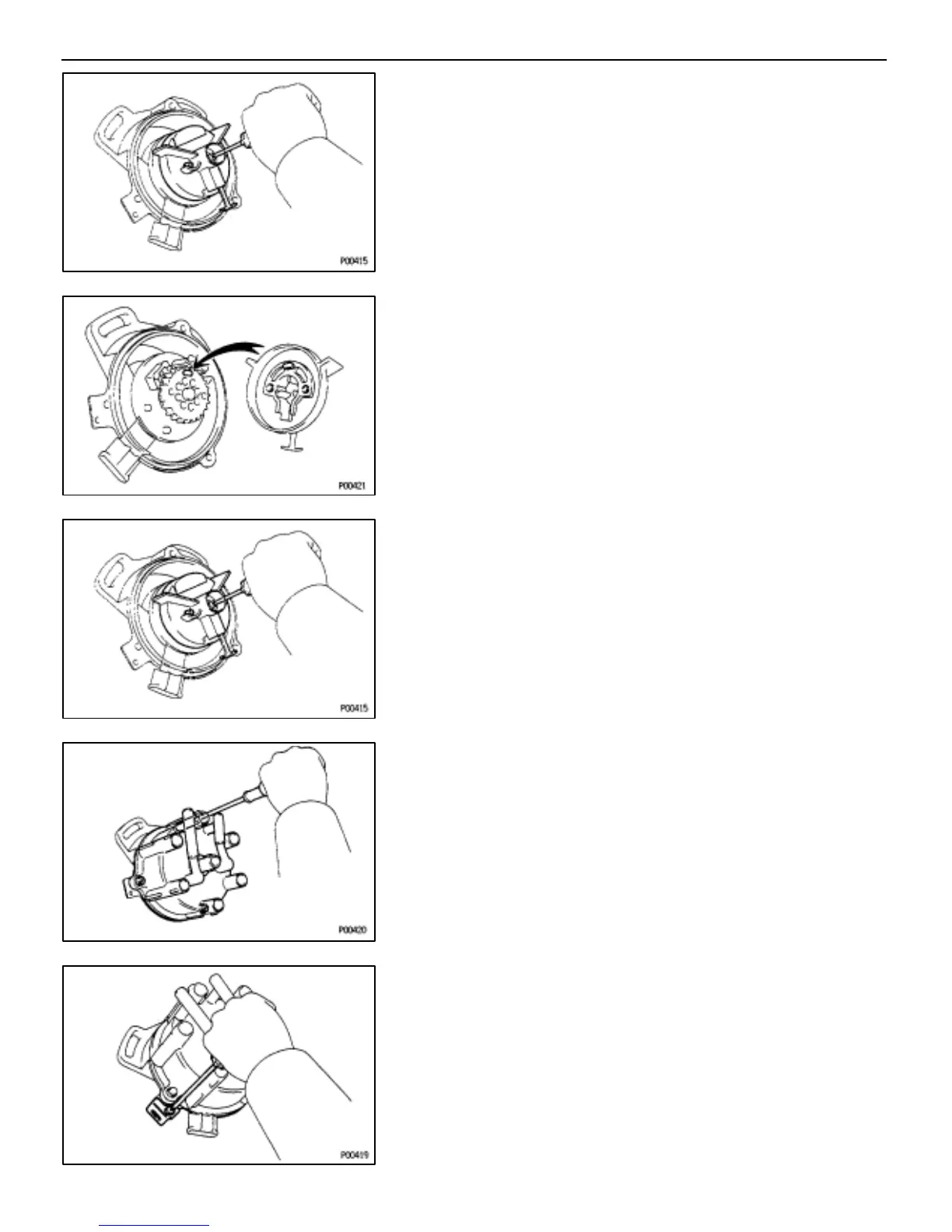

3. REMOVE ROTOR
Remove the two screws and rotor.
DISTRIBUTOR ASSEMBLY
IG01M–02
(See page IG–15)
1. INSTALL ROTOR
(a) Align the hollow of the signal rotor with the protrusion of the
rotor.
(b) Install the rotor with the two screws.
2. INSTALL DISTRIBUTOR CAP
Install the distributor cap with the three screws.
3. INSTALL WIRE HARNESS CLAMP CLIP
Install the clip with the screw.
IG–16
–IGNITION SYSTEM DISTRIBUTOR
