THERMOSTAT INSTALLATION
EG09Z–01
(See page EG–250)

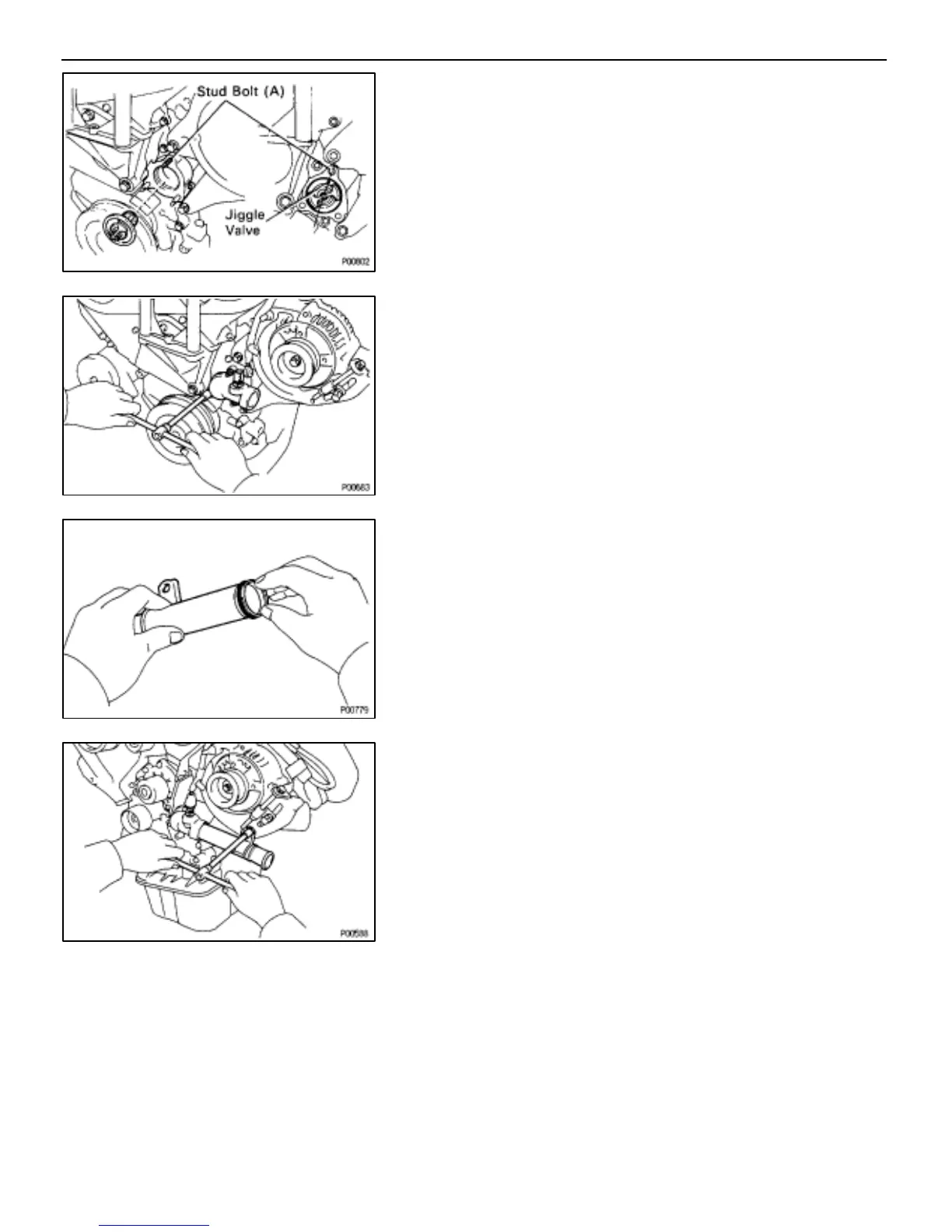

1. PLACE THERMOSTAT IN WATER PUMP
(a) Install a new gasket to the thermostat.
(b) Align the jiggle valve of the thermostat with stud bolt (A), and
insert the thermostat in the water pump.
2. INSTALL WATER INLET
Install the water inlet with the three nuts.
Torque: 20 N⋅m (200 kgf⋅cm, 14 ft⋅lbf)
3. CONNECT ENGINE COOLANT TEMPERATURE SENSOR
CONNECTOR
4. INSTALL WATER INLET PIPE
(a) Install a new O–ring to the water inlet pipe.
(b) Apply soapy water to the O–ring.
(c) Connect the water inlet pipe to the water inlet.
(d) Install the bolt holding the water inlet pipe to the generator
belt adjusting bar.
Torque: 20 N⋅m (200 kgf⋅cm, 14 ft⋅lbf)
5. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
6. FILL WITH ENGINE COOLANT (See page EG–244)
7. START ENGINE AND CHECK FOR LEAKS
