VOLUME AIR FLOW METER
INSTALLATION
EG0H3–01
(See page EG–200)

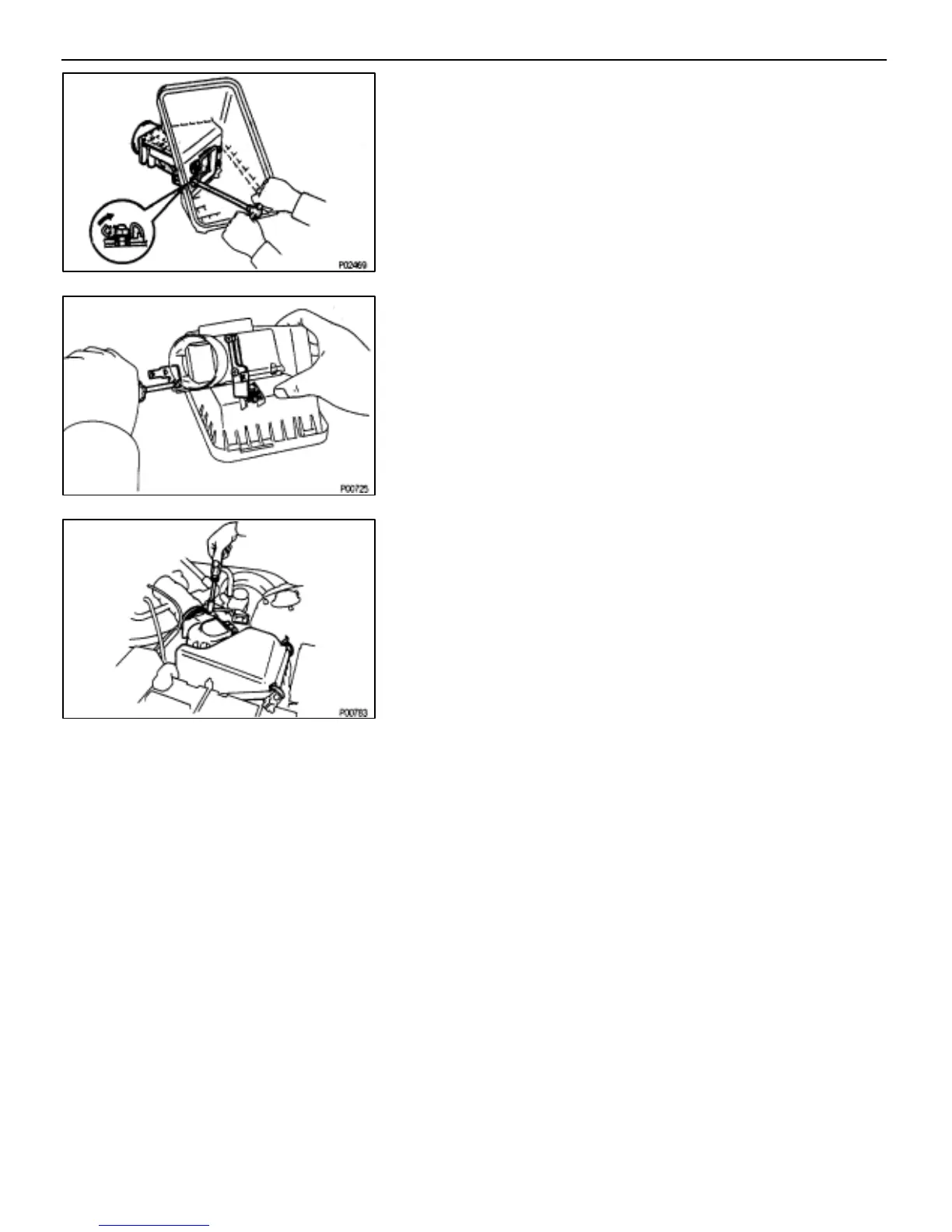

1. INSTALL VOLUME AIR FLOW METER TO AIR CLEANER
CAP
(a) Install the volume air flow meter with the gasket, lock
plate, four plate washers, four nuts and bolt. Pry the lock plate
on the nut.
(b) Install the bracket with the bolt and two screws.
(c) Install the wire bracket with the screw.
2. INSTALL AIR CLEANER CAP AND VOLUME AIR FLOW
METER ASSEMBLY
3. CONNECT AIR CLEANER HOSE
4. CONNECT VOLUME AIR FLOW METER CONNECTOR
5. CONNECT COIL CORD CLAMP
6. CONNECT CABLE TO NEGATIVE TERMINAL OF
BATTERY
