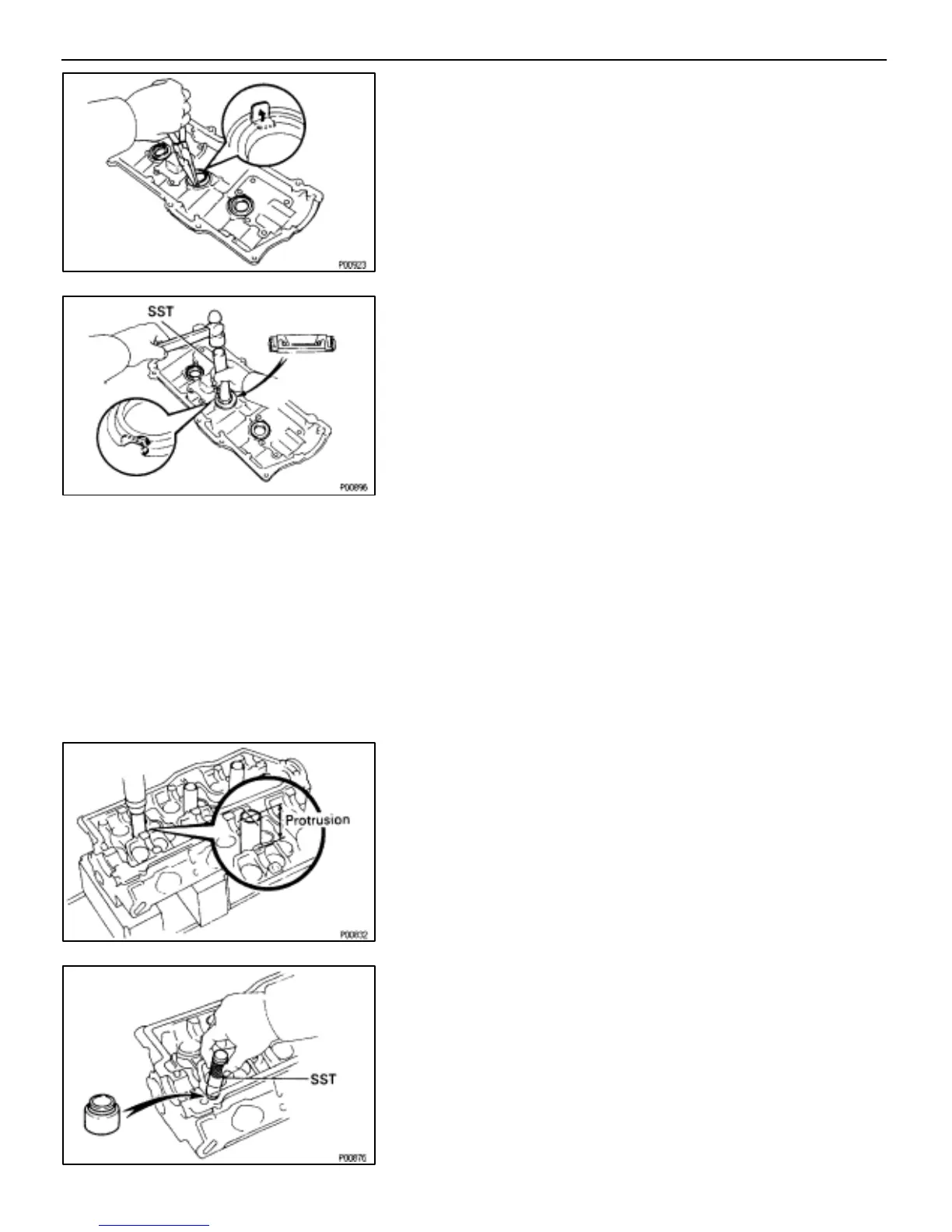

17. IF NECESSARY, REPLACE SPARK PLUG TUBE
GASKETS
(a) Bend up the tab on the ventilation baffle plate which prevents
the gasket from slipping out.
NOTICE: Do not deform the baffle plate gasket.
(b) Push in part of the outer circumference of the plug tube
gasket and use needle–nose pliers to remove the plug
gasket.
NOTICE: Do not scratch or damage the joint of the cylin-
der head cover.
(c) Using SST, tap in a new gasket until its surface is flush with
the upper edge of the cylinder head cover.
SST 09550–10012 (09552–10010, 09558–10010)
(d) Apply a light coat of MP grease to the gasket lip.
(e) Return the ventilation case claw to its original position.
CYLINDER HEADS ASSEMBLY
EG0F7–02
(See page EG–47)
HINT:
•Thoroughly clean all parts to be assembled.
•Before installing the parts, apply new engine oil to all sliding
and rotating surfaces.
•Replace all gaskets and oil seals with new ones.
1. INSTALL SPARK PLUG TUBES
HINT: When using a new cylinder head, spark plug tubes
must be installed.
Using a press, press in a new spark plug tube until there is
49.0–49.4 mm (1.929–1.945 in.) protruding from the cam-
shaft bearing cap installation surface of the cylinder head.
NOTICE: Avoid pressing a new spark plug tube in too far
by measuring the amount of protrusion while pressing.
2. INSTALL VALVES
(a) Using SST, push in a new oil seal.
SST 09201–41020
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
EG–71
