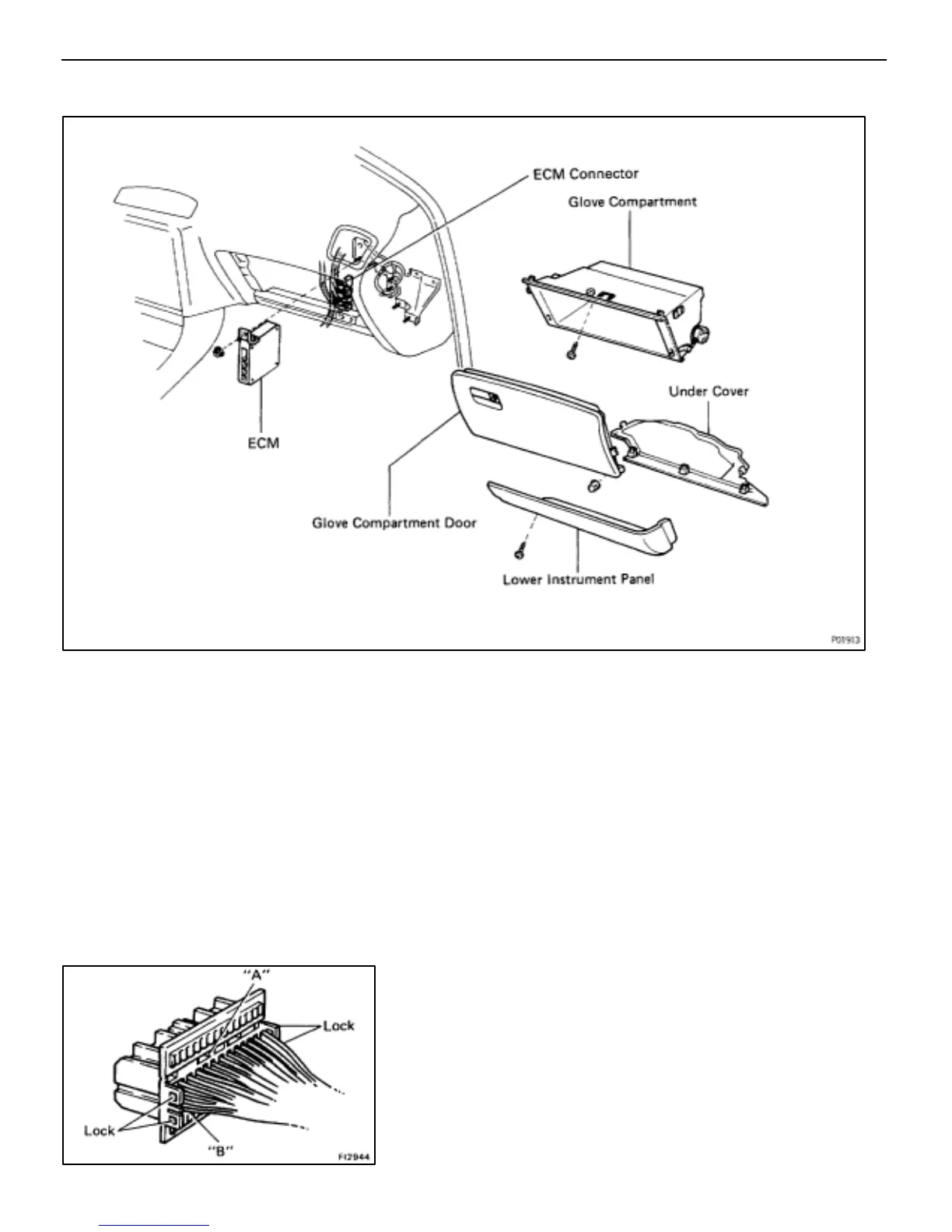

ECM REMOVAL AND INSTALLATION
EG0HZ–01
ECM INSPECTION
EG0J0–01
HINT: The SFI circuit can be checked by measuring the resis-
tance and voltage at the wiring connectors of the ECM.
1. PREPARATION
(a) Disconnect the connectors from the ECM.
(b) Remove the locks as shown in the illustration so that the
tester probe(s) can easily come in.
NOTICE: Pay attention to sections ”A” and ”B” in the il-
lustration which can be easily broken.
EG–232
–ENGINE TROUBLESHOOTING SFI SYSTEM
To Next Page
