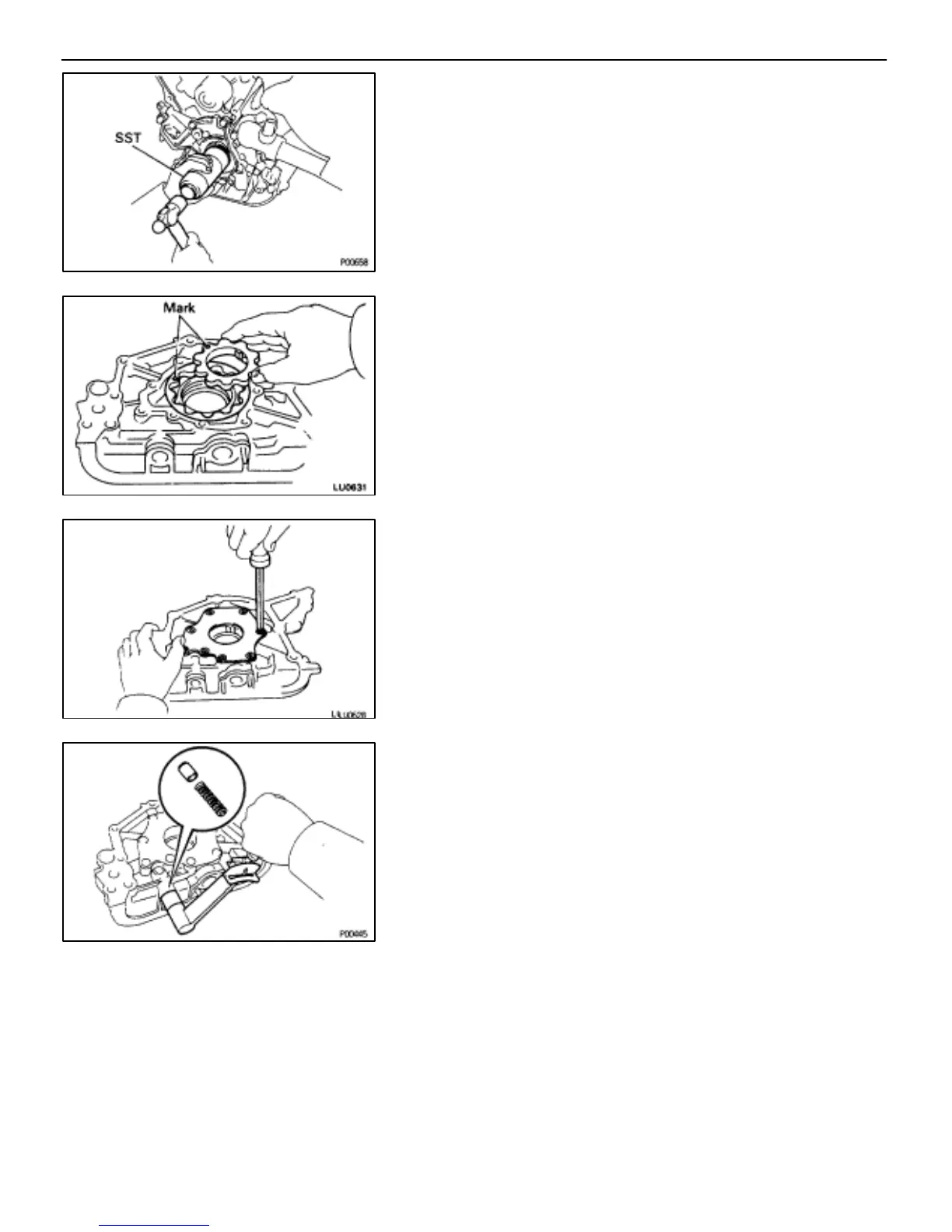

(c) Apply MP grease to a new oil seal lip.
(d) Using SST and a hammer, tap in the oil seal until its surface
is flush with the oil pump case edge.
SST 09309–37010
OIL PUMP ASSEMBLY
EG09D–01
(See page EG–298)
1. INSTALL DRIVE AND DRIVEN ROTORS
(a) Place the drive and driven rotors into pump body with the
marks facing the pump body cover side.
(b) Install the pump body cover with the eight screws.
2. INSTALL RELIEF VALVE
(a) Insert the relief valve and spring into the pump body hole.
(b) Install and torque the plug.
Torque: 37 N⋅m (375 kgf⋅cm, 37 ft⋅lbf)
–ENGINE TROUBLESHOOTING LUBRICATION SYSTEM
EG–301
