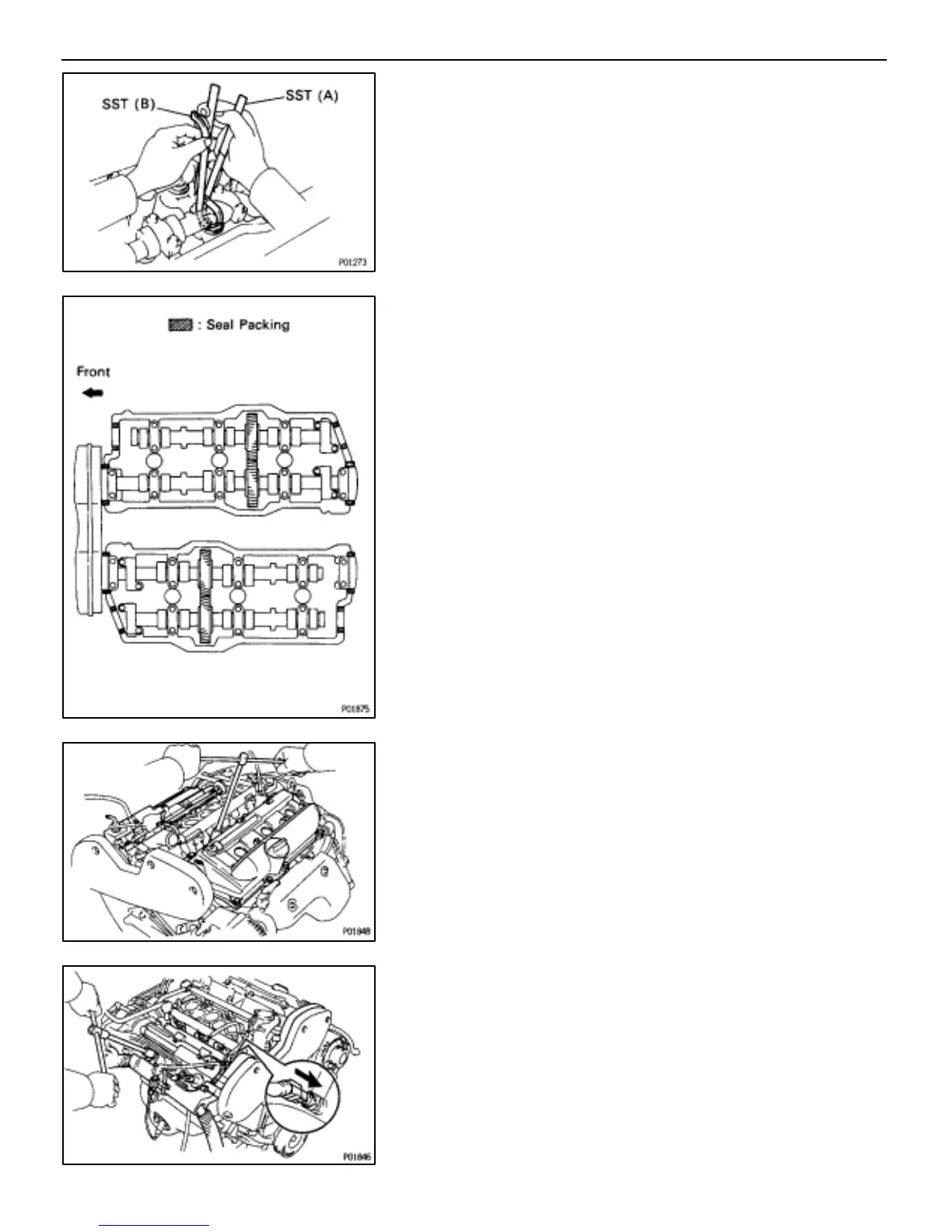

•Place a new adjusting shim on the valve lifter.
•Press down the valve lifter with SST (A), and remove SST
(B).
SST 09248–55020(09248–05011, 09248–05021)
(g) Recheck the valve clearance.
22. REINSTALL CYLINDER HEAD COVERS
(a) Apply seal packing to the cylinder heads as shown in the
illustration.
Seal packing:
Part No.08826–00080 or equivalent
(b) Install the gasket to the cylinder head cover.
(c) Install the cylinder head cover with the six seal washers and
nuts. Uniformly tighten the nuts in several passes. Install the
two cylinder head covers.
Torque: 5.9 N⋅m (60 kgf⋅cm, 52 in.⋅lbf)
23. RECONNECT HIGH–TENSION CORDS TO SPARK
PLUGS
24. RECONNECT RH ENGINE WIRE HARNESS
(a) Connect the two clamps of the RH engine wire harness and
install the wire harness with the two bolts.
(b) Connect the following connectors:
(1) Three injector connectors
(2) Engine coolant temperature sender gauge connector
(3) Oxygen sensor connector
(4) PS pump connector
EG–18
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
