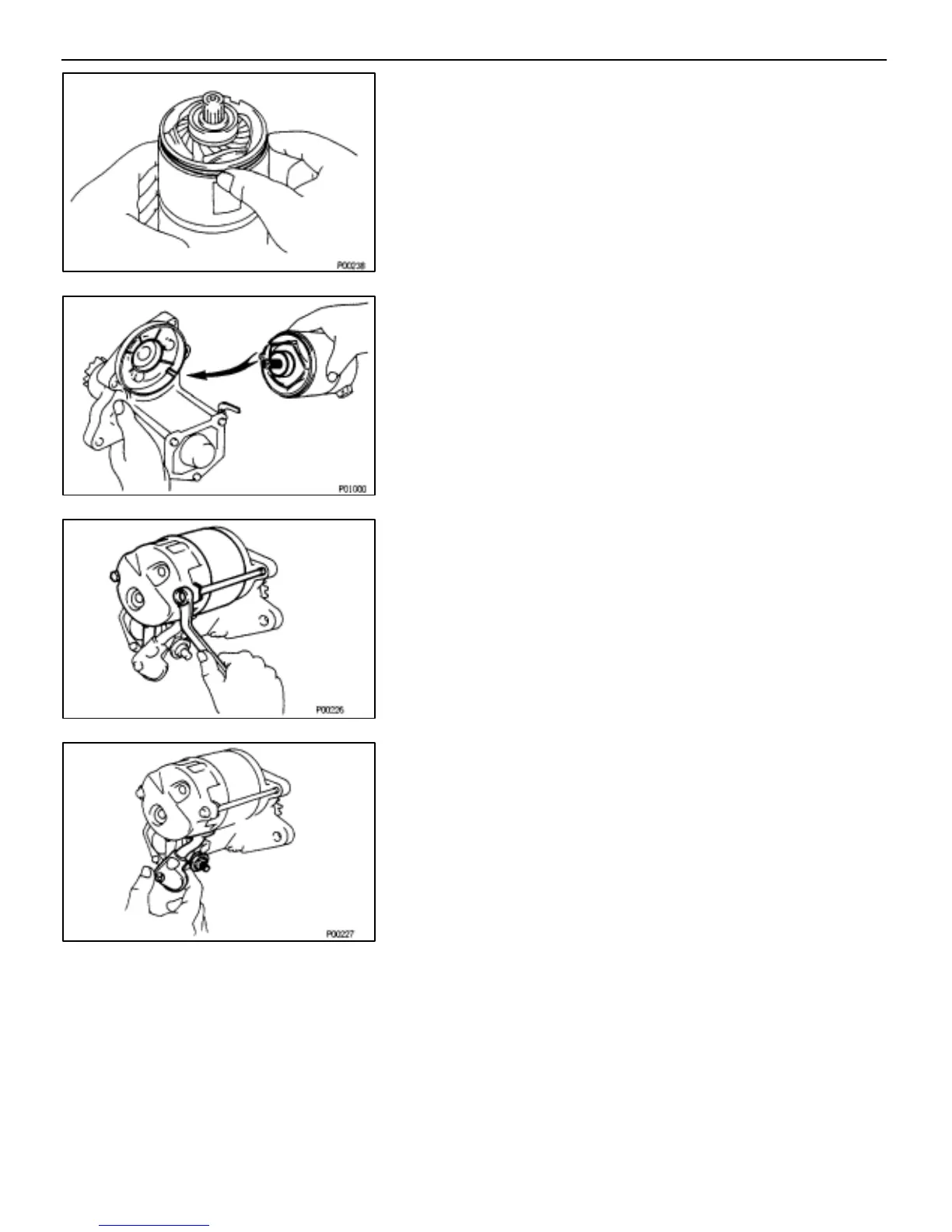

5. INSTALL FIELD FRAME AND ARMATURE ASSEMBLY
(a) Place a new O–ring in position on the field frame.
(b) Align the protrusion of the field frame with the cutout of the
magnetic switch.
(c) Install the field frame and armature assembly with the two
through bolts.
(d) Connect the lead wire to terminal C, and install the nut.
ST–16
–STARTING SYSTEM STARTER
