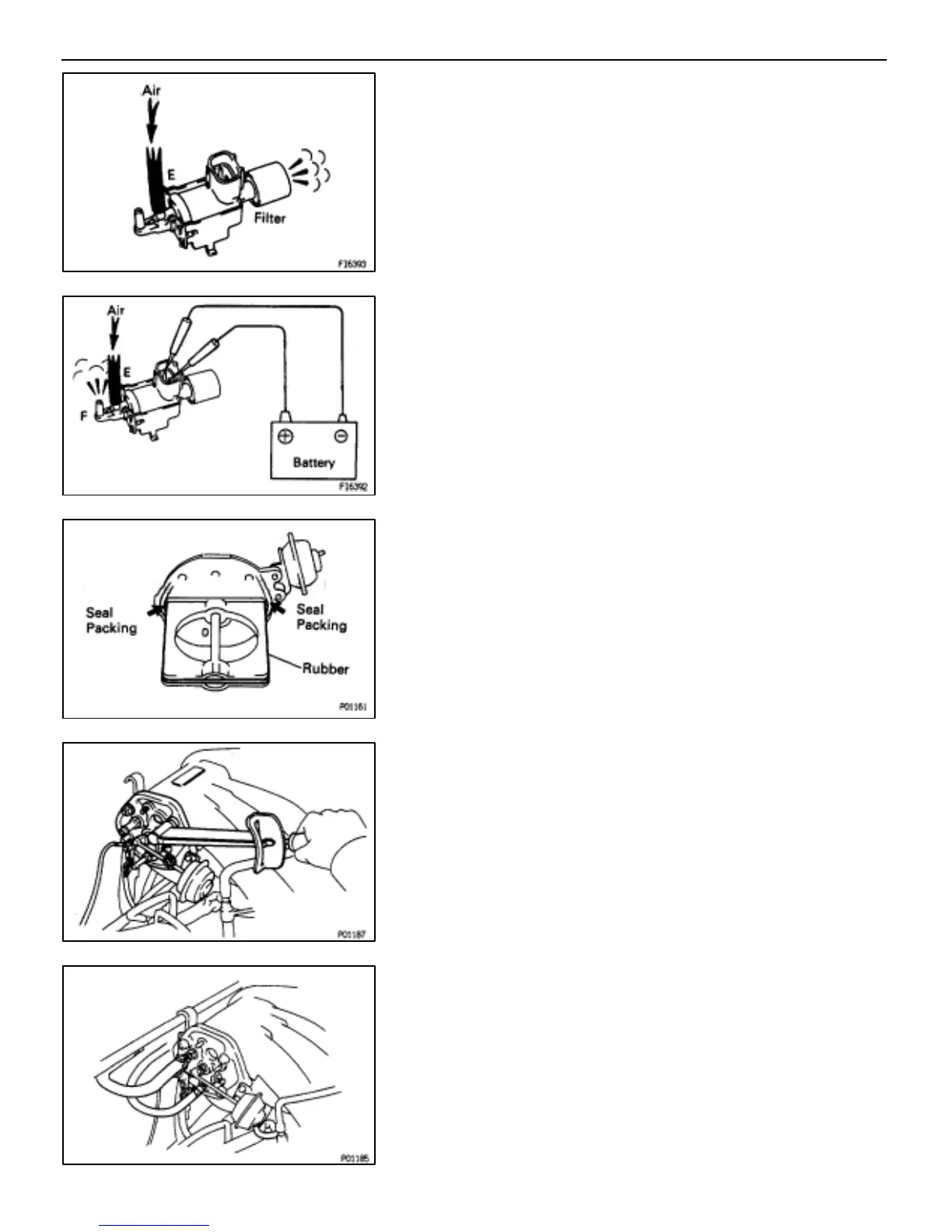

C. Inspect VSV operation
(a) Check that air flows from pipe E to the filter.
(b) Apply battery voltage across the terminals.
(c) Check that air flows from pipe E to pipe F.
If operation is not as specified, replace the VSV.
IACV INSTALLATION
EG0HG–01
(See page EG–214)
1. INSTALL IACV
(a) Install a new gasket to the intake manifold.
(b) Apply a light coat of engine oil to the rubber portions.
(c) Apply seal packing to the positions of the IACV shown in the
illustration.
(e) Install the IACV and two ground straps with the four nuts.
Torque: 13 N⋅m (130 kgf⋅cm, 9 ft⋅lbf)
2. CONNECT HOSES TO IACV
(a) Brake booster vacuum hose
(b) PS idle–up vacuum hose
(c) IACV actuator vacuum hose
–ENGINE TROUBLESHOOTING SFI SYSTEM
EG–217
