ON–VEHICLE INSPECTION
SPARK TEST
IG01R–02
CHECK THAT SPARK OCCURS
(a) Disconnect the high–tension cord from the distributor. (See
page IG–7)
(b) Hold the end approx. 12.5 mm (0.50 in.) from the body of
vehicle.
(c) See if spark occurs while engine is being cranked.
HINT: To prevent gasoline from being injected from injectors
during this test, crank the engine for no more than 1–2 se-
conds at time.

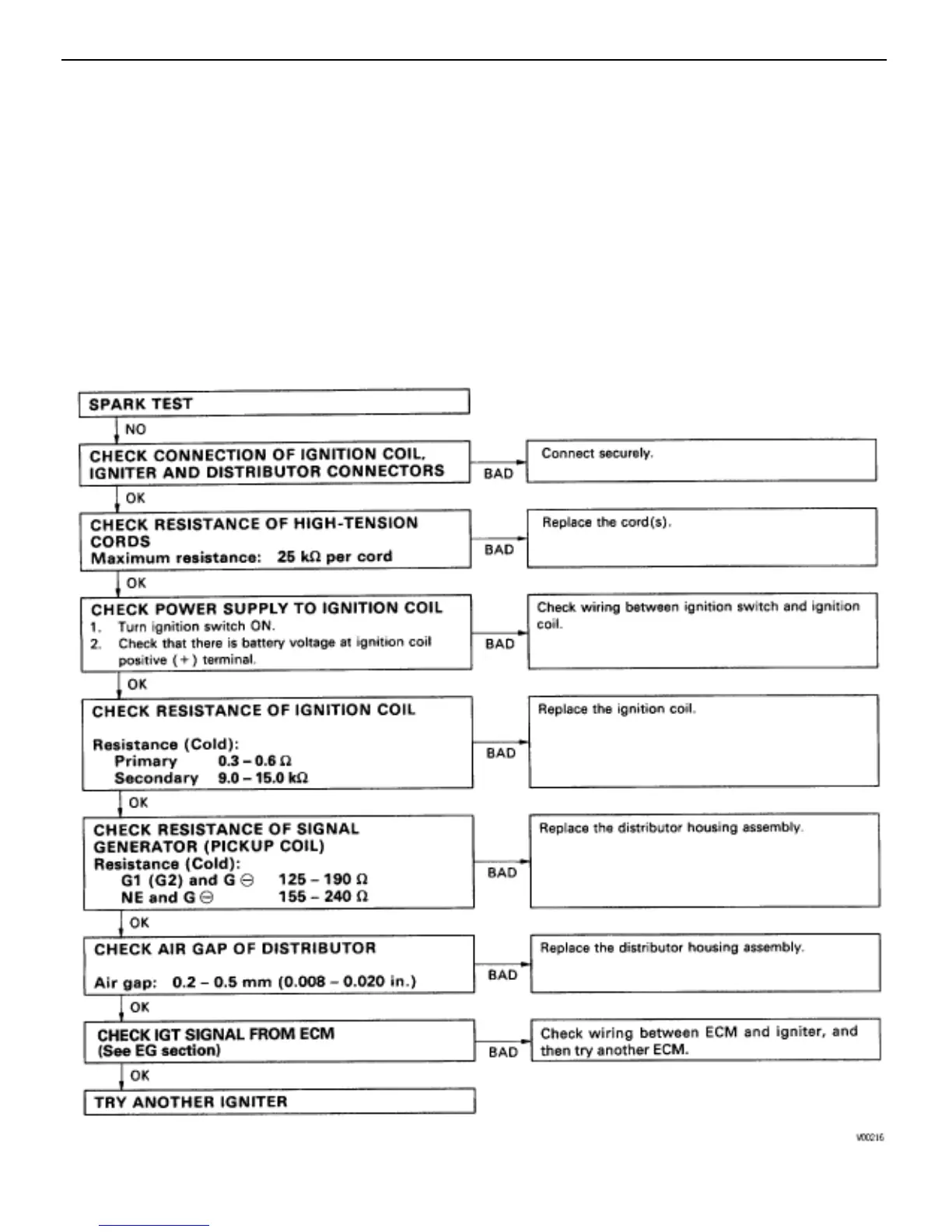

If the spark does not occur, perform the test as follows:
(See page IG–7)
(See page IG–11)
(See page IG–11)
(See page IG–11)
IG–6
–IGNITION SYSTEM ON–VEHICLE INSPECTION
