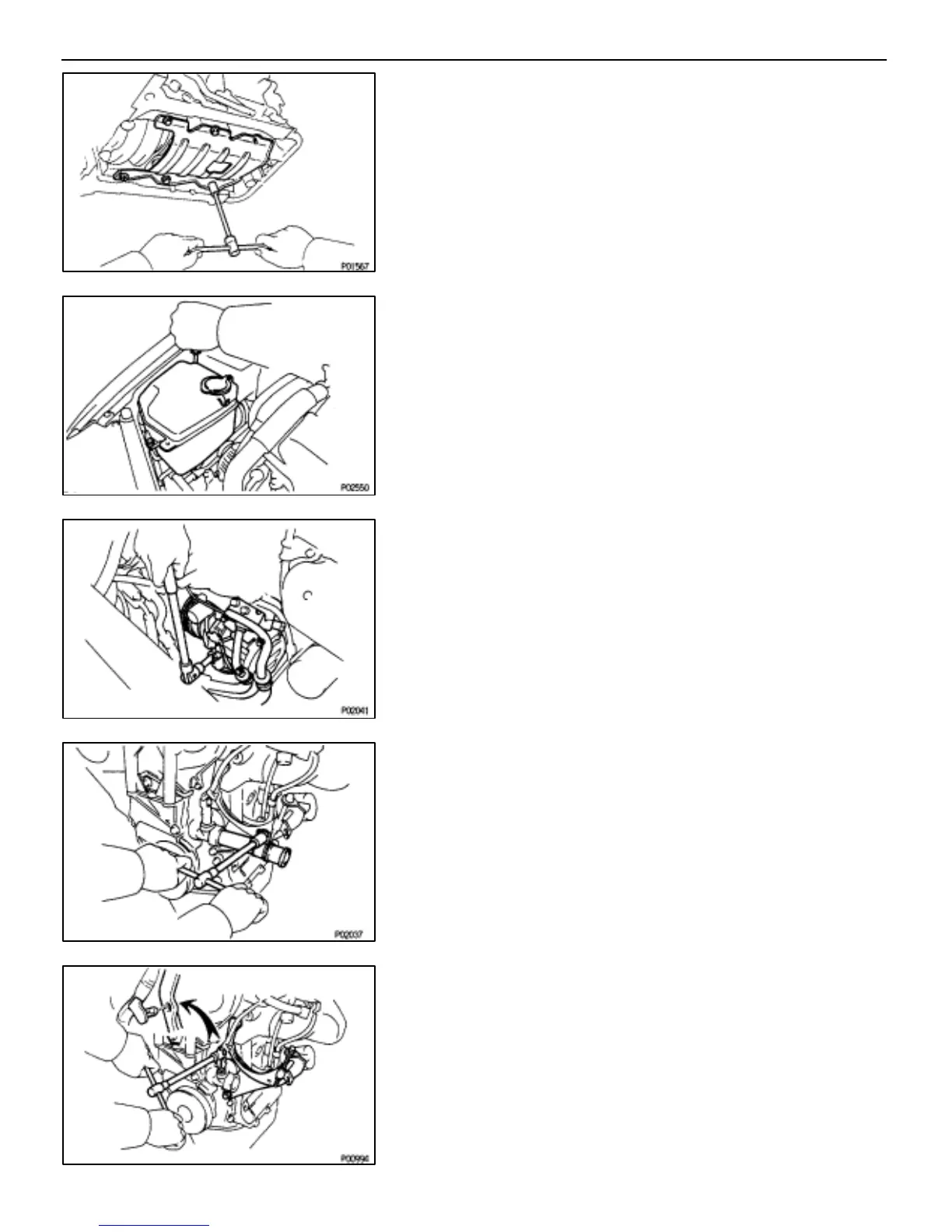

9. REMOVE OIL PAN BAFFLE PLATE
Remove the four bolts, nut and baffle plate.
10. REMOVE WASHER TANK
(a) Remove the three washer tank mounting bolts.
(b) Disconnect the connector and hose, and remove the washer
tank.
11. REMOVE GENERATOR (See CH section)
12. DISCONNECT RADIATOR LOWER HOSE
13. REMOVE A / C COMPRESSOR WITHOUT
DISCONNECTING HOSES
(a) Disconnect the connector.
(b) Remove the five bolts, drive belt adjusting bar bracket and
compressor.
HINT: Put aside the compressor, and suspend it to the radia-
tor support with a string.
14. REMOVE WATER INLET PIPE
Remove the bolt and water inlet pipe.
15. REMOVE GENERATOR BRACKET
Remove the two bolts and generator bracket.
