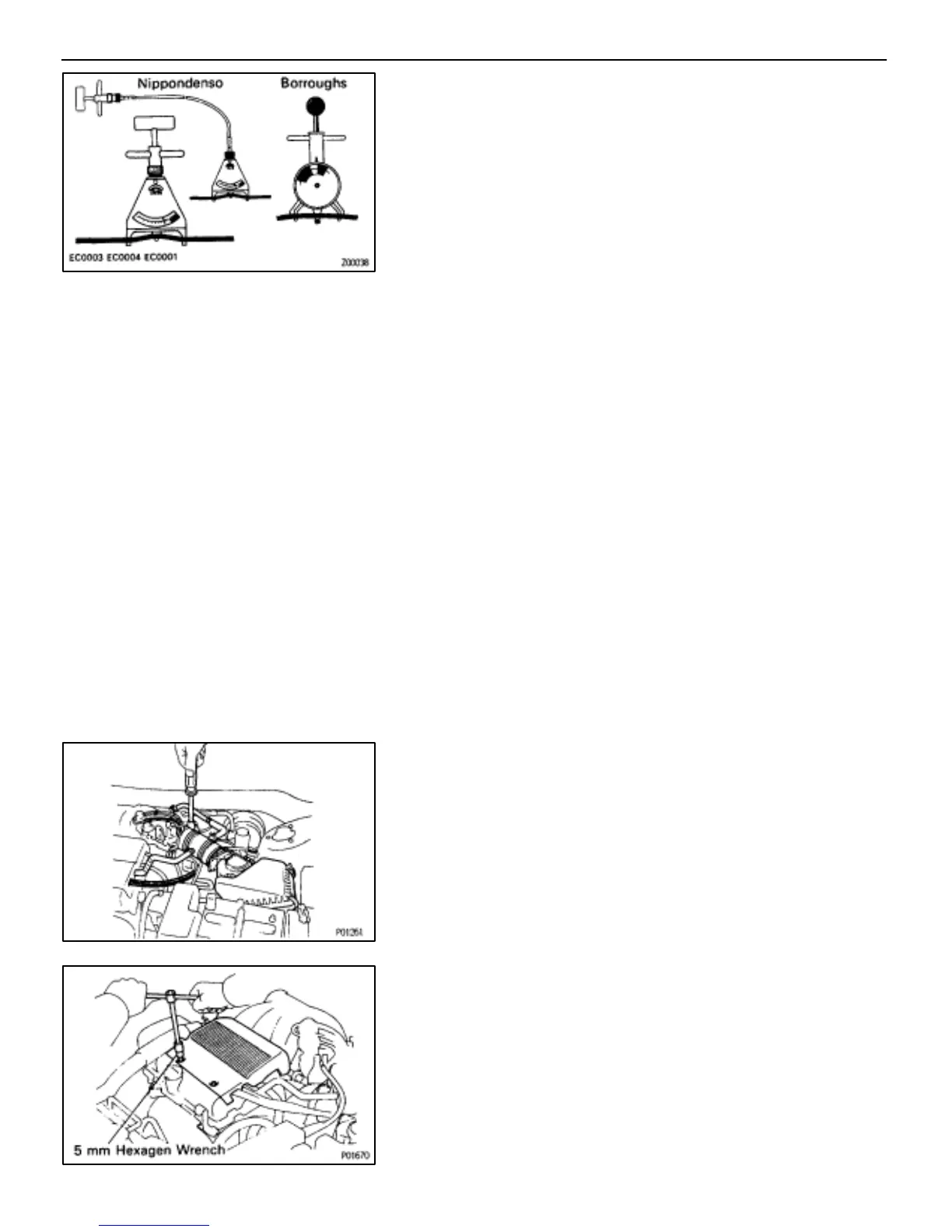

GENERATOR DRIVE BELT INSPECTION
EG0ES–01
(See CH section)
Drive belt tension:
New belt
175 ± 5 lbf
Use belt
115 ± 20 lbf
VALVE CLEARANCE INSPECTION AND
ADJUSTMENT
EG0ET–02
HINT: Inspect and adjust the valve clearance when the en-
gine is cold.
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF
BATTERY
CAUTION (w/ Airbag): Work must be started after approx.
30 seconds or longer from the time the ignition switch is
turned to the ”LOCK” position and the negative (–) termi-
nal cable is disconnected from the battery.
2. DRAIN ENGINE COOLANT
3. DISCONNECT ACCELERATOR CABLE FROM
THROTTLE LINKAGE
4. (A/T)
DISCONNECT THROTTLE CABLE FROM THROTTLE
LINKAGE
5. REMOVE AIR CLEANER CAP, VOLUME AIR FLOW
METER AND AIR CLEANER HOSE
(a) Disconnect the volume air flow meter
(b) Disconnect the coil cord clamp.
(c) Disconnect the air hoses.
(d) Loosen the air cleaner hose clamp bolt.
(e) Disconnect the air cleaner cap clips.
(f) Remove the air cleaner cap and volume air flow meter
together with the air cleaner hose.
6. REMOVE V–BANK COVER
Using a 5 mm hexagon wrench, remove the two nuts and V–
bank cover.
–ENGINE TROUBLESHOOTING ENGINE MECHANICAL
EG–13
