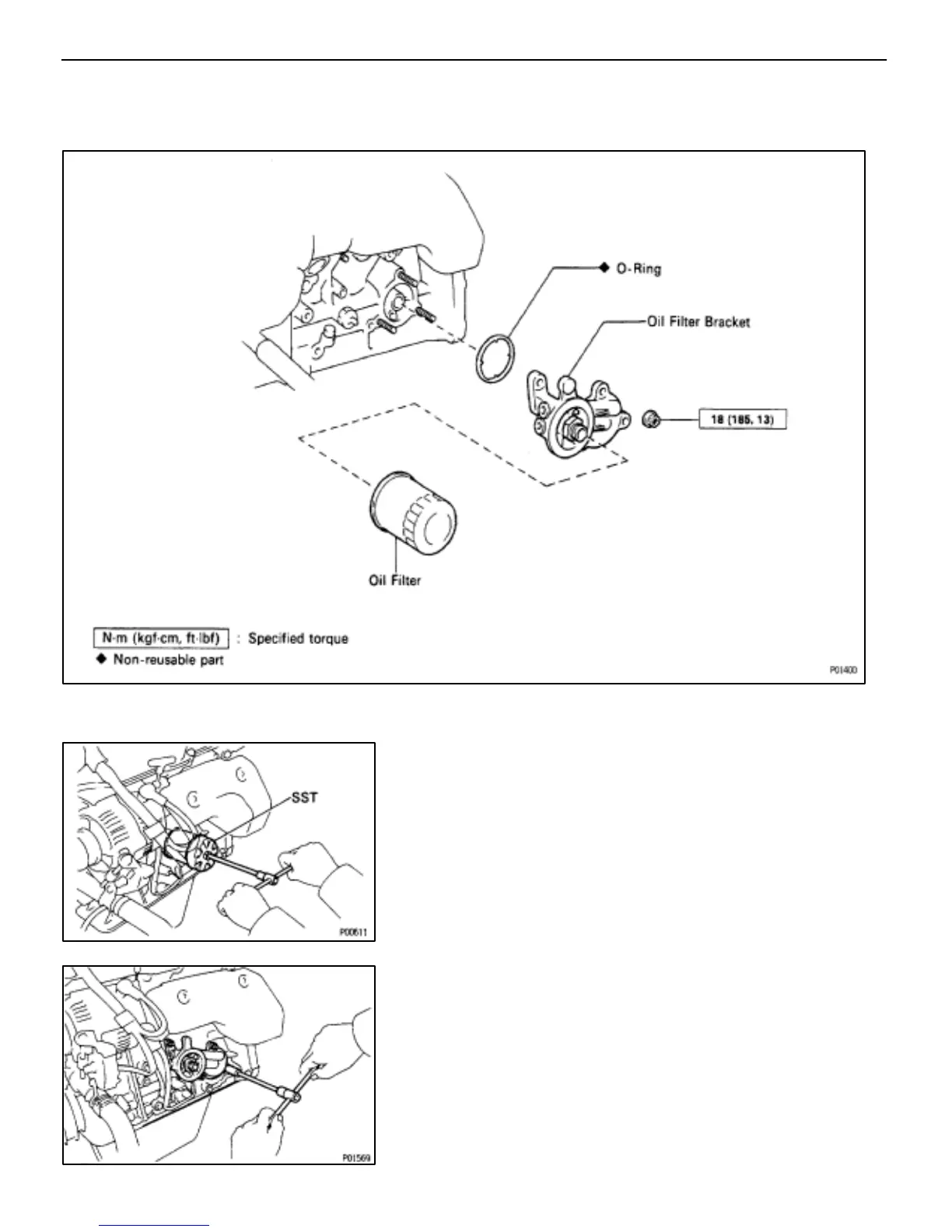

OIL FILTER BRACKET

OIL FILTER BRACKET REMOVAL

EG09F–01

1. REMOVE OIL FILTER

Using SST, remove the oil filter.

SST 09228–07500

2. REMOVE OIL FILTER BRACKET

(a) Remove the four nuts and oil filter bracket.

(b) Remove the O–ring from the oil filter bracket.

–ENGINE TROUBLESHOOTING LUBRICATION SYSTEM

EG–307
