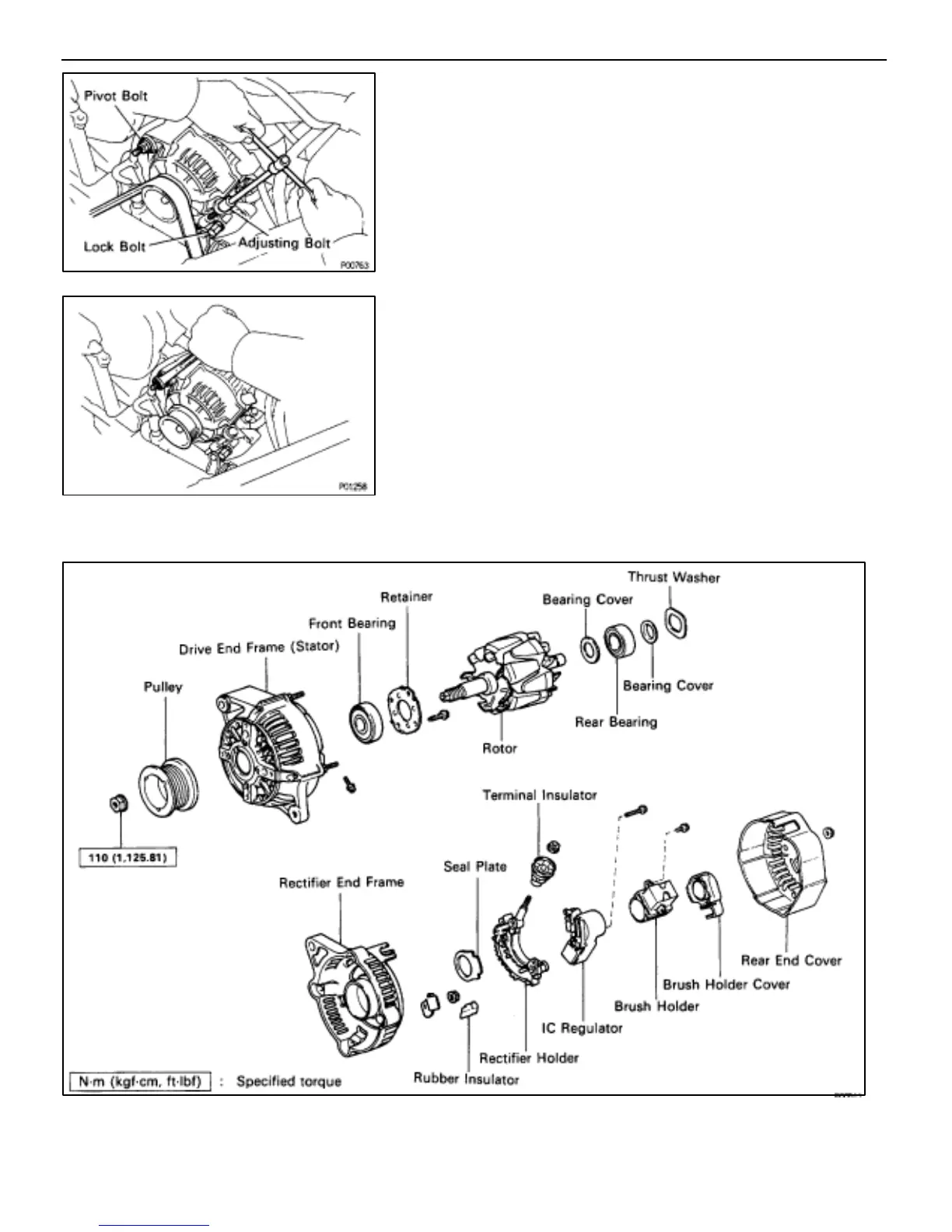

3. REMOVE DRIVE BELT
Loosen the pivot bolt and adjusting lock bolt, and remove the
drive belt.
4. REMOVE GENERATOR
(a) Disconnect the generator connector.
(b) Remove the nut, and disconnect the generator wire.
(c) Disconnect the wire harness from the clip.
(d) Remove the pivot bolt, adjusting lock bolt and generator.
COMPONENTS
CH011–01
CH–10
–CHARGING SYSTEM GENERATOR
To Next Page
