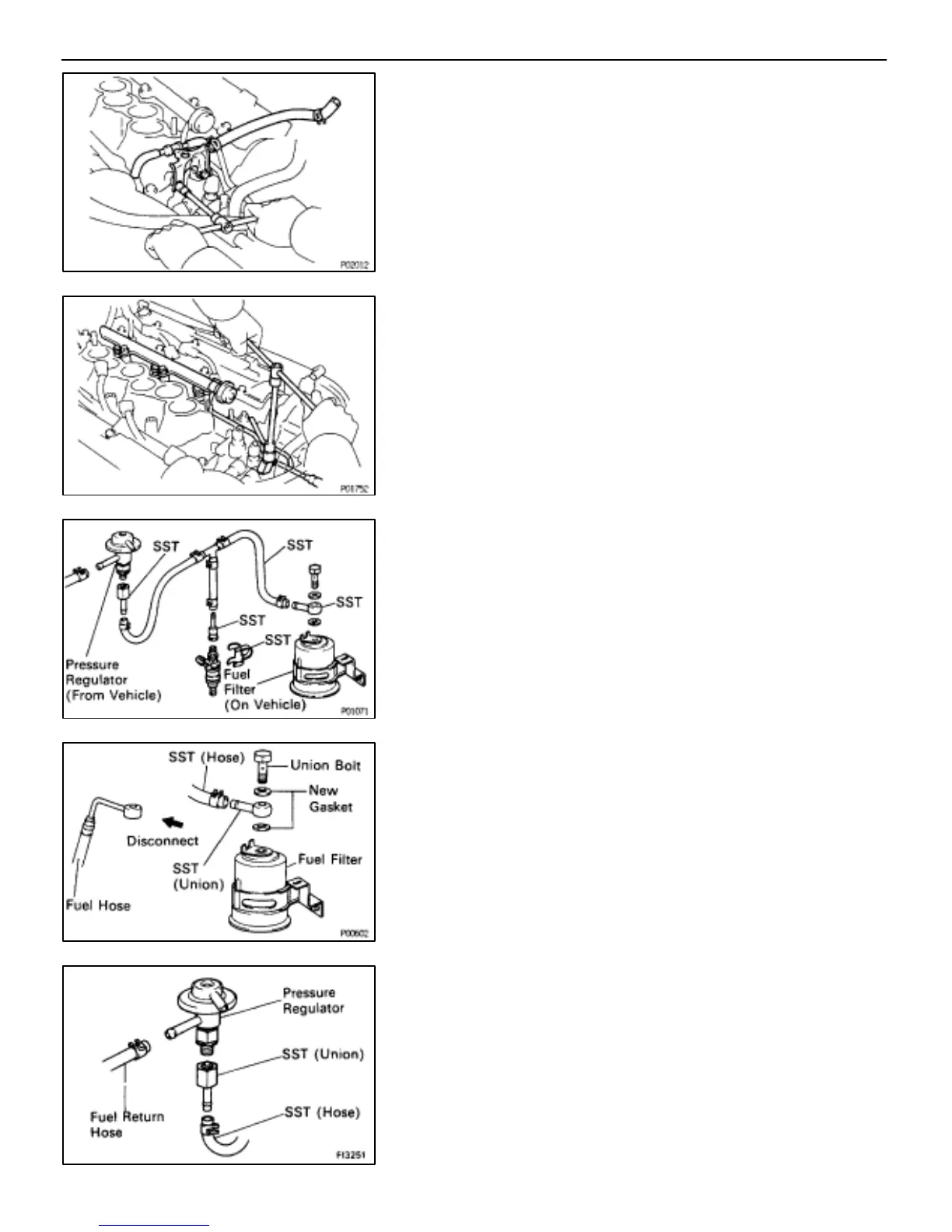

20. REMOVE AIR PIPE WITH HOSES
(a) Disconnect the two air hoses.
(b) Remove the bolts and air pipe with hoses.
21. REMOVE RH DELIVERY PIPE AND INJECTORS
(a) Remove three bolts and RH delivery pipe together with the
three injectors.
NOTICE: Be careful not to drop the injectors, when re-
moving the LH delivery pipe.
(b) Pull out the three injectors from the RH delivery pipe.
(c) Remove the two spacers from the intake manifold.
INJECTORS INSPECTION
EG0GV–01
1. INSPECT INJECTOR INJECTION
CAUTION: Keep clear of sparks during the test.
(a) Disconnect the fuel hose from the fuel filter outlet.
(b) Connect SST (union an hose) to the fuel filter outlet with two
new gaskets and the union bolt.
SST 09268–41045(90405–09015)
HINT: Use the vehicle’s fuel filter.
(c) Remove the pressure regulator. (See page EG–183)
(d) Connect the fuel return hose and SST (hose) to the pressure
regulator with SST (union).
SST 09268–41045(09268–41060)
–ENGINE TROUBLESHOOTING SFI SYSTEM
EG–191
