FIELD OPERATION
4-2
HEADER
Refer to the separate operator’ s manual for the
header type attached to your combine.

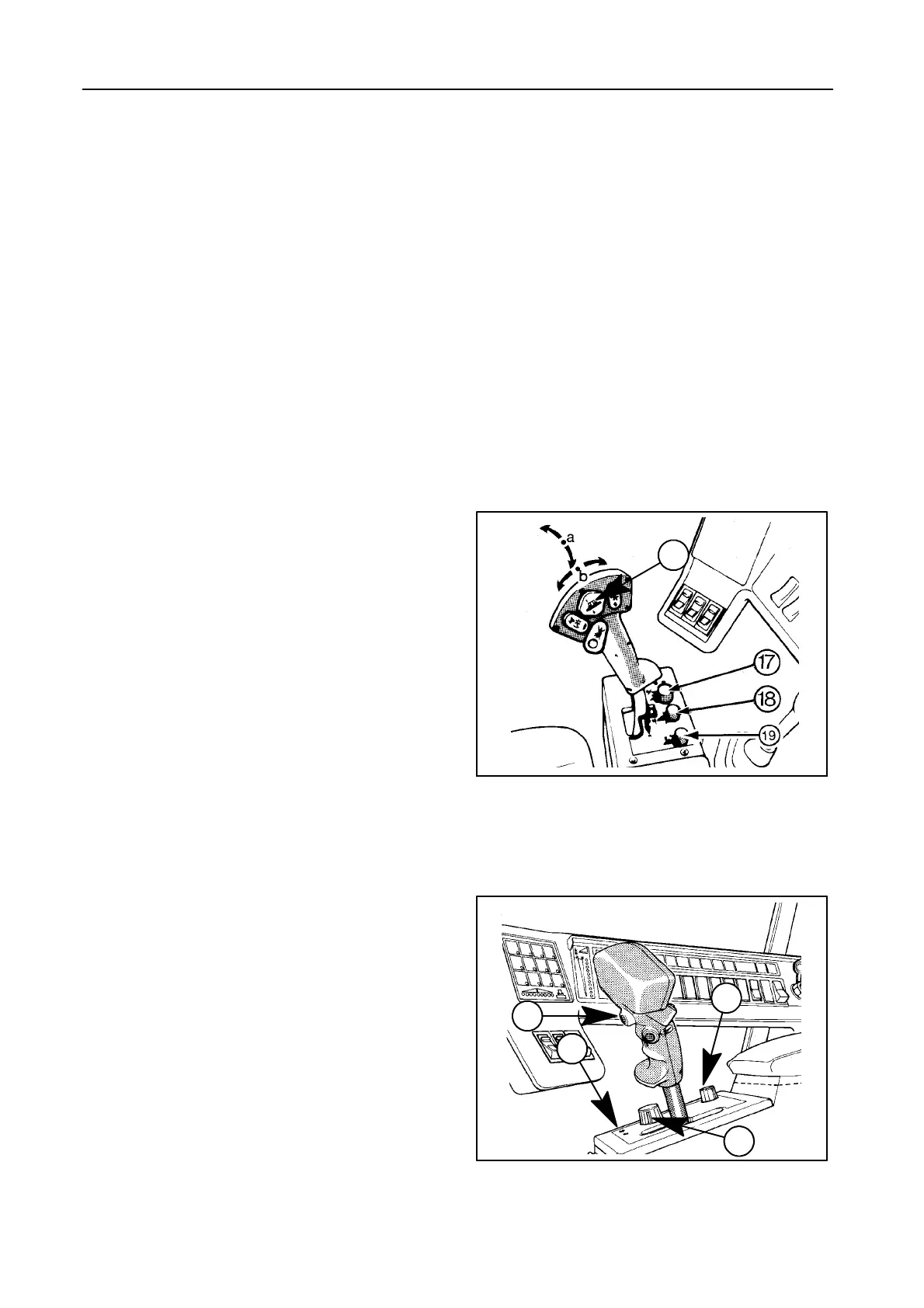

HEADER HEIGHT CONTROLS -- Figures 1 and 2
When changing the header, perform the header
height control (refer to paragraph ‘‘Header height con-
trol calibrations’ ’ and ‘‘InfoView Monitor’’, subheading
‘‘7. Calibrations’ ’).
IMPORTANT:
To enter an automatic header height control
mode (compensation, autofloat or stubble
height), proceed as follows:
1. Engage the threshing mechanism
2. Select a mode, and
3. Give a pulse on the automatic header
height control switch 20.
The green autodiagnostic indicator illuminates
if the header is working in an automatic header
height control mode with the preselected stub-
ble height (autofloat and stubble height) or
preselected pressure (compensation).
To switch from one automatic mode to another ,
select the required operation mode with selec-
tor switch 17 and give a pulse on automatic
header height control switch 20 to enter the se-
lected mode.
Manually operating header height control
switch 13 always has priority of the selected
automatic header height control mode (com-
pensation, autofloat or stubble height) and will
also disengage this automatic mode. Re-enter
the automatic mode by giving a pulse on switch
20.
