SECTION 3
3-19

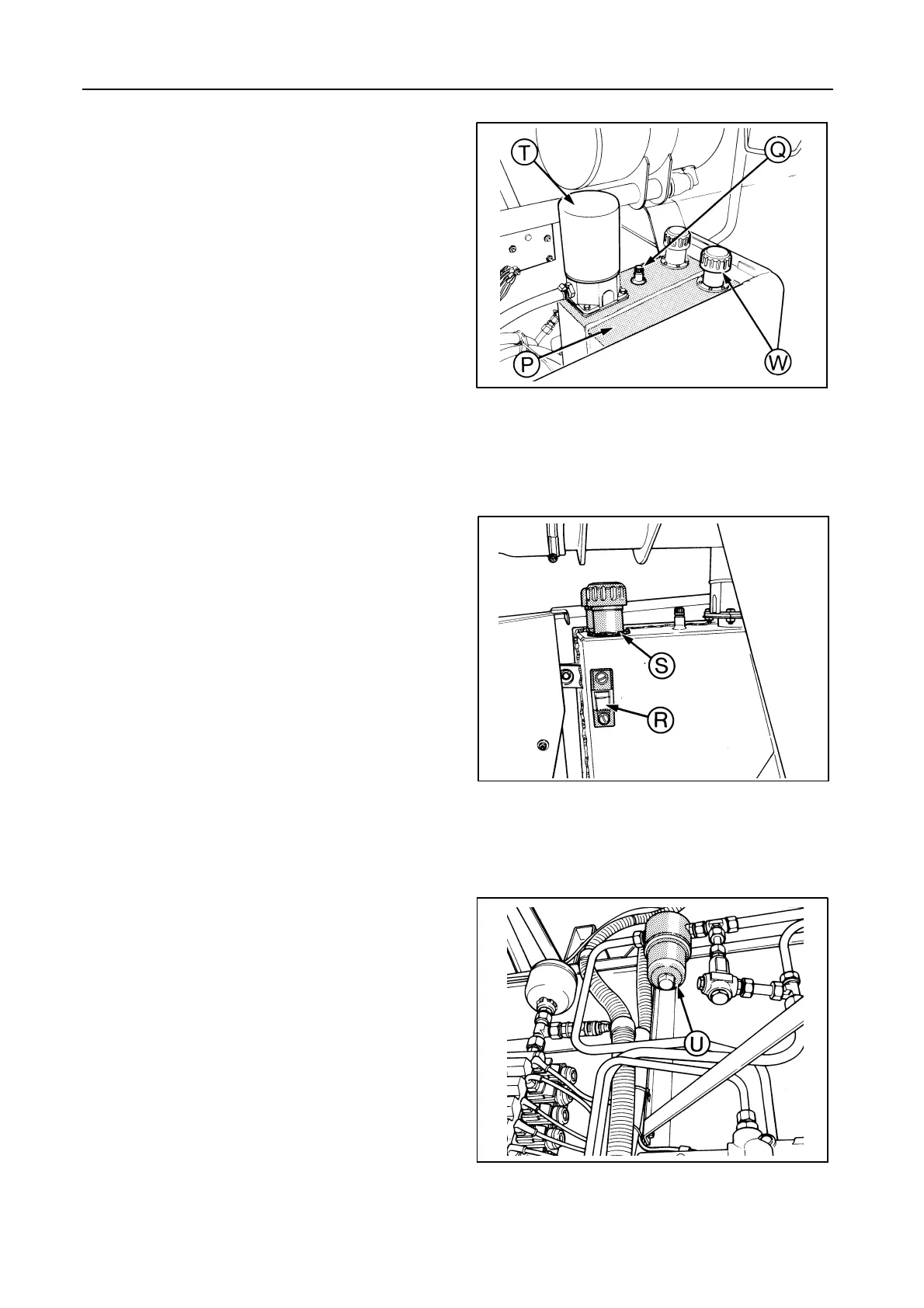

HYDRAULIC SYSTEM -- Figures 68 to 71
Oil reservoir
A single oil reservoir is fitted for the hydraulic and hy-
drostatic systems. A baffle in the tank separates the
hydraulic and hydrostatic oils. The left-hand side P
contains the oil for the hydrostatic system. The right-
hand side Q contains the oil for the hydraulic system.
Oil level
ENSURE THAT ALL HYDRAULIC CYLINDERS ARE
RETRACTED BEFORE CHECKING THE OIL
LEVEL.
The oil level s hould be checked daily on the level
gauge R and should be kept between the marks.
If necessary, add oil through the filler opening S.
Oil and oil filter change
S After the first 100 operating hours
S Thereafter, every 400 operating hours, or an-
nually.
IMPORTANT:
The return filter T (low pressure filter) and the
high pressure filter U should be changed at
each oil change.
To change the oil and both filters, proceed as follows:
1. Clean the reservoir filler cap and surrounding
area (with compressed air, if possible).
2. Drain the oil from the reservoir at hose V.
3. Remove the ‘‘spin-on” return filter T with a filter
wrench.
4. Apply a film of oil to the gasket of the new return
filter.
5. Screw on the new return filter by hand. Tighten
firmly but DO NOT USE TOOLS.
42806
68
42805
69
70
42812
