SECTION 4
4-59

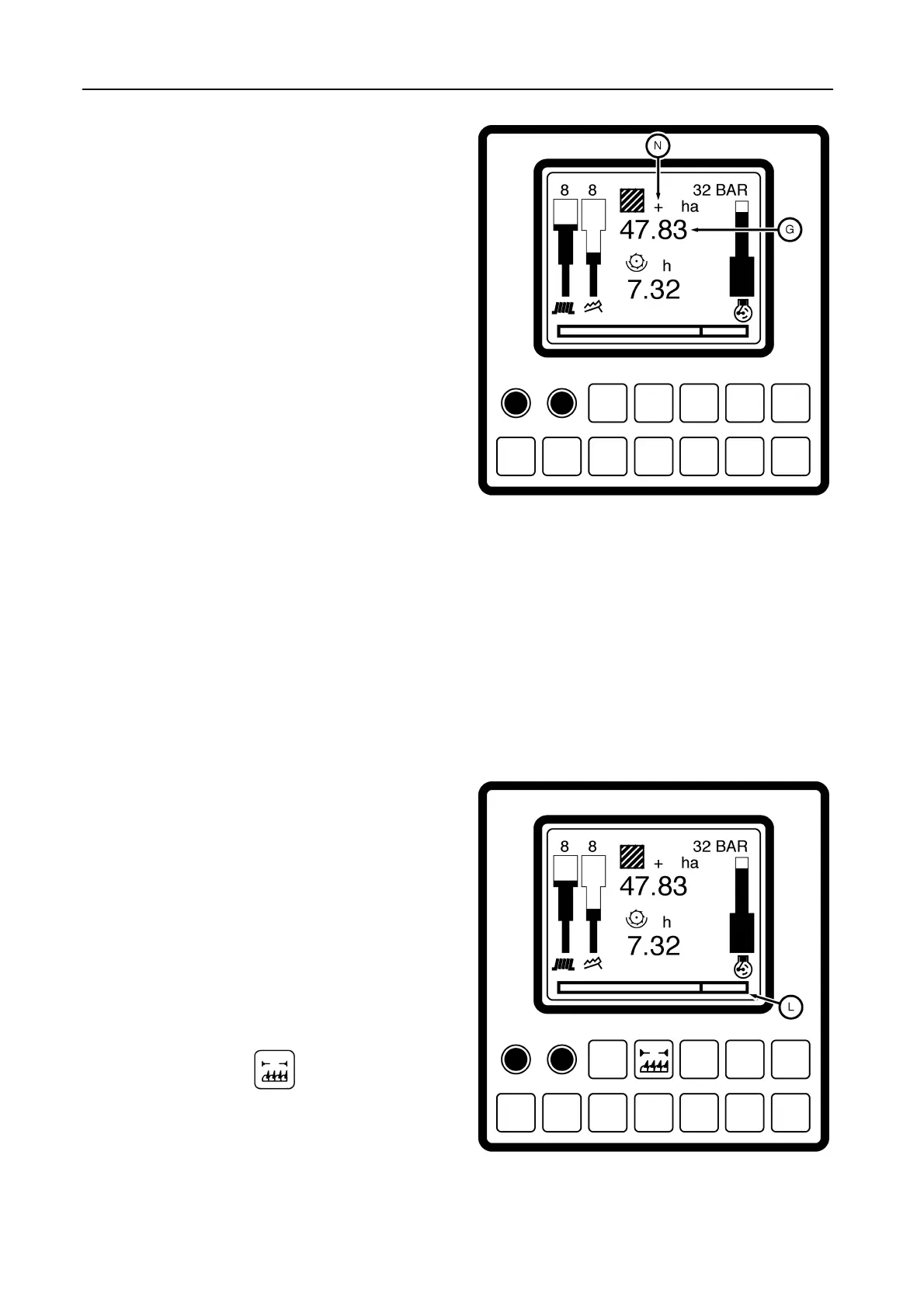

4.2 Area count G -- Figure 97
This counter shows the area which has been har-
vested since the area counter mode was last cleared
(Refer to paragraph 5 ‘‘Memory mode’’).
The area counter starts counting when:
S The threshing mechanism is engaged,
and
S The header drive is engaged,
and
S The header height is below the height cal-
ibration value (refer to paragraph ‘‘Cal-
ibration’’, subheading 2.6).
The monitor will display a ‘‘+’’ symbol N when the area
counter is operating.
IMPORTANT:
The area counter only gives an approximate val-
ue. The accuracy depends on correct calibration
of all parameters (wheel size, header type, ...)
but also on the real cutting width. Never switch
off the battery before switching off the ignition
(with the key). This will avoid the risk of losing the
latest information on area counting.
4.3 Bottom text line L -- Figure 98
With the area counter mode selected, the text line pro-
vides the following information:
a) Header width c orrection (only when the threshing
and header mechanisms are engaged).
S If the full header width is not used during har-
vesting, an area counter correction has to be
made by pressing
.
Each pulse (with audible signal) reduces the
header width by one quarter. In case a maize
header is fitted, each pulse reduces the header
width with one row unit).
54778
54777
97
98
