FIELD OPERATION
4-114

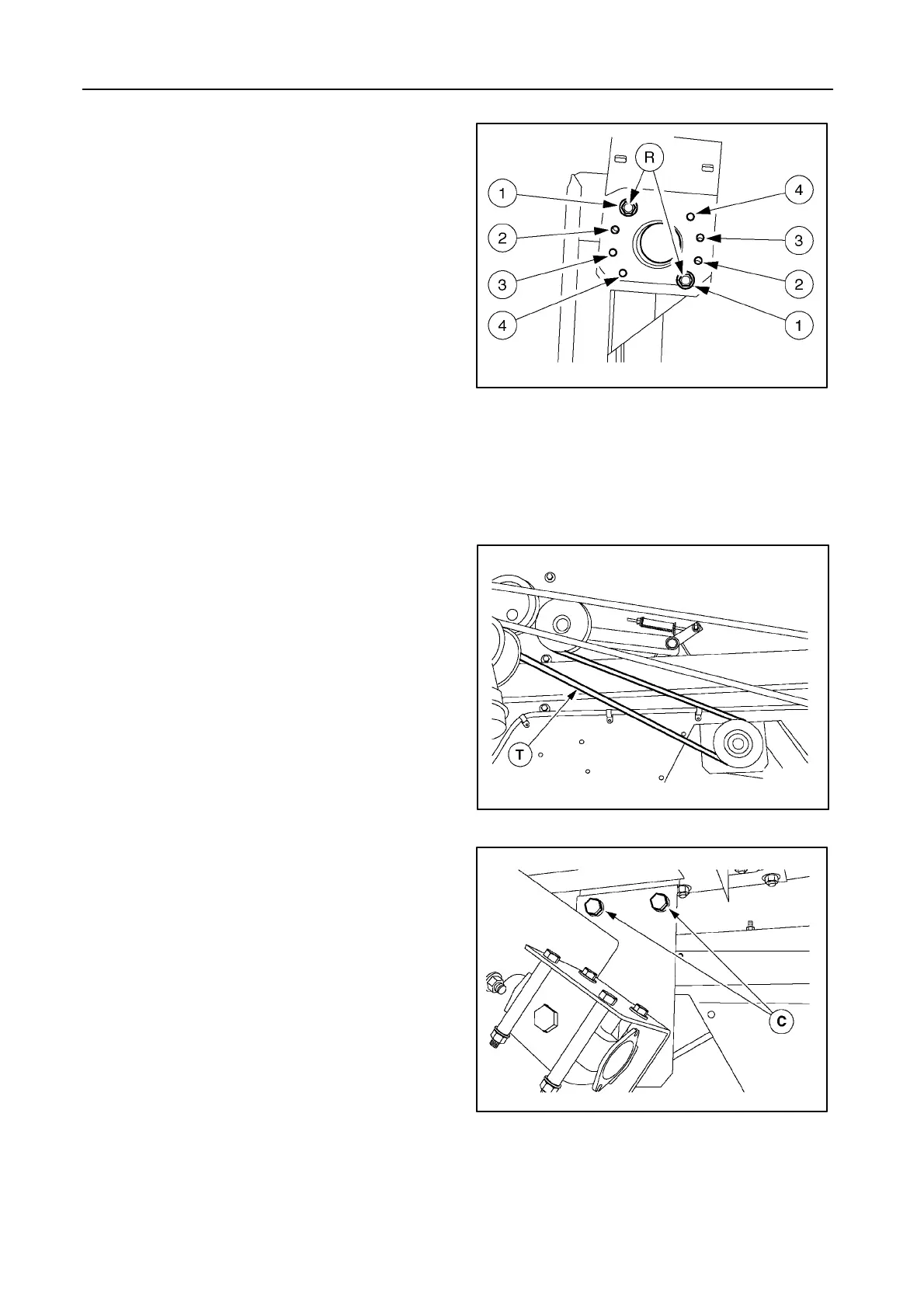

It is possible to adjust the distance between the
sieves and the chaff spreader in the forward postion.
Four distances are available.
To change the distance, proceed as follows:
1. Set the chaff spreader into the vertical position.
2. Remove two bolts R.
3. Reinstall bolts R into position 1-1, 2-2, 3-3 or 4-4
(position 1-1 gives the closest position between
the sieves and the chaff spreader).
4. Set the chaff spreader into the forward position.
DISENGAGING AND REMOVING THE
SPREADER
When not using the chaff spreader or when harvest-
ing maize, remove belt T and leave the chaff spreader
in the vertical operating position.
IMPORTANT:
During field operation, the chaff spreader must
never be located in the swung- up position,
even when it is not being used, as chaff accu-
mulation under the straw walkers may occur!
If too much chaff builds up, the spreader can be re-
moved.
Proceed as follows:
1. Remove belt T (Fig.171).
2. Remove knob L (Fig.168).
3. Remove four bolts B (Fig.169) on the right-hand
side.
54779
170
43207
171
43203
172
