ADJUSTMENTS AND MAINTENANCE
5-8

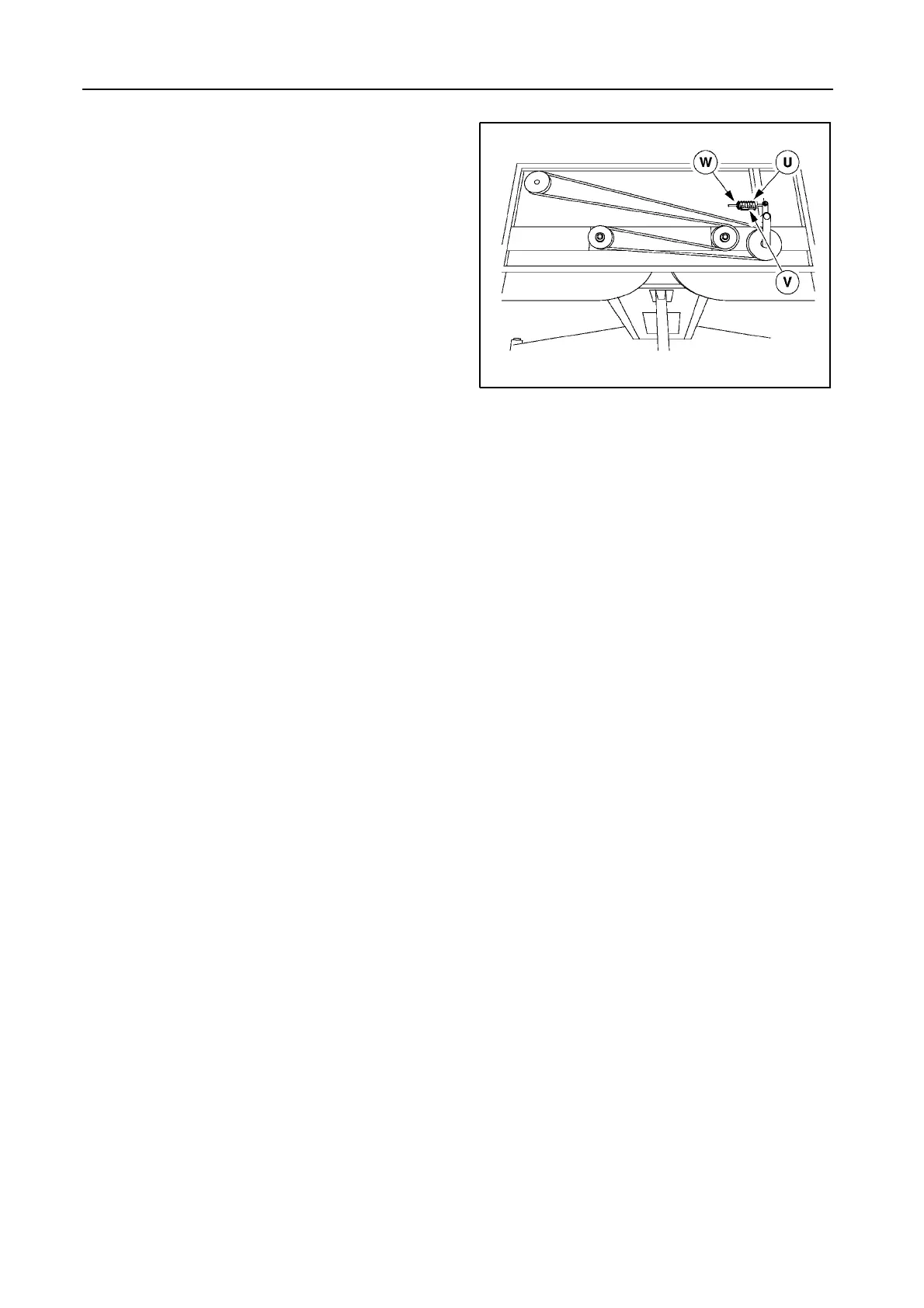

13 CHAFF SPREADER DISCS DRIVE BELT
[if fitted] -- Figure 20
Correct belt tension:
Spring length U = indicator length V.
Adjust with nut W.
20
43208
