SECTION 6
6-17

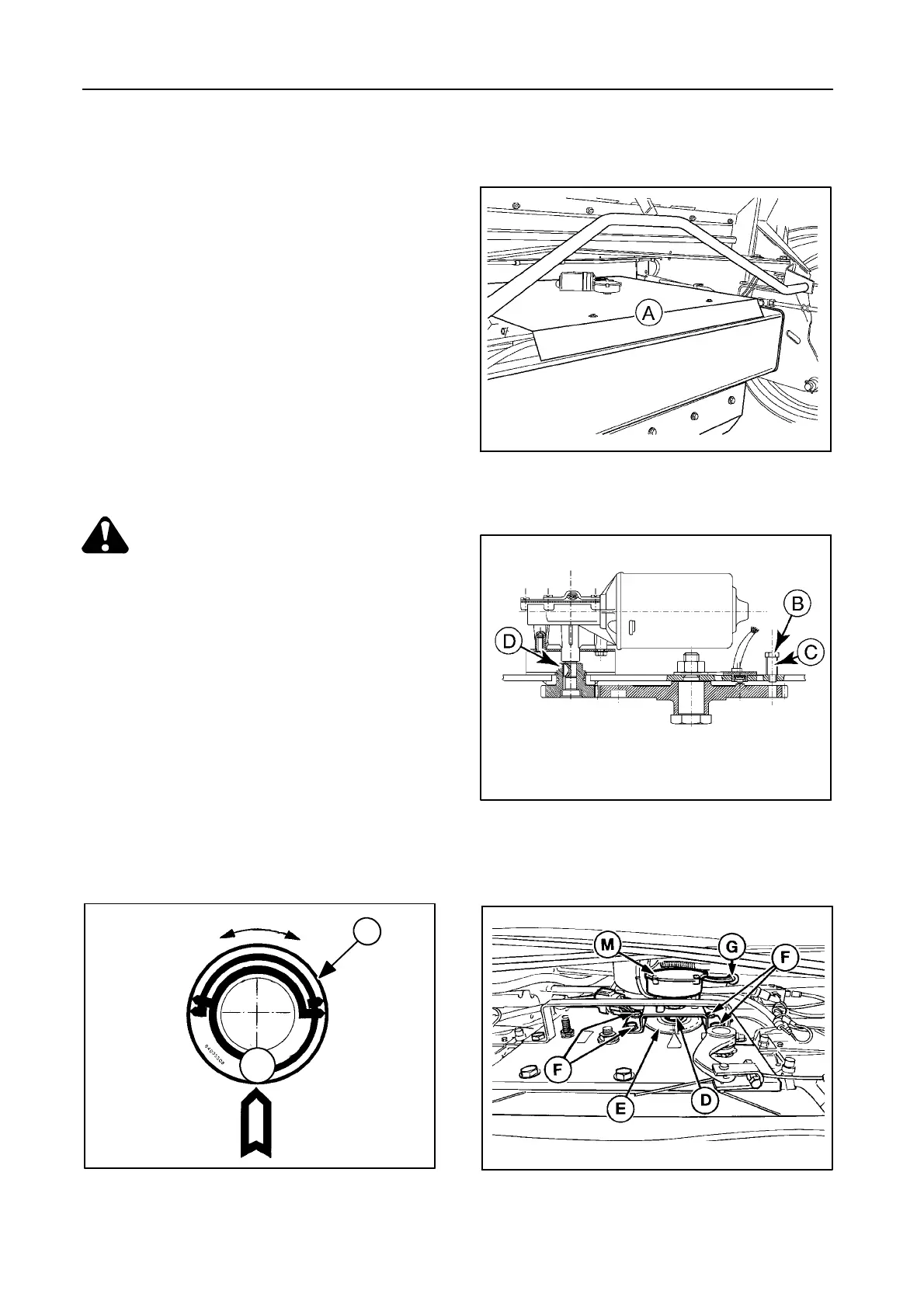

MODEL TX67 -- GEARSHIFTING -- Figures 3 to 6
If not possible to select gears electrically, it can be
done manually proceeding as follows:
1. Remove cover plate A.
2. Open connector G.
3. Remove motor M by loosening four bolts F.
4. Remove bolt B and bushing C.
5. Turn bolt D, underneath motor M, with a 24 mm
open end wrench until decal E indicates the de-
sired position of the traction box. Fully screw in
bolt B to lock the traction box gears.
CAUTION:
Raise the header and engage the header
cylinder safety latch.
