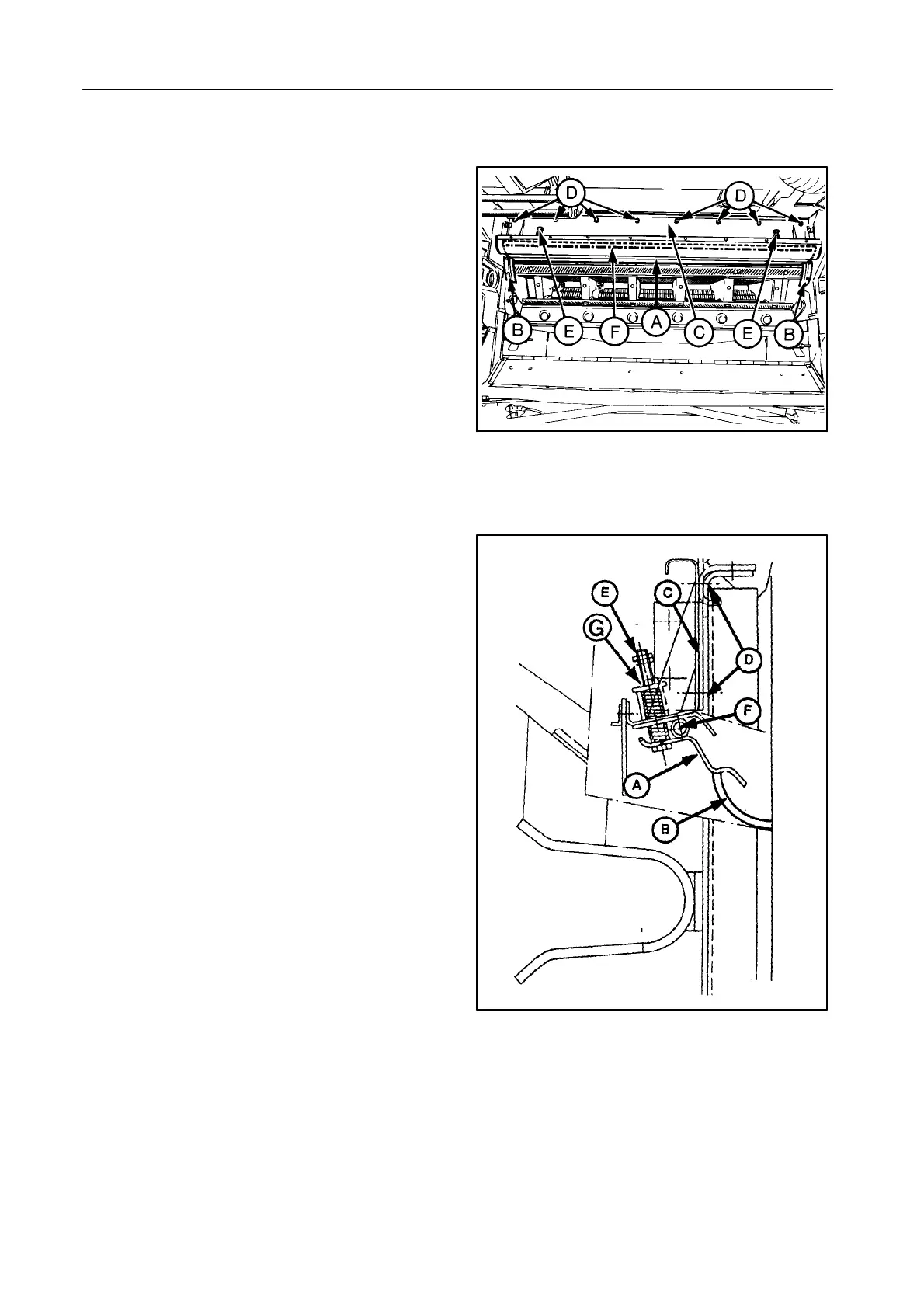

ANTIDUST PLATE -- Figures 36 and 37
Remove antidust plate A and antiwrap shields B when
operating in maize.
Proceed as follows:
1. Remove the straw elevator (refer to paragraph
headed ‘‘Straw elevator removal’’).
2. Unscrew bolts D and remove plate C to which anti-
dust plate A is fitted.
3. Unscrew bolts E, remove rod F and antidust plate
A.
4. Reinstall plate C.
5. Remove antiwrap shields B on both sides.
When reinstalling antidust plate A and antiwrap
shields B, proceed in reverse order of the removal se-
quence and adjust nuts G until there is a clearance of
3 mm between the plate and the drum rasp bars.
