SECTION 4
4-97

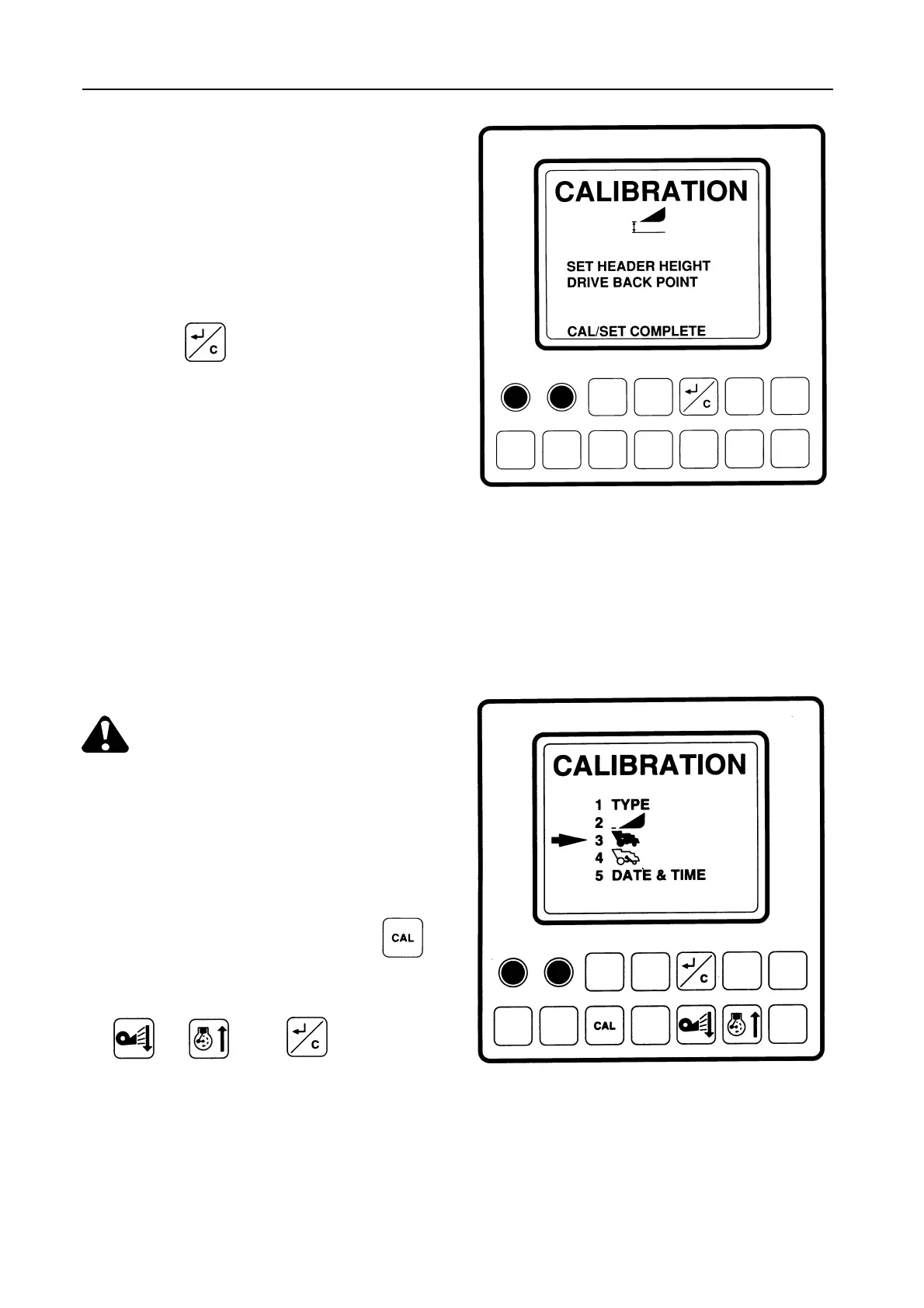

o) Figure 148 - Appearing:
‘‘SET HEADER HEIGHT DRIVE BACK
POINT’’
This is the height to which the header rises
when reversing the combine.
Select this header height with switch 18
(Fig.1).
Press
to validate.
At the bottom of the display appears ‘‘CAL/
SET COMPLETE’’. This means line 2 is now
completely calibrated.
After 5 seconds the monitor will return to the
rpm mode as shown in Figure 84.
Line 3 -- GROUND SPEED
CAUTION:
The ground speed which appears on the
screen can only be accurate if the parame-
ters are correctly programmed. Ask your
New Holland dealer to assist you, if neces-
sary.
1. Enter the calibration mode by pressing
.
2. Select line 3 (‘‘GROUND SPEED’’) by pressing
or , and to validate the
choice.
48186
48151
148
149
