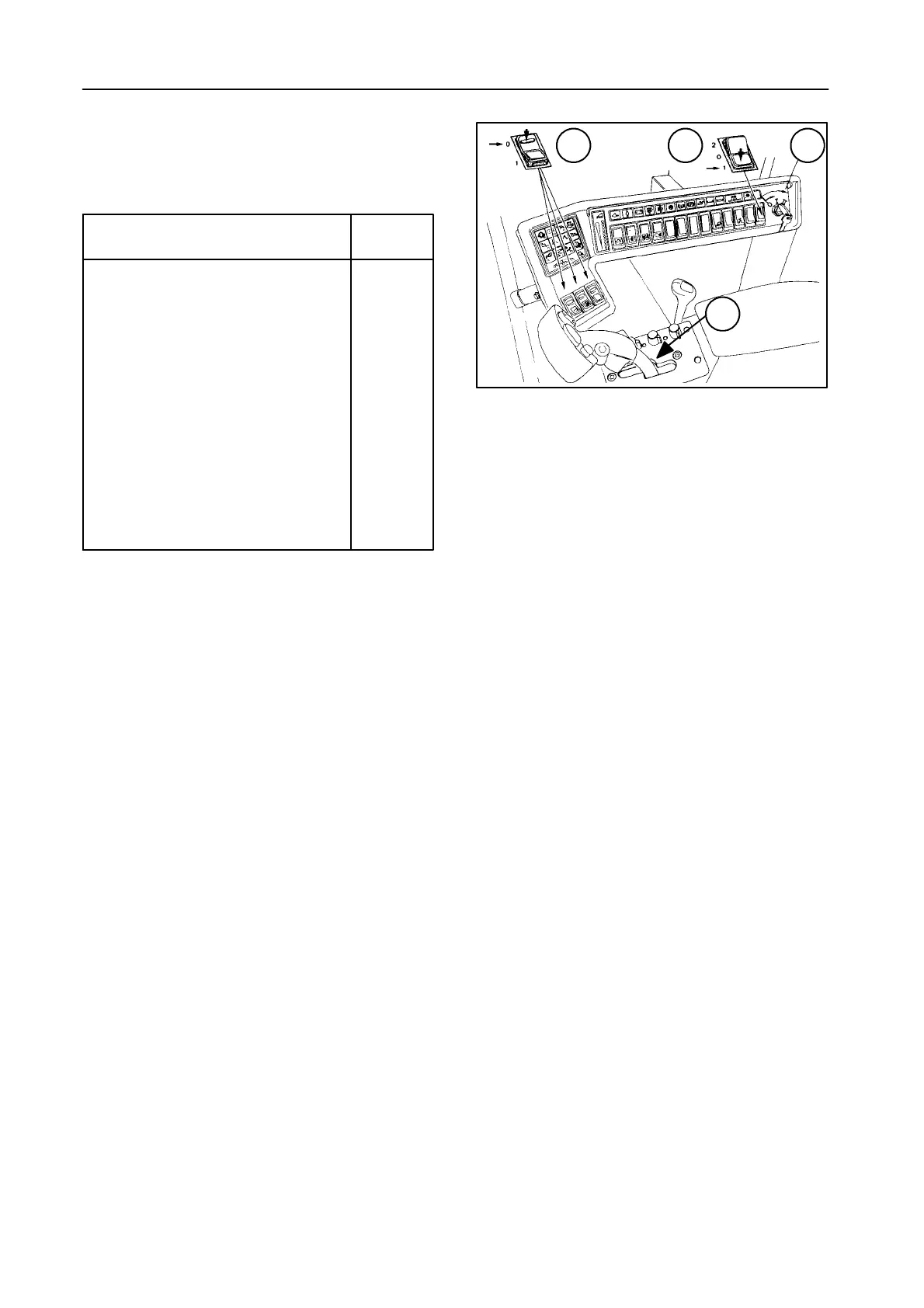

The table below shows a summary of the starting con-
ditions (refer to Figure 37).
Sequence Position
Battery key ON
Header engagement tumbler switch 1
Threshing mechanism engagement
tumbler switch 1
OFF
Unloading system engagement tum-
bler switch 1
OFF
Ground speed control lever 2 Neutral
T urn the ignition key to the contact
position 5
Ignition
ON
Reset the engine with the engine
reset rocker switch 4
--
The engine can now be started by turning the igni-
tion key clockwise to engage the starter motor.
OFF
51381
37
1 4 5
2
STOPPING THE ENGINE
Proceed as follows :
1. Move the throttle switch to its bottom position and
let the engine run at idling speed for one minute.
2. Turn the key counterclockwise to stop the engine.
3. Remove the key from the ignition-and-stop
switch.
4. Apply the parking brake.
