SECTION 1
1-21

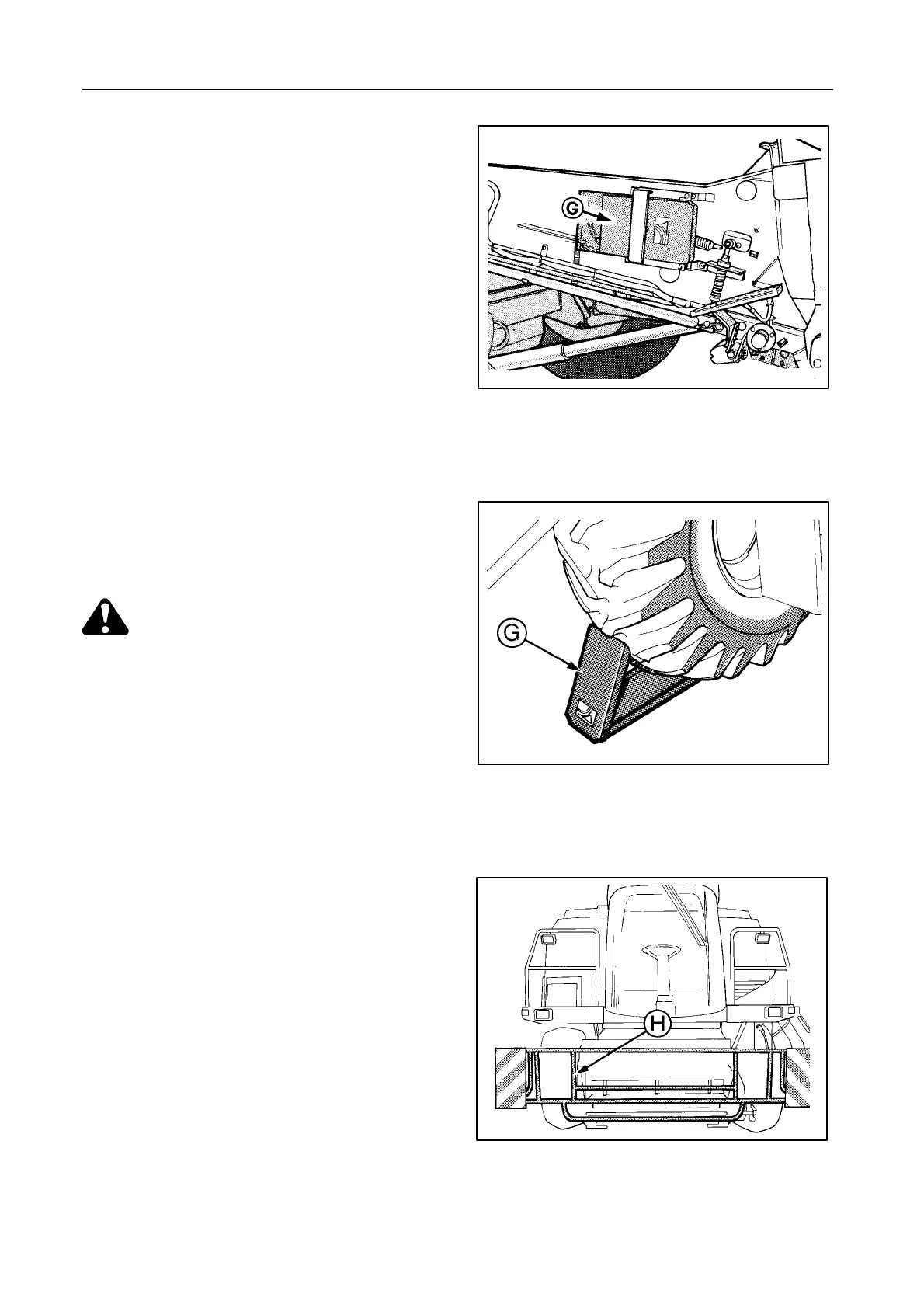

Wheel chock -- Figures 15 and 16
For some countries metal wedges G are stored on the
right-hand side of the straw elevator.
When the machine is parked on a nonlevel surface,
the wedge G has to be placed at the lowest side,
against the traction wheel.
CAUTION:
Do not place the wedges against the
steering wheels.
Safety guard for straw elevator -- Figure 17
For some countries, the safety railing H must be
installed for road transport and secured to the front of
the straw elevator.
15
16
30349
42101
17
42972
