SECTION 5
5-9
DRIVE BELTS AND CHAINS

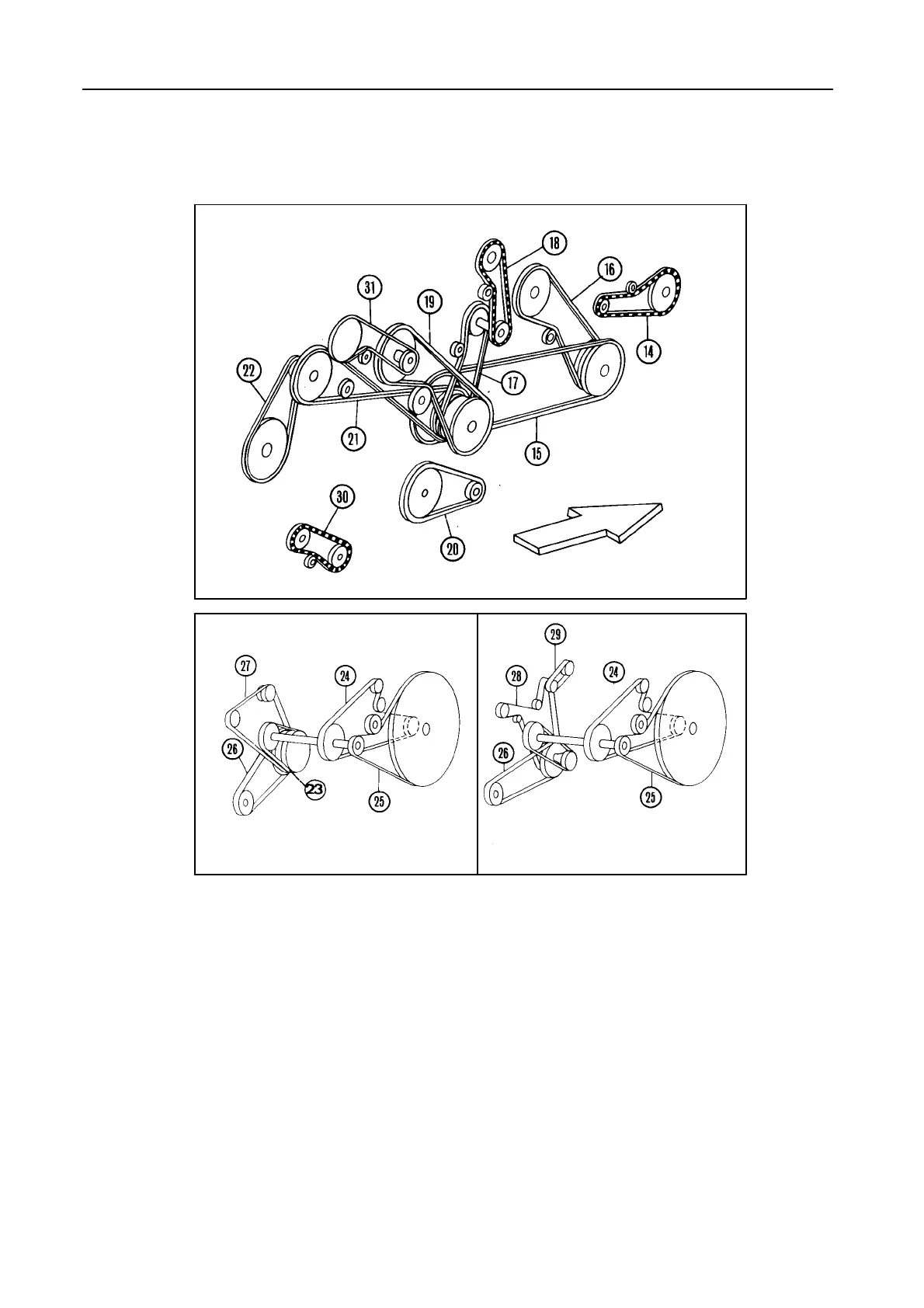

[right-hand side] -- Figure 21
21
30218
30219 30220
TX62-63-64
PLUS
-65
PLUS
-66- 67-68
PLUS
TX68
14 Unloading system drive chain
15 Drum vari-drive belt
16 Beater drive belt
17 Grain storage drive belt
18 Grain elevator drive chain
19 Rotary separator drive belt
20 Cleaning fan vari-drive belt
21 Straw walker intermediate shaft drive belt
22 Straw walker drive belt
23 Cooling system intermediate shaft drive belt
24 Cooling fan drive belt
25 Rotary dust screen drive belt
26 Hydraulic pump drive belt
27 Alternator and air conditioning compressor drive
belt (Model TX68)
28 Alternator drive belt
29 Air conditioning compressor drive belt (Models
TX62-63-64
PLUS
-65
PLUS
-66-67-68
PLUS
)
30 Returns auger drive chain
31 Straw Flow beater drive belt
