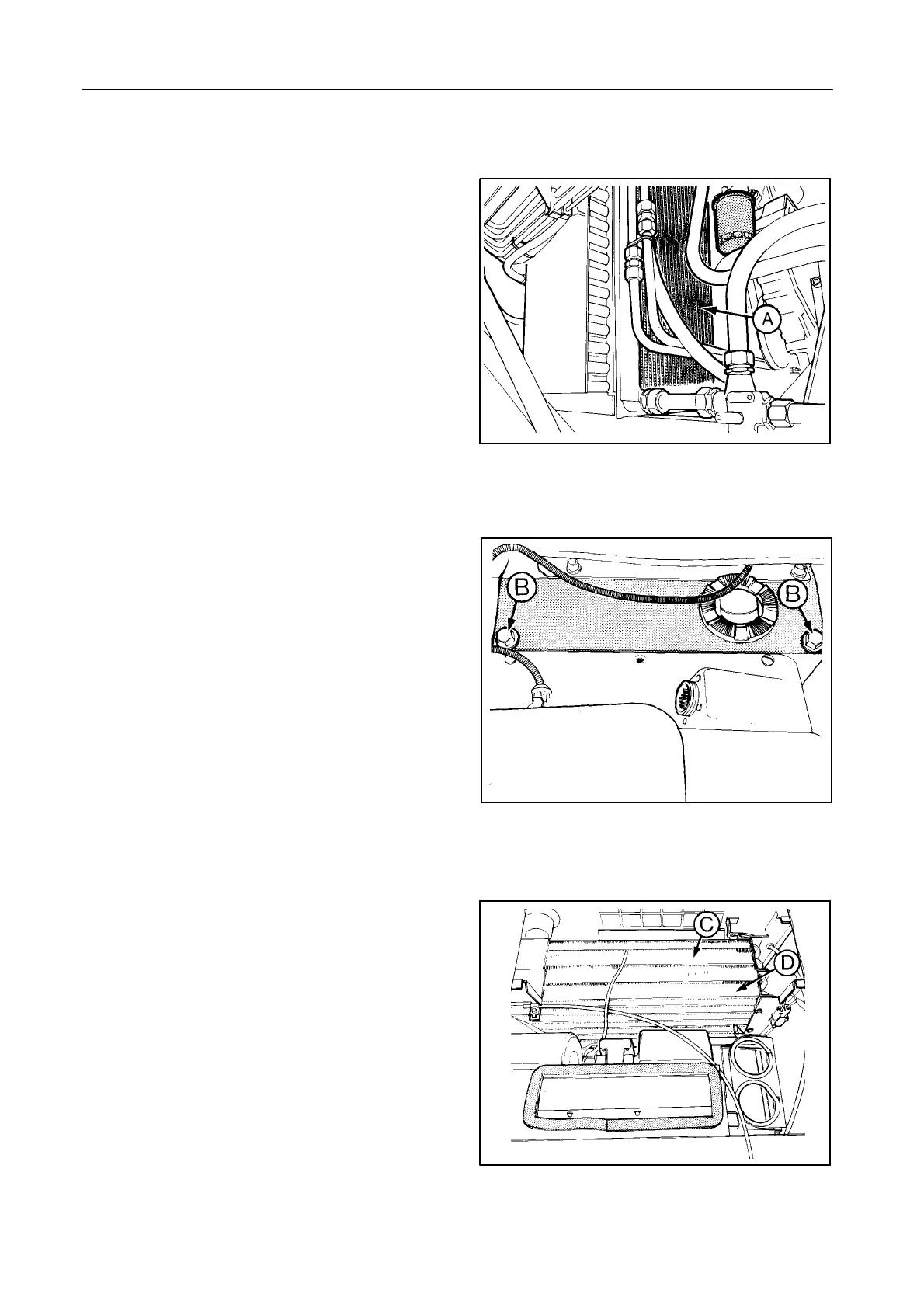

ADJUST
MENT
S
AND
M
AINTE
NANCE
5-
52
AIR
CONDITIONING
CONDENS
ER
-
-
F
igure
92
Regularly
inspect
and
clean
the
condenser
A
with
compre
ssed
air
.
EV
APOR
A
TOR
-
-
F
igures
93
and
94
Ins
pect
and
clean
t
he
evaporator,
if
necess
ary
.
Remove
t
wo
bolt
s
B
and
tip
up
t
he
seat
to
gain
ac
-
cess
to
evapor
ator
C,
heat
ing
r
adiator
D
[if
inst
alled]
and
t
he
ventilat
ion
fans
.
55028
42895
42906
92
93
94
278
280
Table of Contents
Table of Contents
4
Section 1 - Introduction
10
To the Purchaser
10
Product Identification
12
Header Information
15
Important Ecological Considerations
16
Safety Information
17
Battery Warning
22
Safety Decals
23
Protective Devices
29
Header Standard Safety Latch
29
Straw Elevator Additional Support
29
Safety Guard for Straw Elevator
30
Signal Plates
31
Straw Chopper Spreader Chute
32
Fire Extinguisher
32
Driving Downhill
33
Intended Use
34
Access Protection to Engine Compartment
34
Airborne Noise Emission
35
Electromagnetic Compatibility (EMC)
36
Safety Requirements for Fluid Power Systems and Components - Hydraulics
36
Vibration Level Information
37
Legal Obligations
37
Section 2 - Operation
38
Machine Function
38
Feeding
39
Threshing
39
Separation
40
Cleaning
40
Storage
41
Controls and Instruments
42
Emergency Exit
42
Steeing Column and Control Pedals
43
Arm Rest Module
44
Instrument Panel
46
Operating Lights Tumbler Switch Summary
49
Speed Control Module and Header Lateral Float Indicator
52
Console Module
53
Cab Roof Instruments
53
Operator Seat and Surroundings
56
Air-Suspended Seat
56
Fuses and Relays
57
Access to Machine Components
61
Access to Operator’s Platform
61
Before Driving the Combine
64
Starting the Engine
64
Stopping the Engine
66
Driving the Combine
67
Emergency and Parking Brake
68
Gearshifting System
69
Self-Diagnostics
70
Message/Error Report
70
Header Attachment
71
Detaching the Header from the Combine
73
Towing the Combine
74
Wheels and Tyres
74
Tyre Pressure
74
Grease Fittings and Lubrication Intervals
76
Section 3 - Lubrication
76
Oil Level
87
Oil Change
87
Gearbox Capacity
87
Oil Specification
87
Fuel Sulphur Content
89
Recommended Oil and Filter Change Intervals
89
Engine Sump and Filter Capacity
90
Chains
91
Threaded Rods
92
Pivot Points
92
Brake Fluid Level
92
Brake Fluid Change
93
Oil Reservoir
94
Oil and Oil Filter Change
94
Oil Capacity
95
Tracks Lubrication
98
Lubricant Specification
98
Lubrication Schedule
100
Before Starting Operation
102
Section 4 - Field Operation
102
General Information
102
Header Height Controls
103
Operation Modes
104
Transport Operation
104
Compensation Operation
105
Stubble Height Operation
106
Autofloat Operation
107
Flex Header Operation
108
Header Height Control Calibrations
109
Calibration of the Ground Level
110
Calibration of the Maximum Cylinder Pressure
110
Calibration of the Ground Level through Autofloat Sensors
111
Autodiagnostics
112
Error Reports
113
Header and Straw Elevator Reversing System
114
Header And/Or Straw Elevator Blockage - Manual Clearing
116
Reel to Ground Speed Synchronization
116
Straw Elevator Adjustment
119
Straw Elevator Bottom Plate
120
Straw Elevator Intermediate Plate Extension
121
Straw Elevator Removal
123
Stone Trap
125
Grain Pan Access
126
Antidust Plate
127
Drum and Concave
128
Fundamentals of Adjustment
128
Drum Speed
128
Drum Blockage
129
Concave Clearing
129
Changing the Concave Clearance Mechanically
131
Drum Speed Reducer
133
De-Awning Plates
133
Beater
134
Drum and Concave Type Use
134
Adjustable Stripper Plates
134
Toothed Beater Bars
135
Multi-Thresh System
136
Rotary Separator
137
Straw Flow Beater
137
Straw Retarding Curtain
138
Cleaning Shoe
138
Sieves
139
Sieve Removal
140
Types of Sieves Available
141
Hillside Dividers
141
Cleaning Fan
142
Returns System
143
Grain Tank
145
Grain Sample Access
146
Grain Tank Window
146
Grain Tank Unloading Auger
146
Grain Tank Cover
147
Grain Tank Level Sensor
147
Unloading Tube
149
Audible Alarm
149
Shearbolt on the Unloading System
149
Infoview Monitor
150
Automatic Engine Shut-Off
150
Panel Overview
151
Combine Operation Modes
152
RPM Mode
154
Error Reporting System
154
Calibration Mode
154
Engine Load Bargraph A/B
155
Returns Capacity Bargraph
157
Threshing Drum Speed
157
Ground, Cleaning Fan or Engine Speed
158
Concave Clearance
158
Area Counter Mode
159
Threshing Drum Hours
159
Area Count
160
Bottom Text Line
160
Memory Mode
161
Average Area Capacity (Ha/Hour)
161
Distance
161
Memorizing Area Counter Results
161
Memory Screen Bottom Line
162
Selecting Memory Values
163
Clearing Memories
163
Service Mode
164
Service Intervals
164
Error Summary
165
Error Table
167
Calibration
172
Access to the Calibration Mode
172
Select the Correct Language
175
Chopper: Yes/No
176
Lat. Float: Yes/No
176
Cal Lat Float: no
177
Cal Lat Float: Yes - Set
177
Right Return: Yes
179
Units: Metric/Imperial
179
Maximum Engine RPM XXXX
180
Cal Engine RPM: no
180
Be Sure Engine Speed Is Maximum and Press Enter
181
Display Concave: Yes
182
Cal Concave
183
Concave Open and Push Enter
183
Concave Closed and Push Enter
184
Automatic Comp: Yes
184
Cal. Header Speed: no
185
Header Speed Up: 200
185
Header Speed Down: 200
186
Header Speed Fast Down: 200
186
Cal/Set Complete
188
Reel Speed Synchro Gain: 95%
189
Header Width: XXX CM
190
Calibrate Height: no
191
Set Maximum Stubble
192
Set Ground Level
192
Flex Header Installed: no
193
Flex Header Sens: X.XXX
193
Correction Neutral: X.XX
194
Header Rams
194
Speed Factor
195
Is Standard Stubble Height Control Calibrated?: no
195
Calibrate First the Normal Hader Height Control Cal/Set Complete
196
Threshing on and Set Max Stubble Height and Push Enter
196
Threshing on and Set Min Stubble
197
Execute US Calibration and Enter When Done
197
Seat Header Height Drive Back Point
198
Ground Speed Const: XXXX
199
Return Cap Constant: 200
202
Calibrate Return: no
203
Calibrate Return: Yes/Set Threshing On/Set Engine Speed Max
204
Date and Time
204
Calibration Schedule
206
Speed Control Module
208
Differential Lock
209
Straw Chopper
209
Straw Chopper Operation
210
Access to the Straw Chopper Rotor
211
Chopper Knives
211
Counter Knives
212
Chopping Quality
213
Chopping Maize
213
Straw Chopper Clutch
213
Chaff Spreader
214
Disengaging and Removing the Spreader
215
Air Conditioning
216
Combine Performance Checks
217
Kill-Stall
217
Performance Indicators
217
Grain Tank Sample
217
Grain Pan/Upper Sieve Distribution
218
Returns Sample
218
Grain Loss Measuring Kit
219
Losses
219
How to Obtain an Idea on Loss Level
222
Summary of Machine Settings for Different Crops
223
Drive Belts and Chains
228
Section 5 - Adjustments and Maintenance
228
Header Drive Belt
229
Straw Elevator and Header Engaging Belt
229
Unloading System Engaging Belt
230
Main Engaging Belt
231
Cleaning Shoe Drive Belt
232
Eccentric Shaft Drive
232
Roto-Thresher and Returns Cross
233
Regurns Auger Drive Chain
233
Main Drive Belt
233
Straw Chopper Front Drive Belt
234
Straw Chopper Rear Drive Belt
234
Chaff Spreader Drive Belt
234
Chaff Spreader Discs Drive Belt
235
Drive Belts and Chains Diagram
236
Unloading System Drive Chain
237
Drum Vari-Drive Belt
237
Checking Variator Adjustment
239
Beater Drive Belt
241
Grain Storage Belt
241
Grain Elevator Drive Chain
241
Rotary Separator Drive Belt
242
Cleaning Fan Vari-Drive Belt
243
Straw Walker Intermediate Shaft Drive Belt
245
Straw Walker Drive Belt
245
Cooling System Intermediate Shaft
245
Cooling Fan Drive Belt
246
Rotary Dust Screen Drive Belt
246
Hydraulic Pump Drive Belt
246
Alternator and Air Conditioner Compressor Drive Belt
247
Alternator Drive Belt
247
Air Conditioning Compressor Drive Belt
247
Returns Auger Drive Chain
248
Straw Flow Beater Drive Belt
248
Straw Elevator
249
Slip Clutch
250
Threshers Maintenance
251
Front Face Adjustment
251
Roto-Threshers
251
Grain Elevator Maintenance
252
Concave Adjustment
252
Chain Tension
252
Brakes Maintenance and Adjustment
253
Parking Brake Adjustment
253
Foot Brakes
255
Steering Axle
256
Fixed Steering Axle
258
Steering Wheel Stops
258
Steering Ball Joints
258
Adjustable Steering Axle
259
Heavy-Duty Adjustable Steering Axle
261
Rear-Wheel Position
263
Assembly Position of Steering Arm Assembly
264
Minimum Track Width Position
264
Rear-Wheel Driven Steering Axle
266
Engine Maintenance
268
Fuel System
268
Filling the Fuel Tank
268
Fuel Tank Capacity
269
Fuel Prefilter/ Water Separator
269
Fuel Filters
270
Bleeding the Fuel System
270
Cooling System Maintenance
271
Fuel Injection Pump and Injectors
271
Coolant Level
271
Coolant Change
272
Coolant System Capacity
273
Coolant Specification
273
Crankcase Breathing System
274
Rotary Dust Screen and Cooling System
275
Air Intake System
276
Cab Air Filter
278
Air Conditioning - Maintenance
279
Evaporator
279
Filter-Drier
280
Air Compressor
280
Air Reservoir Specification
281
Hydraulic System
282
Hydraulic Hose Replacement
282
Electrical System
283
Relay Module
289
Batteries
289
Alternator
290
Battery Charge Warning Light
290
Maintenance Schedule
291
Feeding Area Troubles
296
Threshing Area Troubles
296
Section 6 - Troubleshooting
296
Threshing, Separation and Cleaning Troubles
298
General Troubles
302
Engine Troubles
303
Straw Chopper Troubles
304
Powered Rear Axle Troubles
306
Hydraulic Valve Electrics Troubles
307
HYDRAULIC VALVE ELECTRICS - Models TX64
309
Plus -65
309
Plus
309
Gearshifts Troubles
312
Remote Parking Brake Troubles
313
Driving the Combine after Manual Reset
314
End-Of-Season Service
316
Section 7 - Storage
316
Ordering Parts And/Or Accessories
317
Preseason Service
318
Accessories
320
Wheels and Tyres Data
336
Section 9 - Specification
336
Wheel Nuts Torque
337
Recommended Tyres and Tyre Inflation Pressures
337
Recommended Traction Tyres Pressures
338
Tyre Selection Chart
338
Dimensions
344
Unloading Tube Position
345
Maize Headers
346
Counterweights
347
Technical Data
348
Index
364
Fuses Table
372
Lubrication Schedule Table
374
Other manuals for New Holland TX62
Assembly Instruction
10 pages
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the New Holland TX62 and is the answer not in the manual?
Ask a question
New Holland TX62 Specifications
General
Brand
New Holland
Model
TX62
Category
Farm Equipment
Language
English
Related product manuals
New Holland TX68
376 pages
New Holland TX67
376 pages
New Holland TX64 Plus
376 pages
New Holland TX65 Plus
376 pages
New Holland T8050
15 pages
New Holland TC48DA
21 pages
New Holland TC5040
358 pages
New Holland TC55DA
21 pages
New Holland CR6090 Tier 4a
81 pages
New Holland CR8090 Tier 4a
81 pages
New Holland CR9090 Tier 4a
81 pages
New Holland AutoCommand T7.275
15 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
