OPERATION
2-34
HEADER

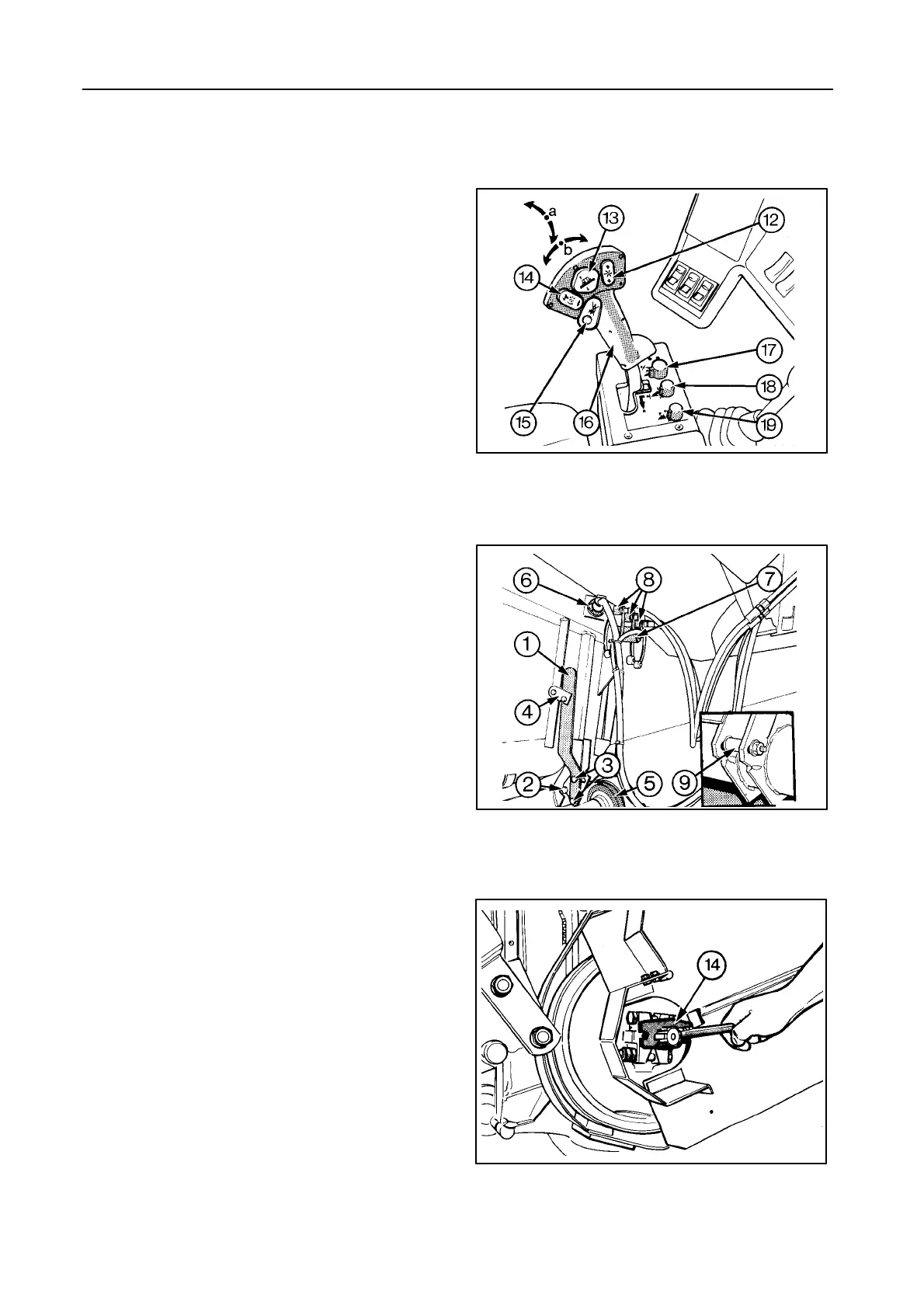

ATTACHING THE HEADER TO THE COMBINE --
Figures 44 to 48
First, position selector switch 17 in the arm rest into
the ‘‘manual control’’ (i.e. rear) position (not applica-
ble for model TX62).
To attach the header to the combine, proceed as fol-
lows:
1. Position the combine to align the straw elevator
with the header aperture.
2. Move the combine to position the straw elevator
against the header. Hook on the header , and
raise the straw elevator and header.
3. Attach the quick-attach lever 1 so that the hooks 2
are in full contact with pins 9. If not, adjust lever 1
with bolts 3 so that some resistance is felt when
engaging latch 4 over lever 1.
4. Connect header drive coupling 5. Use the special
tool 14 fitted to the right-hand side of the straw
elevator to bring the splines of the straw elevator
bottom shaft in line with the splines of the header
p.t.o. shaft.
5. Connect electrical plug 6 and plug 7 [accessory].
42765
42751
55032
44
45
46
