ADJUSTMENTS AND MAINTENANCE
5-36

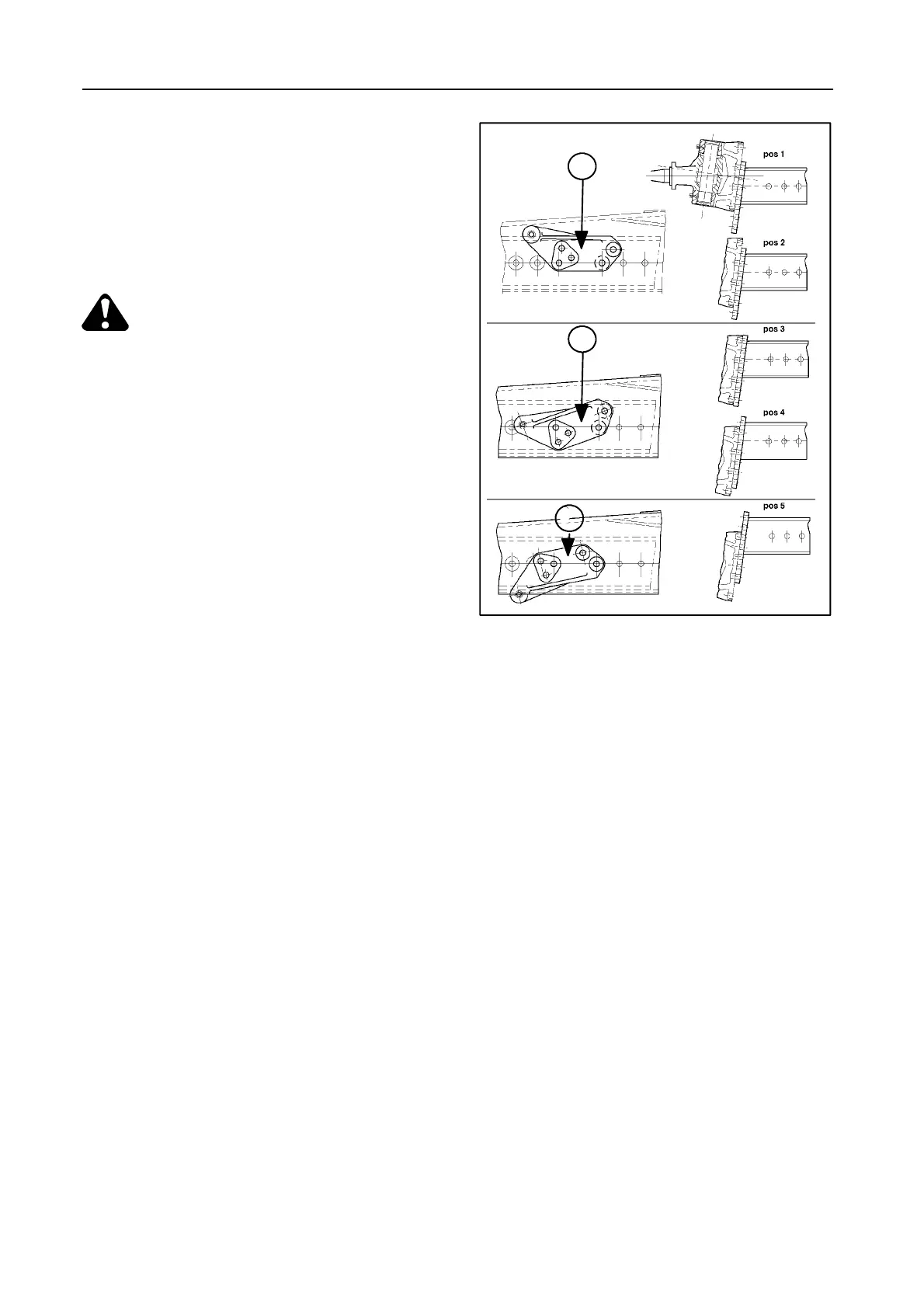

Rear-wheel position -- Figure 73
The complete steering wheel can be repositioned on
the steering axle in order to lift the machine rear end
to a level combine position.
Figure 73 shows the five different positions. Install
steering cilinder support N in the correct position.
CAUTION:
Wheel drive assemblies are heavy. Use a
lifting device of adequate capacity. Re-
position one side at a time.
The bolts should be tightened to 485 Nm.
Adjust the toe-in as described previously.
43172
73
N
N
N
