OPERATION
2-16

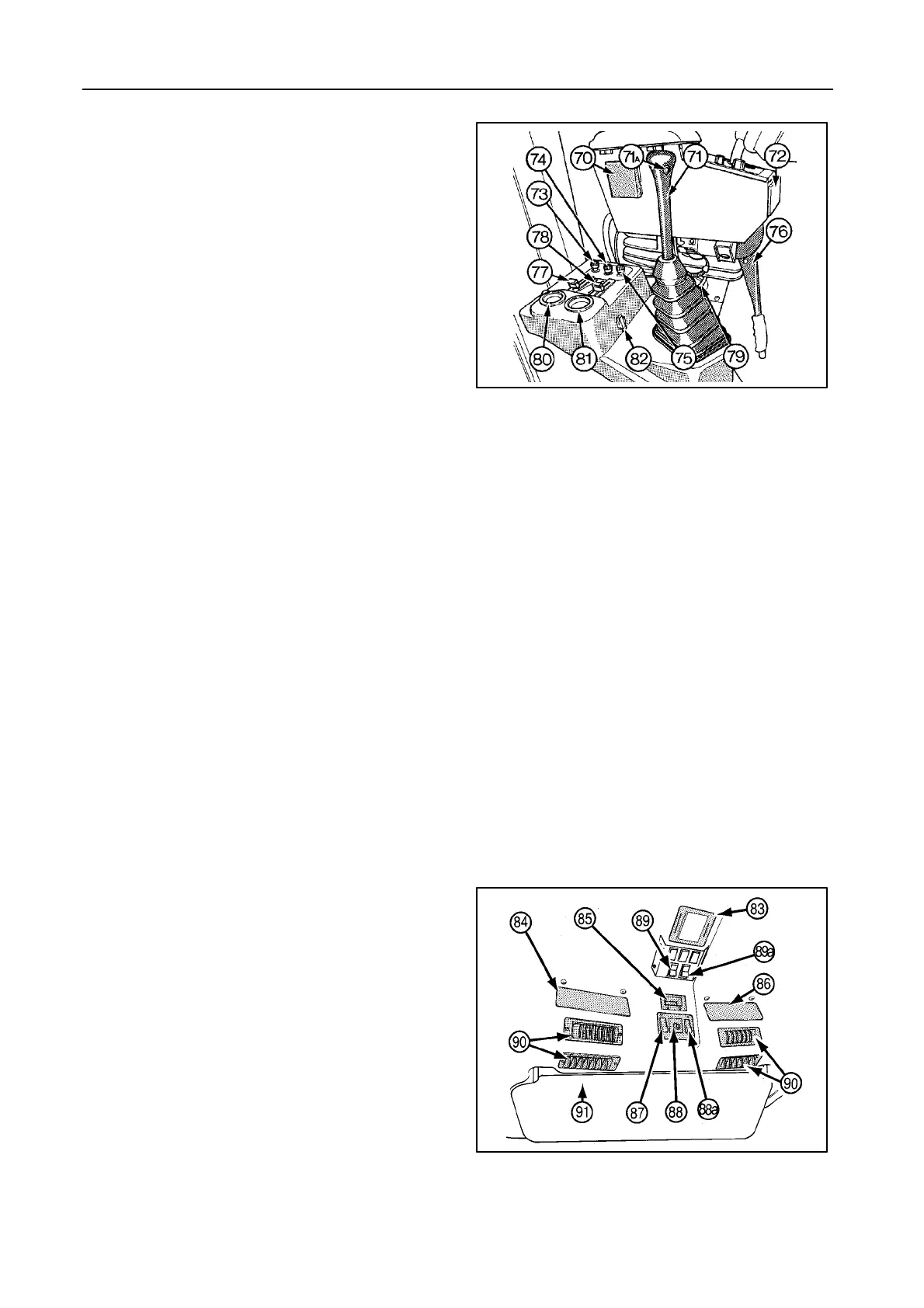

CONSOLE MODULE -- Figure 12
70 Drink storage space
71 Gearshift lever (All models, except TX67)
71A Hydrostatic oil pressure release button
(Push this button while shifting gears to take
away the hydrostatic oil pressure on the gear-
box)
(All models, except TX67)
72 Ashtray
73 Heater control switch [if installed]
74 Fan speed control switch (3-speed)
75 Air conditioning control switch
76 Parking brake (All models, except TX67)
77 Air recycling control lever
78 Air vent control lever
79 Adjustable air vent
80 Fuel gauge
81 Engine coolant temperature gauge
82 12-Volt DC socket (live at all times)
CAB ROOF INSTRUMENTS -- Figures 13 to 16
83 Cab interior light
- Left-hand side: ON/OFF switch
- Right-hand side: beam direction control
84 CB radio location with 12-volt DC connection and
CB antenna connection.
The CB antenna can be connected into the sock-
et located outside the cab above the cab door .
85 Clock
Clock setting: H = hours, M = minutes
42760
12
42757
13
