FIELD OPERATION
4-48
UNLOADING TUBE
A warning light is provided in the cab to alert the op-
erator when the unloading tube is not in the fully
closed position as this may be an operating hazard in
fields with trees, high tension wire pylons, telegraph
poles, etc.

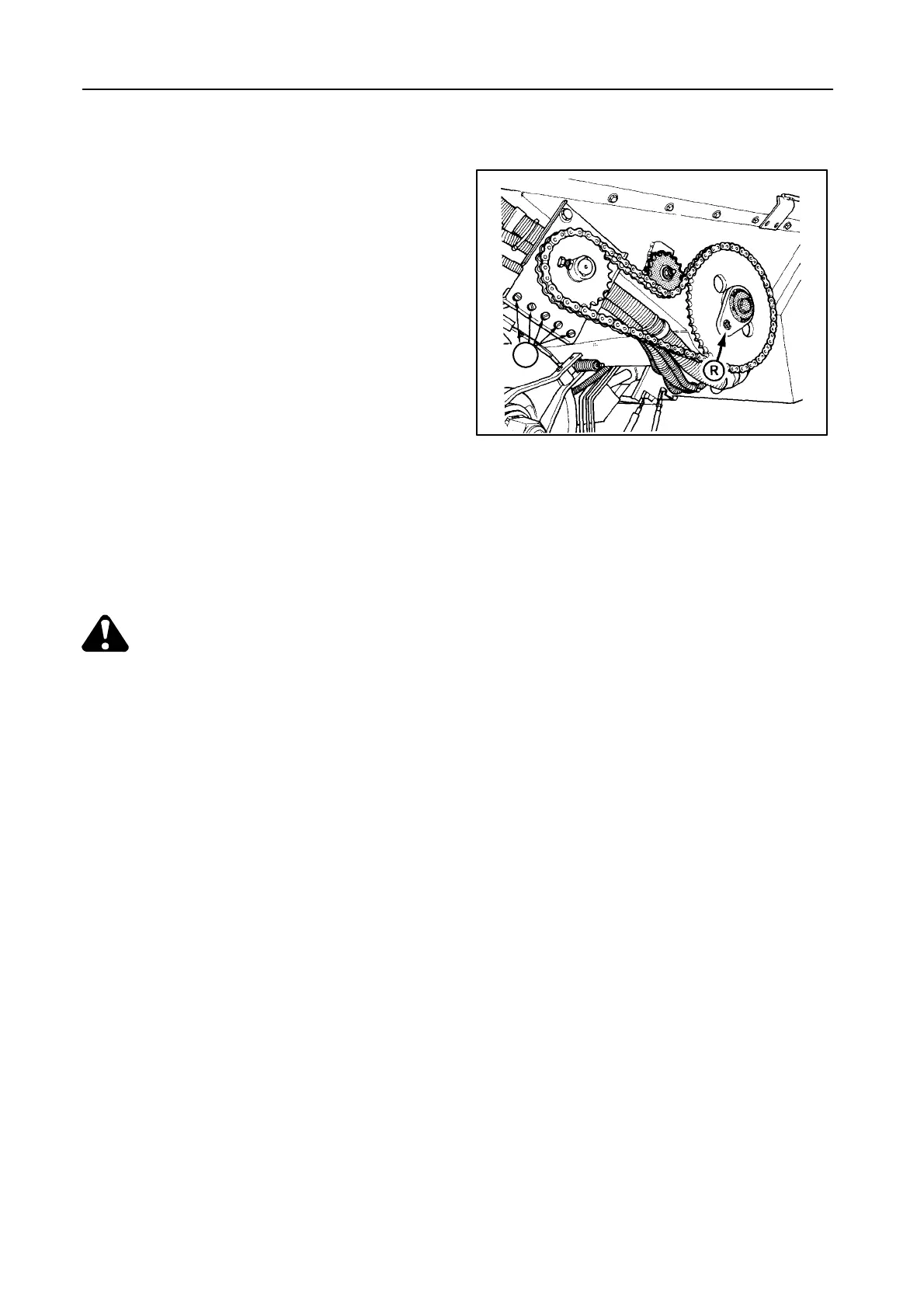

SHEARBOLT ON THE UNLOADING SYSTEM
DRIVE -- Figure 81
The unloading system drive is protected by a shear-
bolt R.
Spare shearbolts are located at S.
IMPORTANT:
S Tighten the bolt with a screwdriver holding
the nut with a wrench.
S Use only genuine shear bolts.
DANGER:
When opening the unloading tube or
driving with open unloading tube, ensure
that the tube cannot touch electric wires.
42807
81
S
AUDIBLE ALARM
An audible signal (buzzer) is linked to the following
elements:
S Excessive hydrostatic and hydraulic oil tempera-
ture sensor (+ warning light)
NOTE:
If excessive oil temperature causes the alarm
to function, try to locate the defect or contact
your dealer for assistance.
S Handbrake (+ warning light)
S Straw chopper guide plate (no warning light)
S Grain tank level indicator 70% (5 seconds)
(+ warning light)
S Grain tank level indicator 100% (2 seconds)
(+ message on InfoV iew monitor)
S Direction indicators
A separate audible signal (buzzer) is linked to:
S The rpm control monitor (5 seconds)
S The ‘‘error report’’ system of the Infoview monitor
(5 seconds)
S The straw walker protection (as long as the switch
of the straw walker protection is being pressed)
NOTE:
When the alarm is functioning, try to locate the
defect or contact your dealer for assistance.
