SECTION 4
4-45

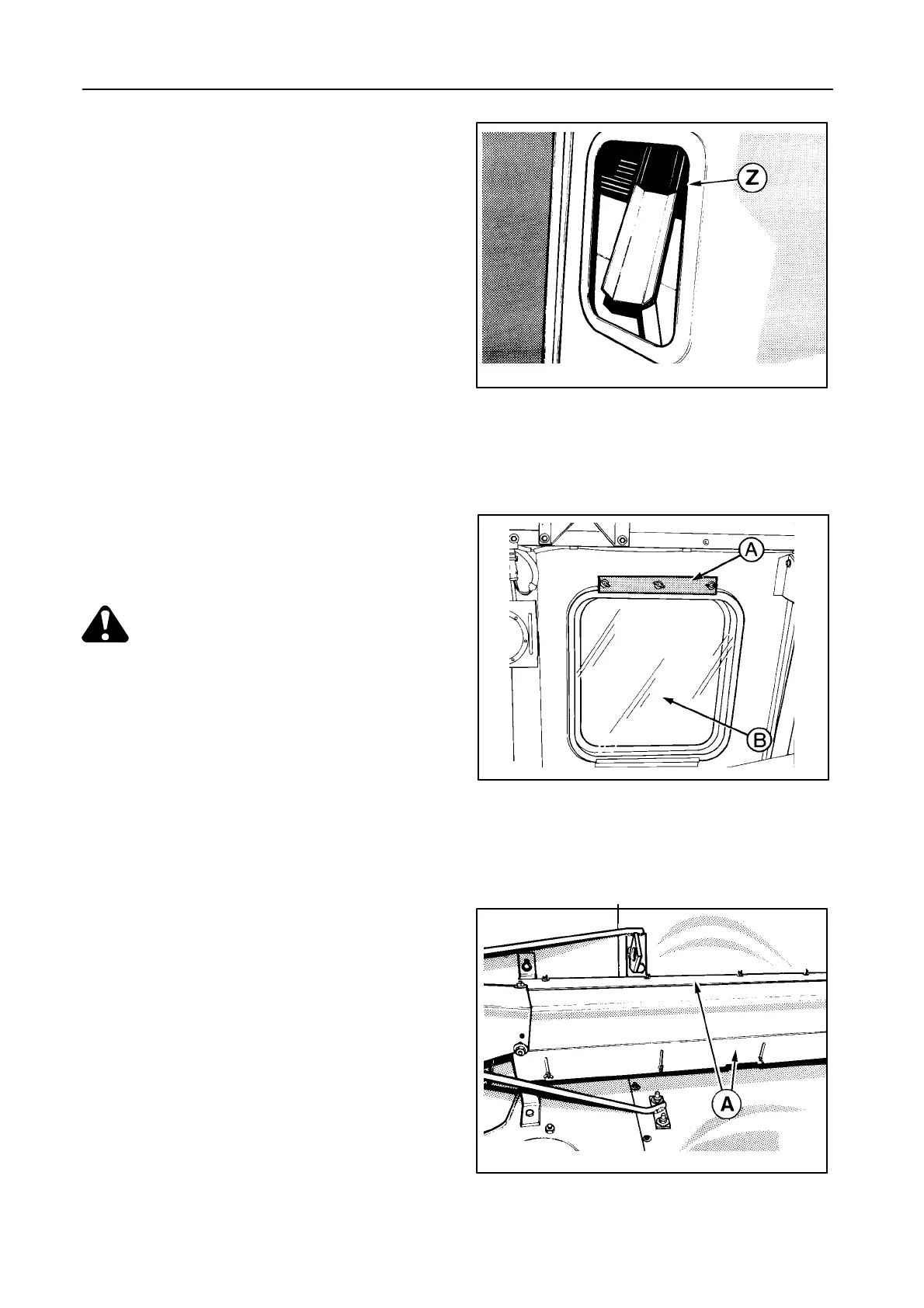

GRAIN SAMPLE ACCESS -- Figure 72
The grain tank is provided with an inspection window
Z where a grain sample can be taken when starting
off in the field. A channel section in the grain tank
brings the grain to the inspection window.
GRAIN TANK WINDOW -- Figure 73
The window between the grain tank and the cab can
be cleaned as follows :
CAUTION:
Shut off the engine and remove the igni-
tion key before entering the grain tank.
1. Enter the grain tank at the rear over the engine
cover and remove strip A. See Section 2, page 25.
2. Remove the grain tank window B to clean the area
between the cab window and the grain tank.
GRAIN TANK UNLOADING AUGER -- Figure 74
A cover plate is fitted over the grain tank unloading
auger. This cover plate is fitted with plates A which
can be adjusted to regulate the unloading rate accord-
ing to the nature and moisture content of the grain be-
ing handled.
Raise the plates to increase the unloading rate and
lower them to reduce it.
