SECTION 5
5-5
5 CLEANING SHOE DRIVE BEL T

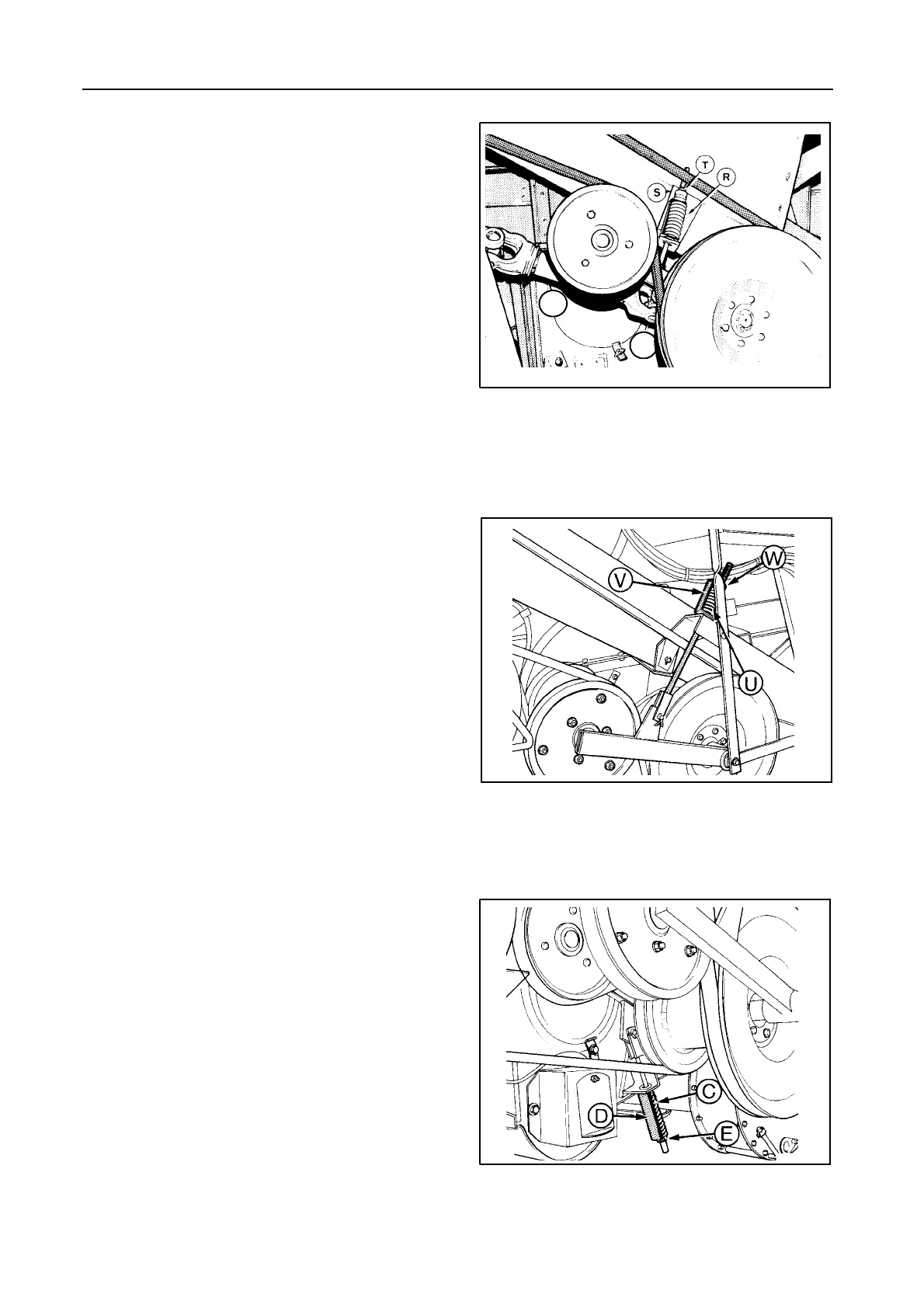

S Self-levelling cleaning shoe -- Figure 11
Correct belt tension:
Spring length R = indicator plate length S.
Adjust with nut T.
S Fixed cleaning shoe -- Figure 12
Correct belt tension:
Spring length U = indicator plate length V.
Adjust with nut W.
6 ECCENTRIC SHAFT DRIVE
S Self-levelling cleaning shoe -- Figure 11
Drive shaft halves A and B can only be con-
nected together in one position of the splines.
S Fixed cleaning shoe -- Figure 13
Correct belt tension:
Spring length C = indicator plate length D.
Adjust with nut E.
11
12
13
21072
42938
42933
A
B
