INTRODUCTION
1-20
PROTECTIVE DEVICES

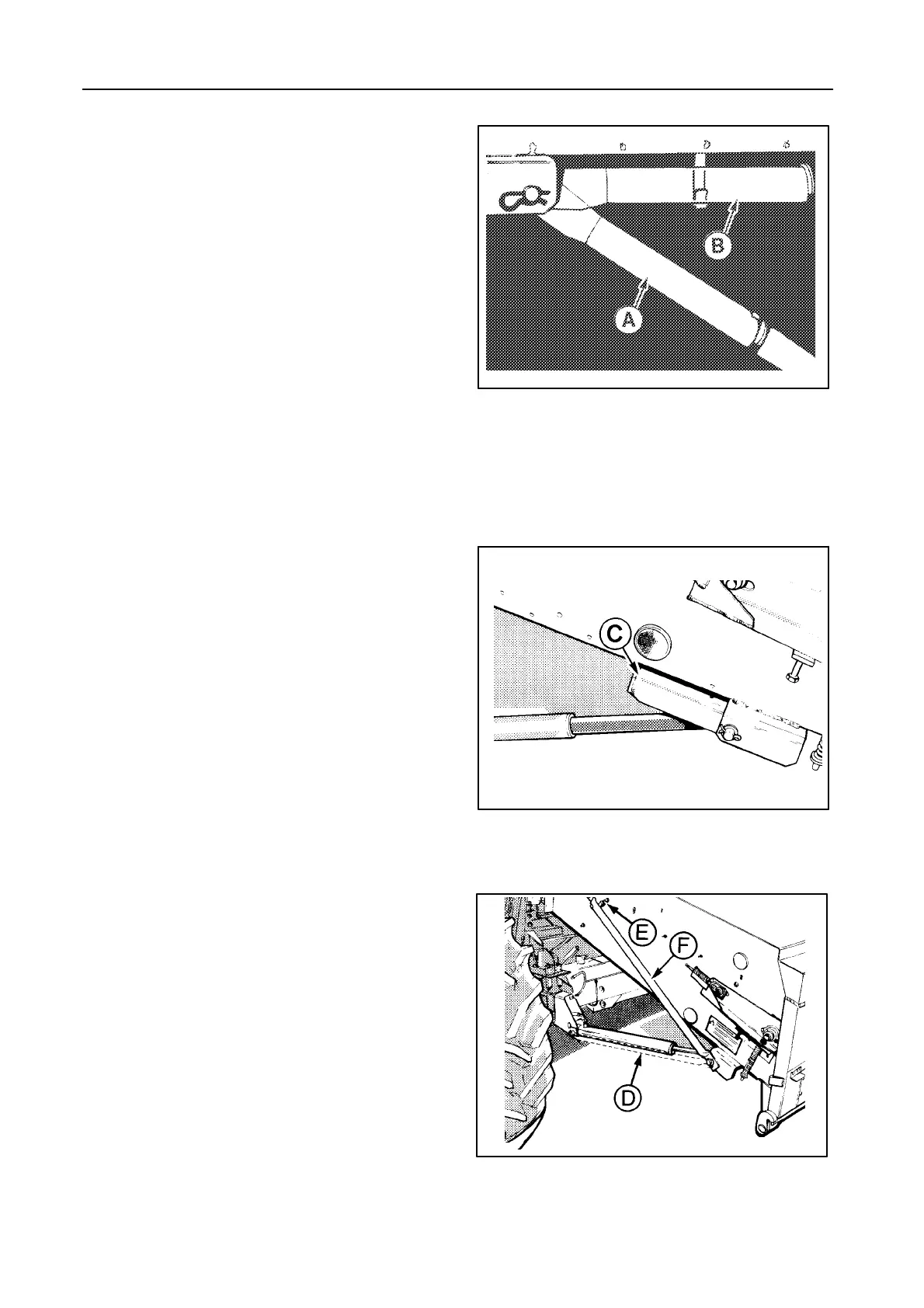

Header standard safety latch -- Figure 12
The left-hand header cylinder is standard fitted with a
safety latch which must be lowered onto the cylinder
rod to prevent accidental lowering of the header.
Whenever work is carried out underneath the header,
the latch must be lowered onto the cylinder rod as
shown at A.
When not in use the header safety latch must be
stored as shown at B.
ATTENTION:
Do not use the safety latch A as a support for
the header when travelling along public roads
otherwise damage may occur to the cylinder.
Header additional safety latch -- Figure 13
For certain countries a small safety latch C is fitted
onto the right-hand cylinder . It must be lowered onto
the cylinder rod when driving on public roads to
prevent accidental lowering of the straw elevator.
When a flip-up maize header is attached to the straw
elevator, a special safety latch (provided with the
machine) must be installed and lowered onto the
cylinder rod when driving on public roads.
Straw elevator additional support -- Figure 14
For certain countries there is a legal obligation to have
an additional support F installed on the right-hand
side of the straw elevator. This support must be
placed in position D whenever the machine is driven
on public roads.
When not in use, support F can be stored in bracket E.
When a maize header is attached to the straw
elevator, a special support F (provided with the
machine) must be installed and used when driving on
public roads.
12
13
20259
21108
14
21106
