SECTION 5

5-47

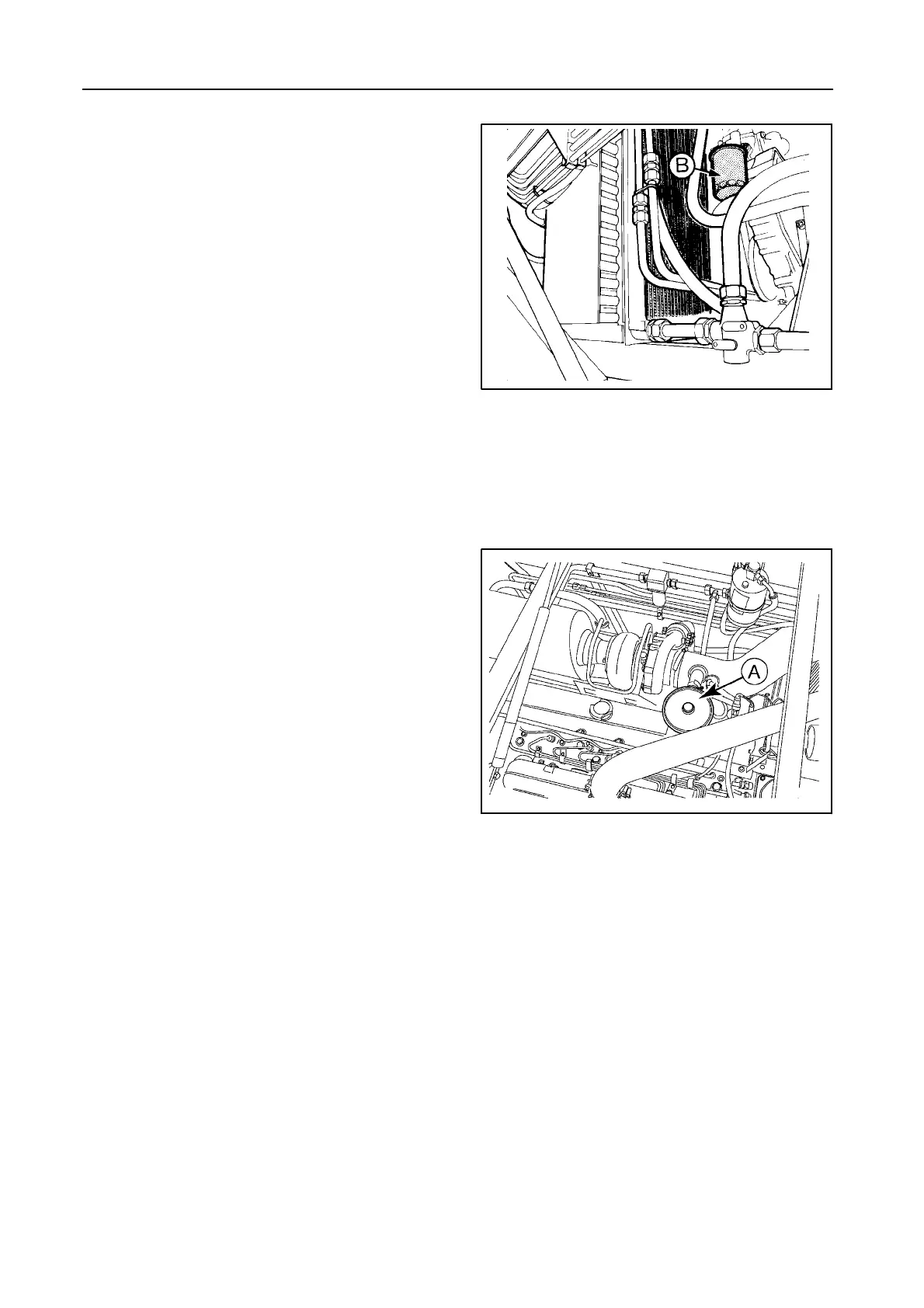

Water conditioner element B

[Model TX68-68

PLUS

only] -- Figure 84

Replace the element every 400 operating hours or

once a year, whichever comes first.

CRANKCASE BREATHING SYSTEM -- Figure 85

The crankcase is vented through the valve cover and

housing A to the inlet tube.

The crankcase breathing system does not need to be

serviced.

CYLINDER HEAD BOLTS

The cylinder head bolts do not require retightening

during normal service intervals.

30837

42932
