TROUBLESHOOTING
6-18

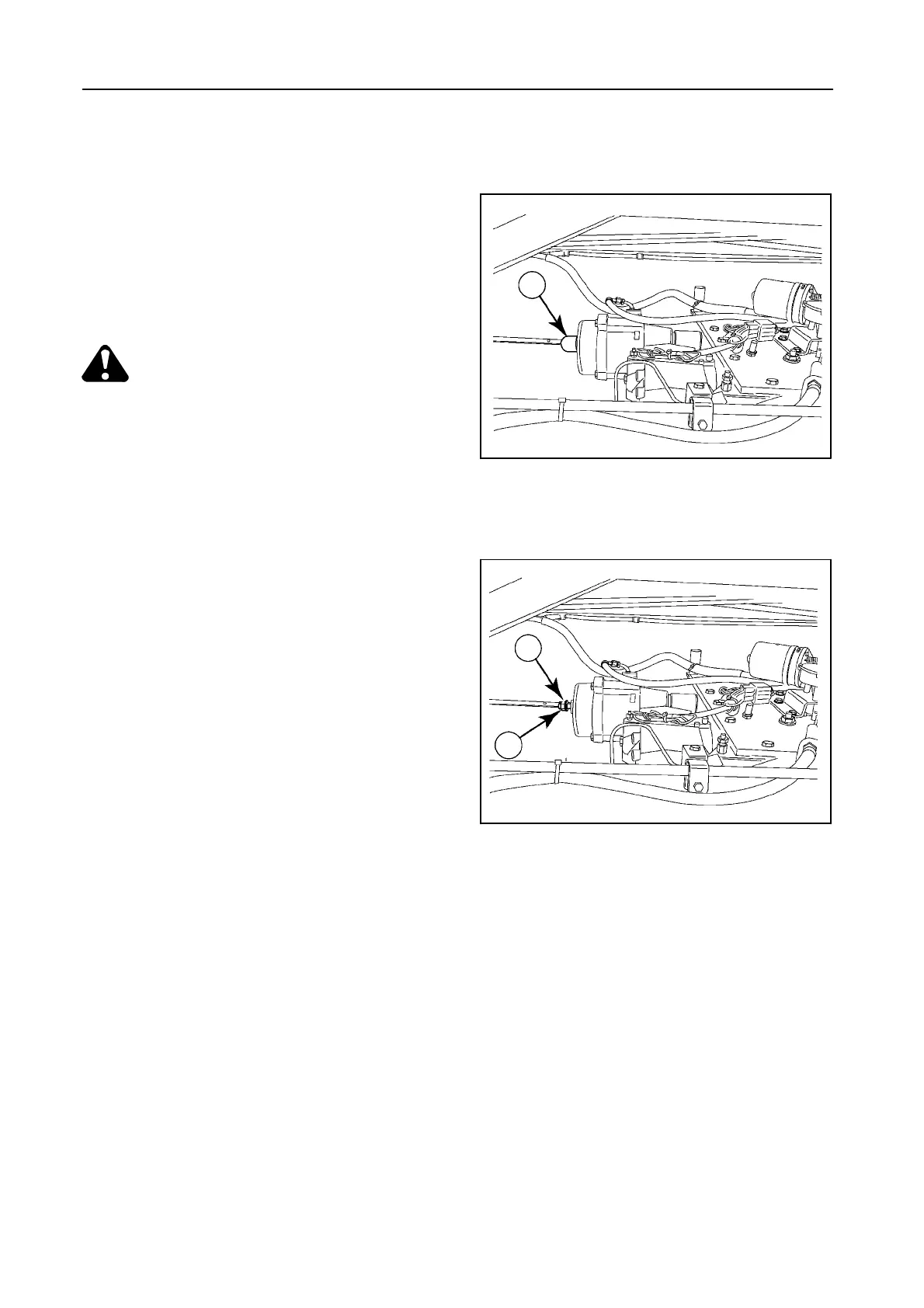

MODEL TX67 -- REMOTE PARKING BRAKE -- Figures 7 and 8
If not possible to release the handbrake electrically, it
is possible to do it manually proceeding as follows:
1. Remove rubber cap G.
2. Remove cotter pin H and turn nut J until the re-
lease of the parking brake disc.
CAUTION:
S Raise the header and engage the
header cylinder safety latch. Stop the
engine.
S Be sure the combine is securely
blocked to prevent runaway of the
combine.
S Be aware that the emergency brake
does not operate when the brake is
manually disengaged.
7
30840
G
8
H
J
30839
