SECTION 3
3-17
Threaded rods
Lubricate the following rods every 200 operating
hours:
S Drum variator
S Fan variator
Lubricate all threaded rods of the s pring-loaded idlers
and all other threaded rods where adjustments are
carried out at least once a season.
Pivot points
It is recommended to oil all pivot points (including
guard pivot points) which may become stiff from cor-
rosion or dirt every 200 operating hours.

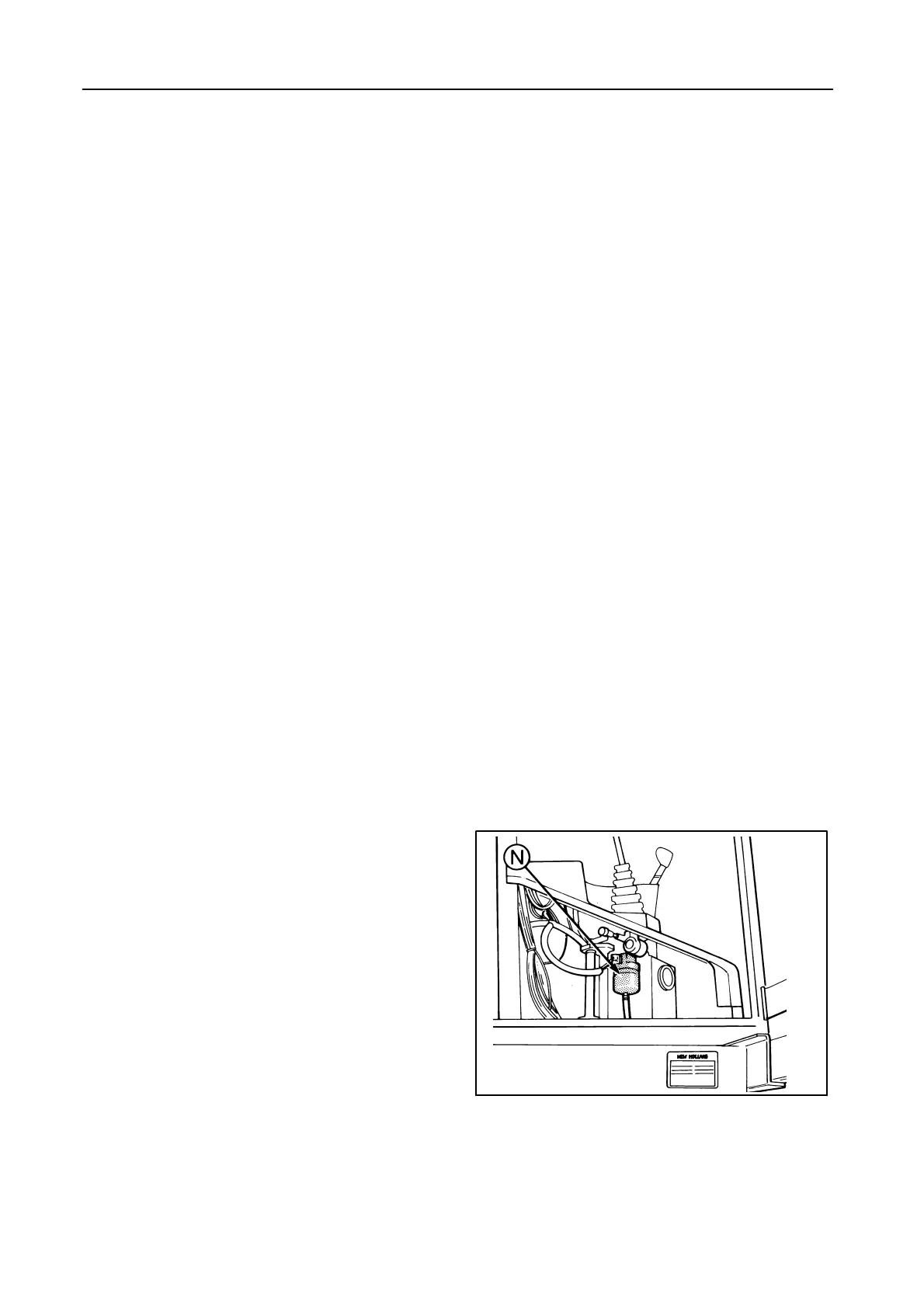

BRAKE FLUID -- Figure 67
Fluid level
The fluid level is electrically controlled.
The warning light (Section 2 , Fig. 10 - item 31) will illu-
minate whenever the fluid level is too low or the brake
linings are worn.
The reservoir is accessible from the outside of the cab
after opening the right-hand cab door.
