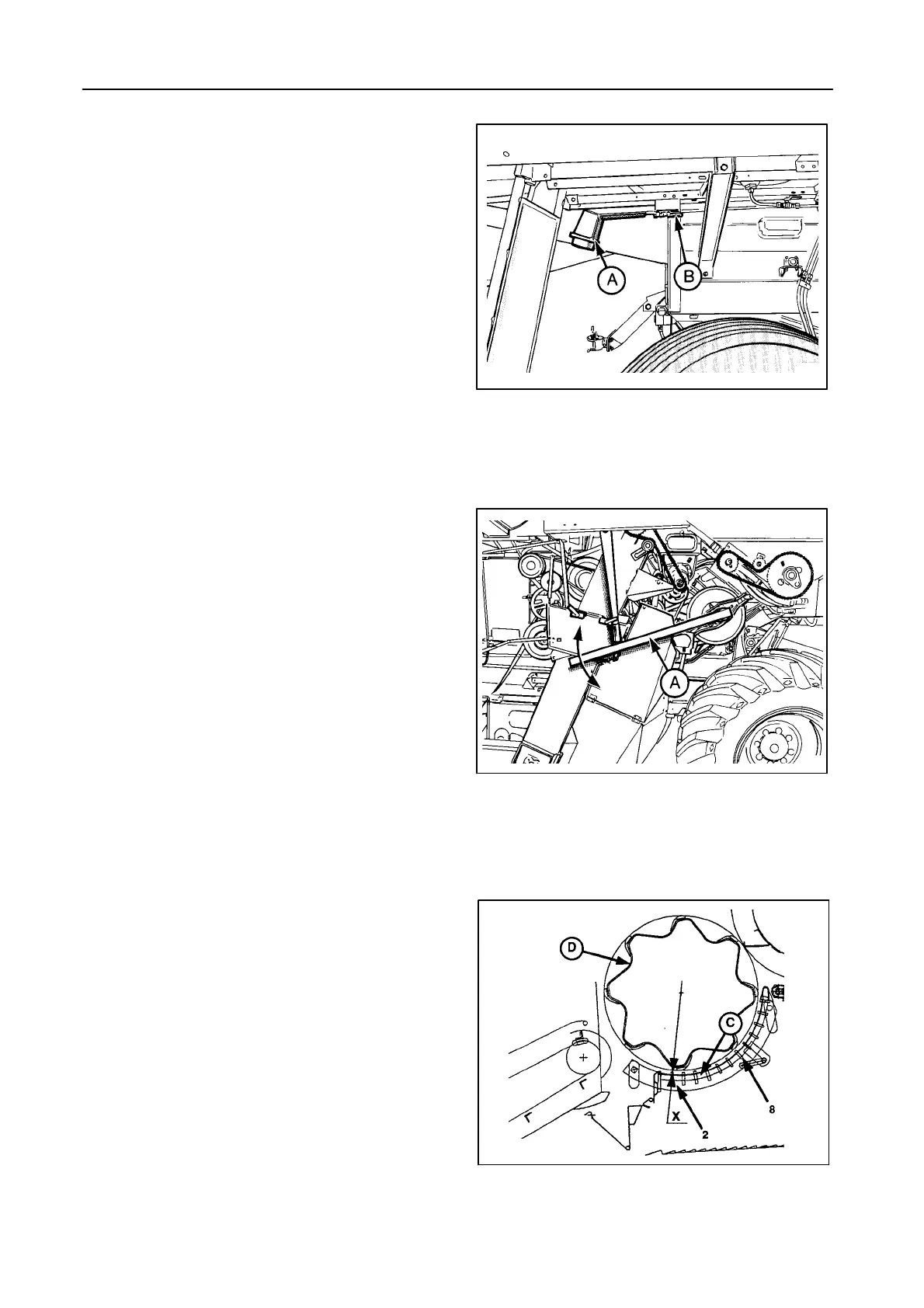

DRUM BLOCKAGE -- Figures 38 and 39
Should the drum become blocked, proceed as fol-
lows:
1. Lower the concave to its lowest position and try to
unblock by engaging the threshing mechanism at
low engine speed.
2. If this is ineffective, try to unblock the drum by us-
ing the drum socket wrench A (i.e. when the stan-
dard drum variator is fitted).
The drum socket wrench A is located under the
fuel tank and is secured with latch B.
CONCAVE CLEARANCE
S Adjustment from the operator’ s seat:
Models TX62-63:
Manual adjustment with the concave setting lever.
Models TX64
PLUS
-65
PLUS
-66-67-68-68
PLUS
:
Electrical adjustment (refer to Section 2 - OPERA-
TION)
S Mechanical adjustment:
Refer to paragraph headed ‘ ‘Changing the clear-
ance mechanically’’ further in this section.
Basic settings -- Figure 40
When the combine is shipped from the factory, con-
cave C is set parallel to drum D (front and rear) with a
clearance X of 10 mm.
Models TX62-63:
The concave clearance X of 10 mm is reached with
the concave setting lever in position 2 on the quad-
rant, i.e. the second highest position.
Models TX64
PLUS
-65
PLUS
-66-67-68-68
PLUS
:
The concave clearance can be read from the In-
foView monitor when the rpm mode is selected. Refer
to paragraph headed ‘‘InfoView monitor’’.
