LUBRICATION
3-12

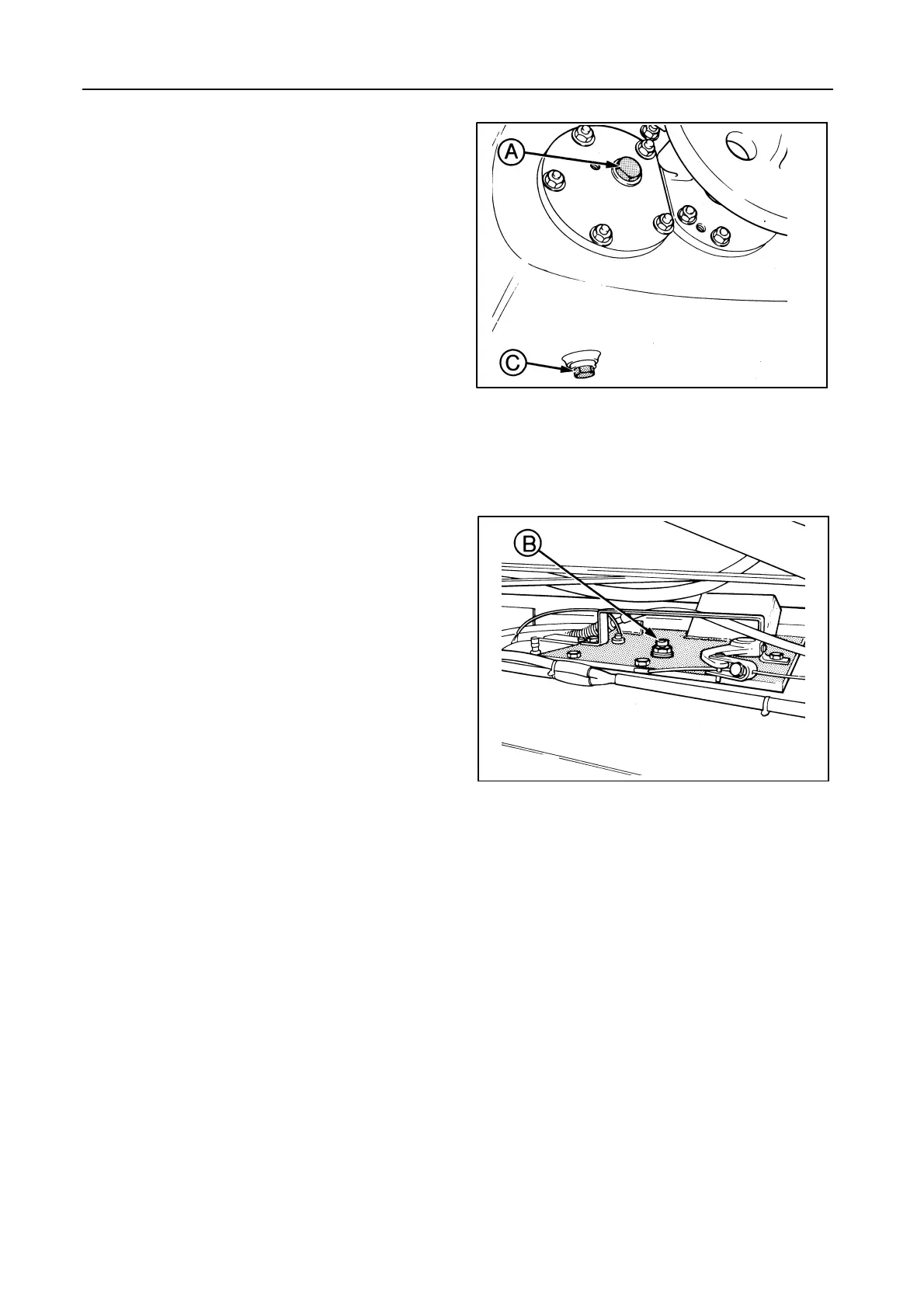

TRACTION GEARBOX -- Figures 57 and 58
Oil level
With the combine standing on a level surface, the oil
level should reach plug A on the right-hand side.
If necessary, add gear oil through the filler/breather
plug B after removing the gearbox cover plate.
Oil change
S After the first 100 operating hours
S After 200 operating hours
S Thereafter, every 400 operating hours or annu-
ally.
Drain the oil through plug C.
Plug C is fitted with a magnet which should be cleaned
at every oil change.
Gearbox capacity
15 litres
Oil specification
Use AMBRA HYPOIDE 90 gear oil (ref. NH520A) or
an oil meeting the following specification:
S API GL5 or MIL-L 2105D
S Viscosity grade: SAE 80W90
42800
57
42810
58
