FIELD OPERATION
4-54
With the rpm mode selected, the following information
will be provided:

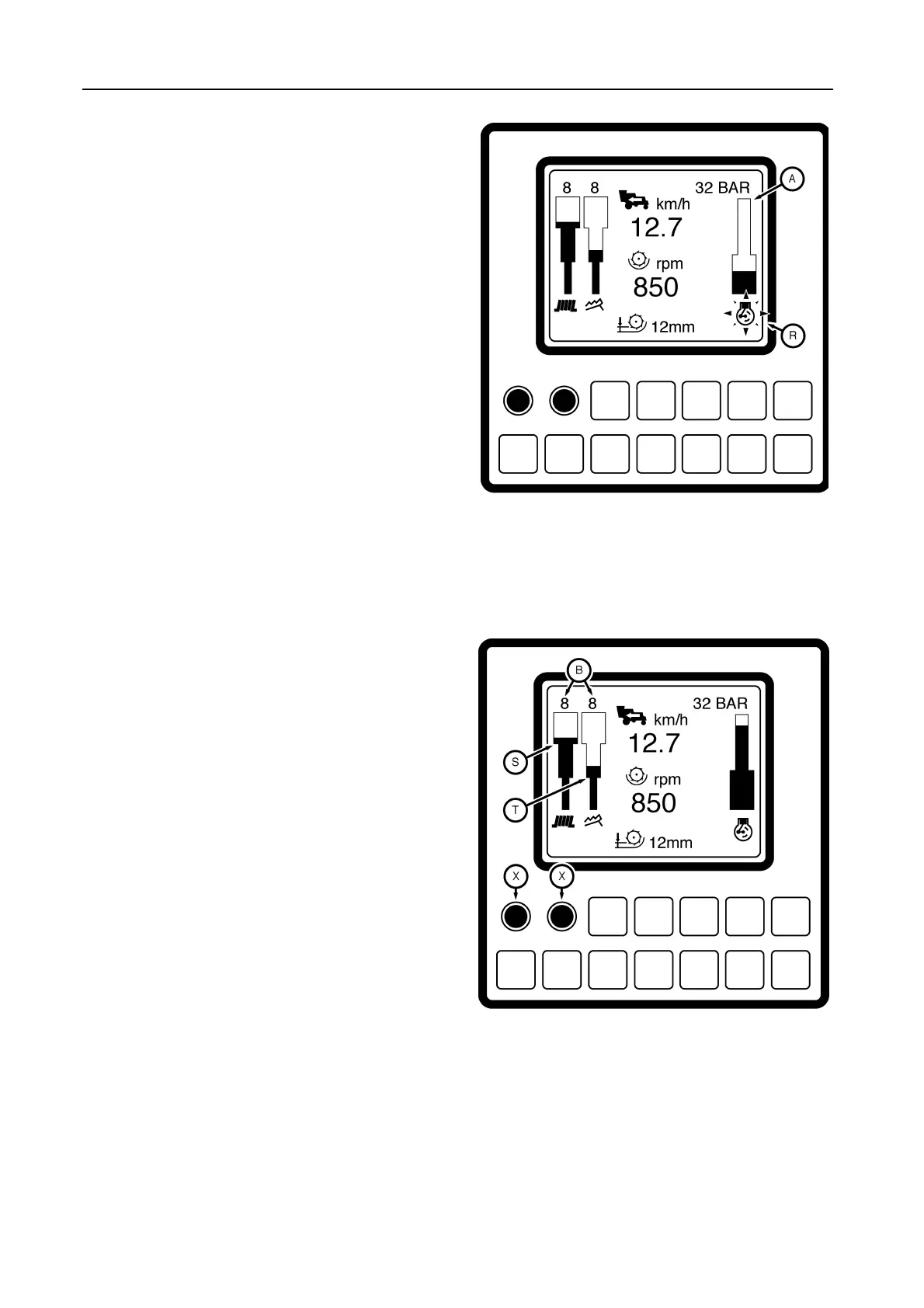

3.1 Engine load bargraph A -- Figure 89
The bargraph segments light up proportionally to the
measured engine speed. All segments light up with
the engine at maximum speed (without load).
Maximum engine speed minus 5%:
Engine bargraph lower segment and symbol R start to
blink.
Maximum engine speed minus 10%:
Engine symbol R blinks and bargraph is empty.
3.2 Performance bargraph B -- Figure 90
Two bargraphs are provided for displaying the sieves
S and straw walker T losses.
The bargraph segments light up proportionally to the
losses and to the potentiometer X setting (sensitivity).
The potentiometer setting is displayed from 1 to 10
above the bargraphs: the higher the number, the high-
er the sensitivity.
To set the combine performance monitor, proceed as
follows:
1. Engage the threshing and the header drive.
2. Engage the first or second gear and enter the
crop.
3. Adjust the reel height, the reel fore and aft s etting
and the reel speed, according to the type of crop
being harvested.
89
90
54770
54771
