FIELD OPERATION
4-22

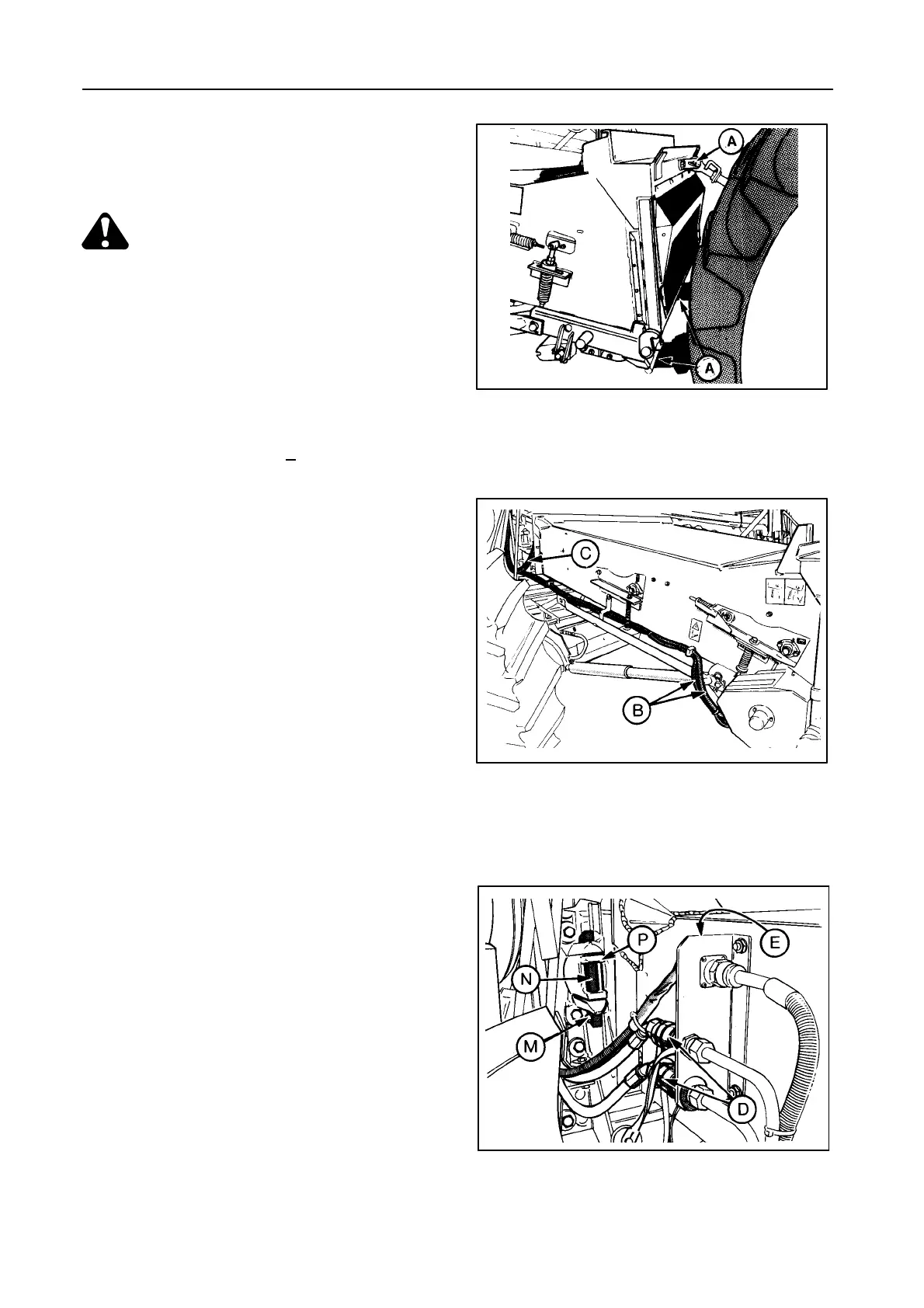

STRAW ELEVATOR REMOVAL -- Figures 26 to 33
CAUTION:
Be careful when doing this job: the straw
elevator weighs about 1,000 kg.
The tractor must have a lift capacity of
minimum 2,500 kg at approximately 1 m
behind the linkages.
The straw elevator is fitted with 3 attaching points A
which facilitate removal of the straw elevator by
means of a tractor (minimum +
74 kW/100 hp).
Proceed as follows:
1. Install the middle attaching point A, located behind
the left-hand straw elevator guard, onto the straw
elevator.
2. Models TX62-63
Disconnect the electric cables B from the reverser
motor and remove it from the straw elevator.
Disconnect the earth connection C.
Models TX64
PLUS
-65
PLUS
-66-67-68-68
PLUS
Disconnect the hydraulic quick-couplers D of the
hydraulic reverser and plug E on the left-hand
side.
Disconnect the hydraulic quick-couplers F of the
lateral float system [if installed] on the right-hand
side.
3. Disconnect electric wire S of the header height
sensor.
4. Attach the straw elevator to the tractor with the
three attaching points A and secure the pins with
cotter pins.
30262
26
27
55008
28
55009
