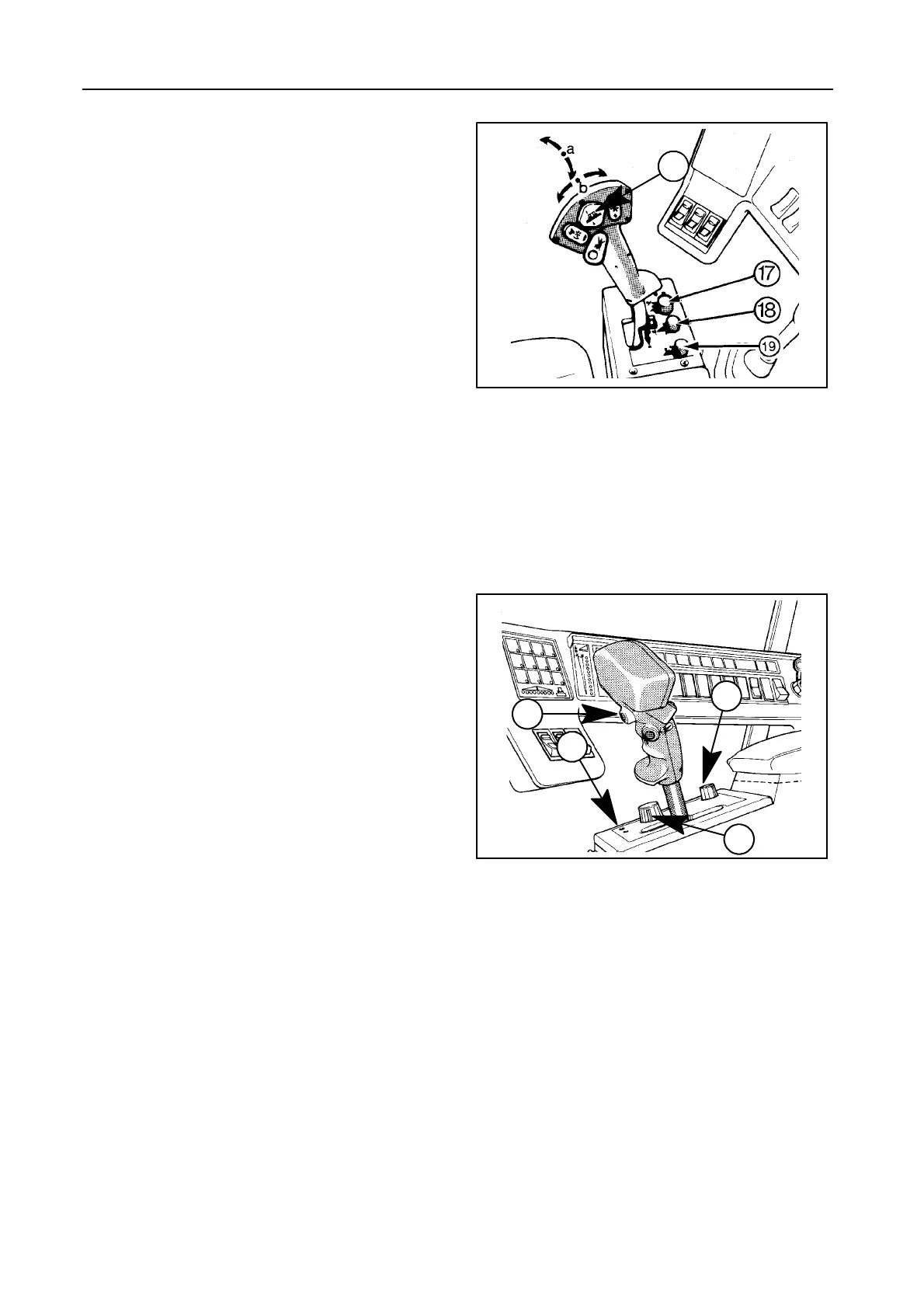

Calibration of the ground level -- Figures 8 and 9
1. Start the engine.
2. Select the transport position with selector switch
17.
3. Lower and lift the header with the header height
control rocker switch 13 at least once.
4. Lower the header to ground level by simulta-
neously pressing header height control rocker
swith 13 and automatic header height control
switch 20. Hold both switches until the green
autodiagnostic indicator 22 has blinked 5 times.
Calibration of the maximum cylinder pressure --
Figures 8 and 9
1. Start the engine.
2. Select the transport position with selector switch
17.
NOTE:
Steps 1 and 2 need not be carried out if this cal-
ibration is performed immediately after the
ground level calibration.
3. Lower and lift the header with the header height
control rocker switch 13 at least once.
4. Lower the header just above ground level (the
header must not touch the ground).
NOTE:
The lowering of the header must be the last op-
eration.
5. Push and hold the automatic header height switch
20 for 10 seconds without touching other switches
until the green autodiagnostic indicator 22 has
blinked 8 times.
