SECTION 5
5-19

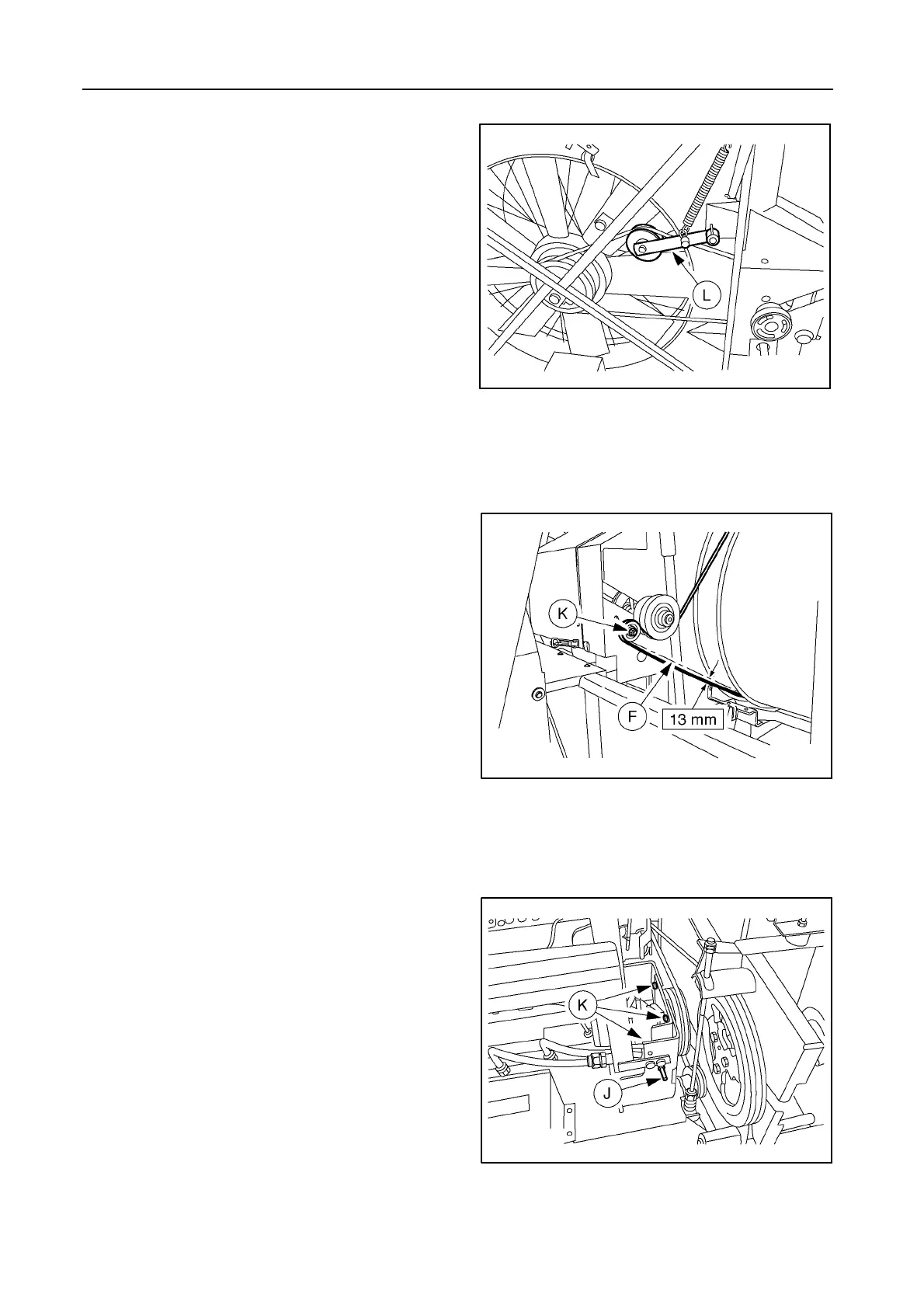

24 COOLING FAN DRIVE BELT -- Figure 36
Spring-loaded idler L.
No adjustment needed.
25 ROTAR Y DUST SCREEN DRIVE BELT --
Figure 37
Applying a force F = 1.8 to 3.5 N at the midpoint of
the belt should deflect the belt 13 mm.
Loosen nut K to adjust.
26 HYDRAULIC PUMP DRIVE BELT -- Figure 38
Correct belt tension:
Models TX62-63-64
PLUS
-65
PLUS
-66-67
Applying a force of 3 daN at the midpoint of the
belt should deflect the belt 7.6 mm.
Loosen three nuts K and adjust with threaded rod
J.
Models TX68-68
PLUS
Applying a force of 2.7 daN at the midpoint of the
belt should deflect the belt 6.7 mm.
Loosen three nuts K and adjust with threaded rod
J.
54739
36
37
38
54740
54741
