FIELD OPERATION
4-108
DIFFERENTIAL LOCK [if installed]
When operating in slippery or muddy ground condi-
tions the differential lock may be engaged to provide
better traction.
If one of the traction wheels starts spinning, immedi-
ately depress the differential lock pedal. Now both
traction wheels will turn at the same speed. Keep the
pedal depressed until the machine has passed the
obstacle.
Release the pedal to disengage the differential lock.
IMPORTANT:
S Do not make turns with the differential lock
pedal depressed.
S It may be necessary to slow down the com-
bine to allow engagement of the differential
lock.
STRAW CHOPPER [if installed]

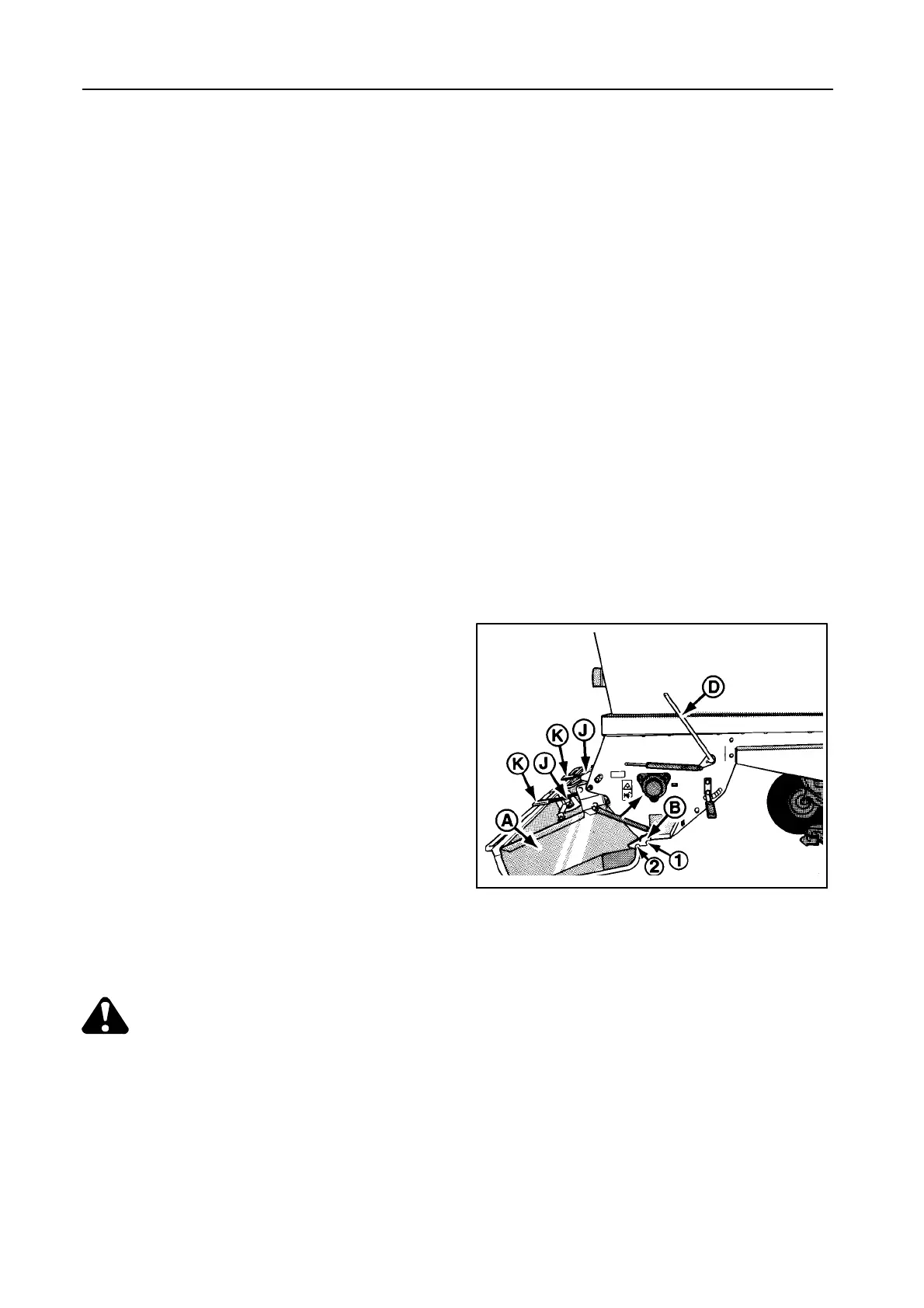

TRANSPORT POSITION -- Figures 161 and 162
For road transport, the chopper chute A must remain
in the operating position as shown, except when a
header trailer is attached. In this case, chute A should
be swung up completely.
To swing chute A up, disengage latch B, swing chute
A completely up as shown and lock latch C.
CHOPPING POSITION -- Figures 161 and 162
1. To change to the operation position, disengage
latch C, swing chute A down and secure it with
latch B.
CAUTION:
Never swing the chute up during or just
after operation as the chopper continues
to rotate for considerable time.
Never engage the chopper with the chute
swung up!
30351
161
